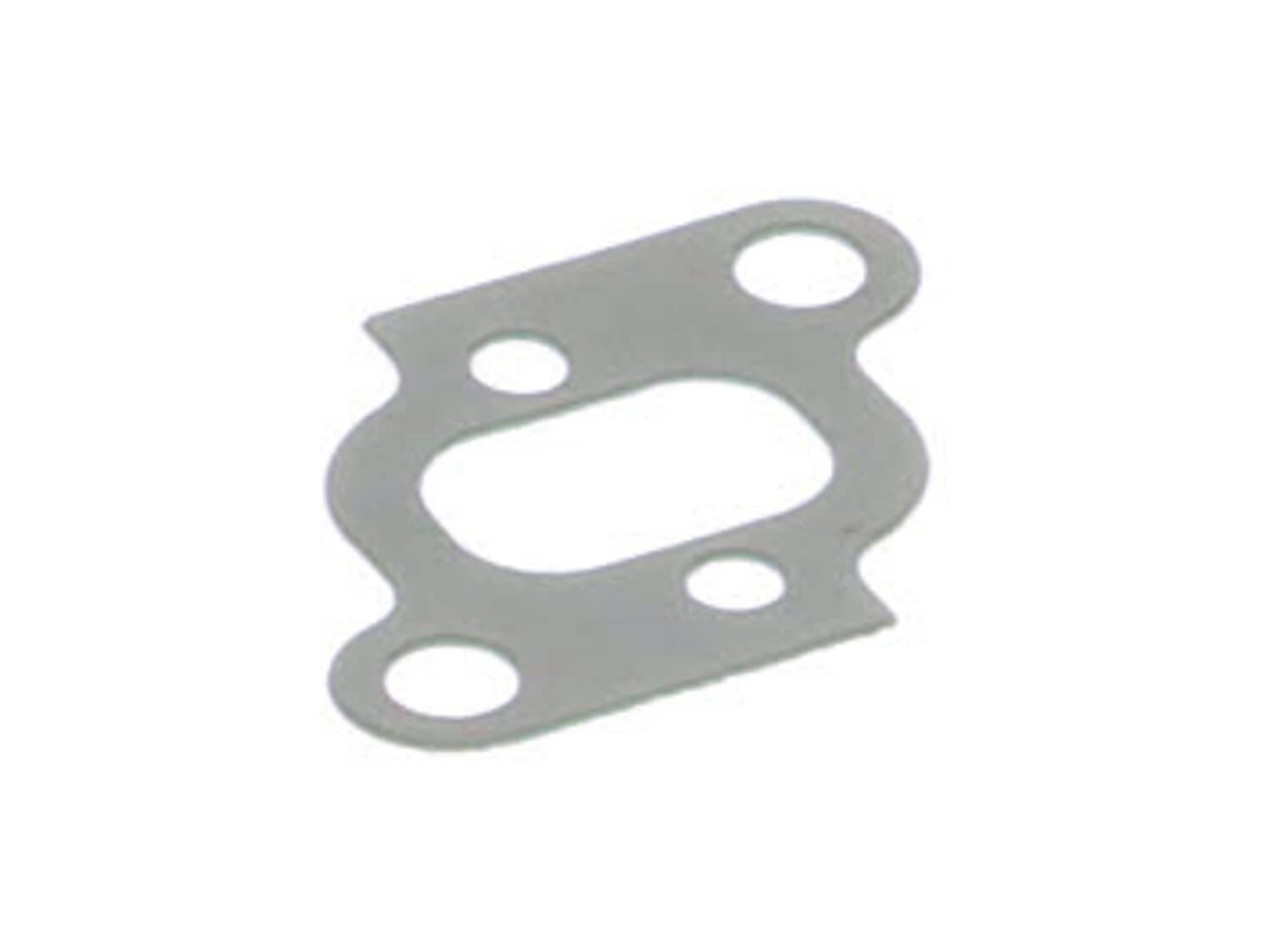

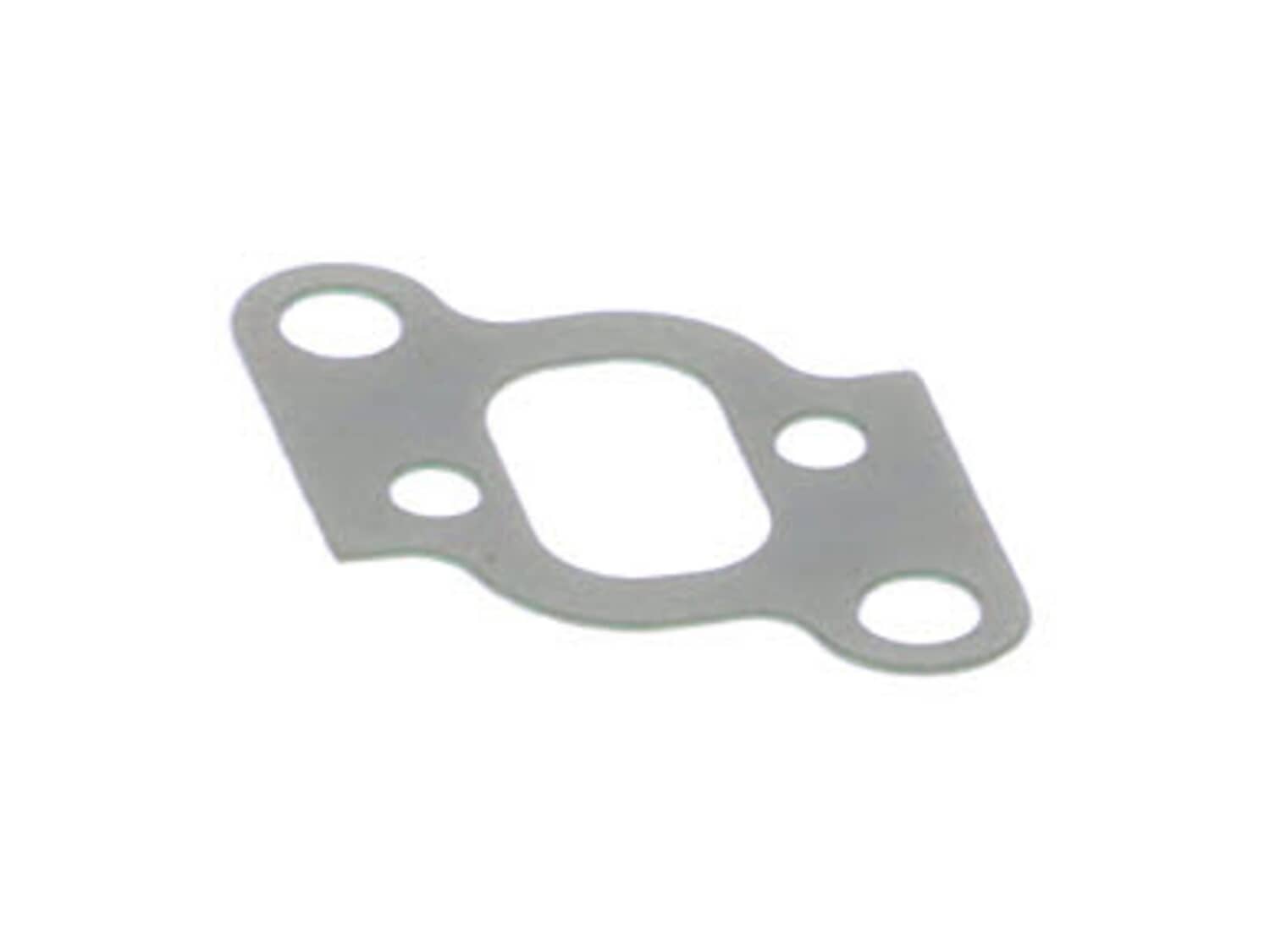

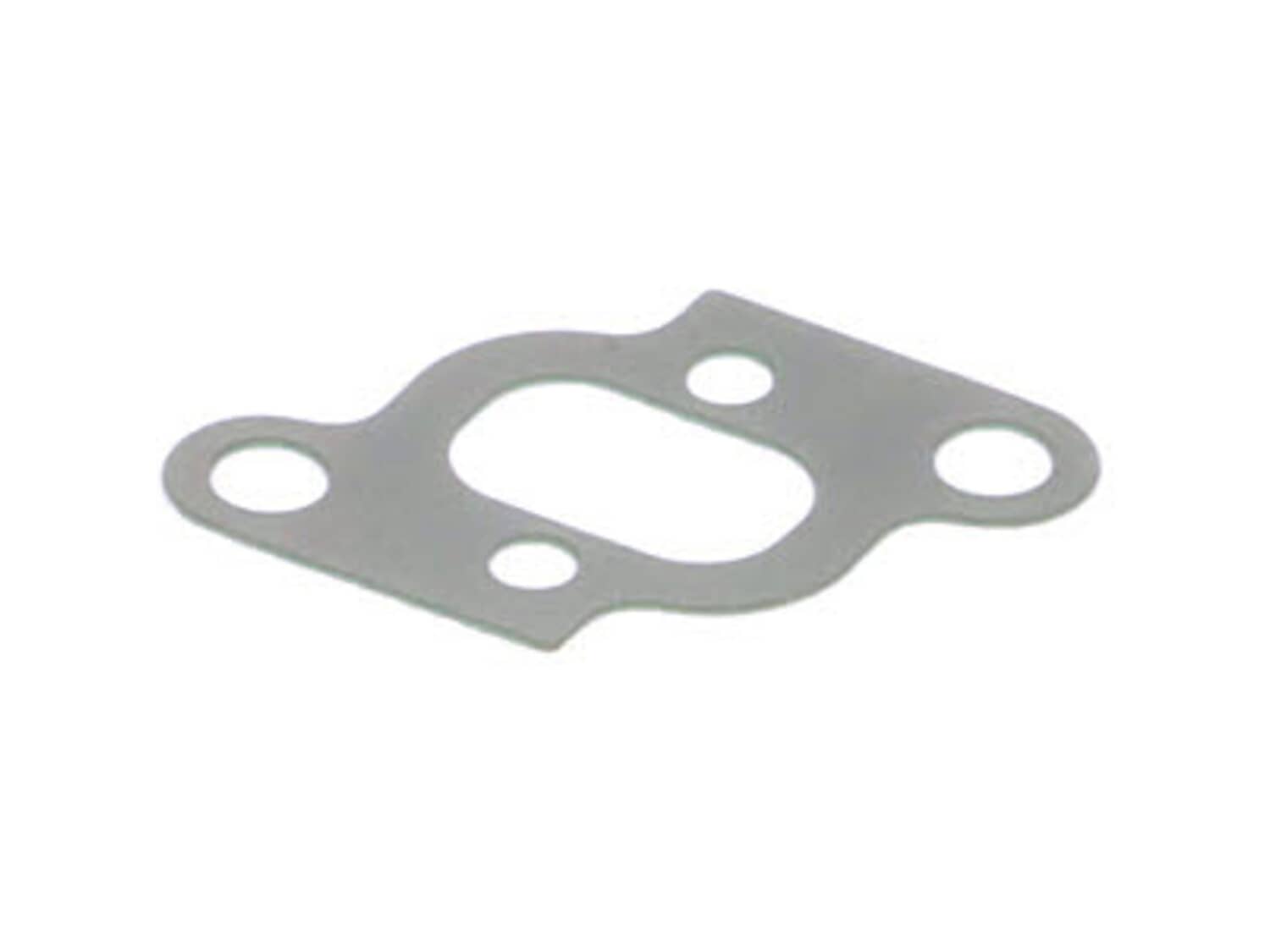

It is an authentic manufacturer sourced replacement part designed for use with on Echo lawn and garden equipment. This carburetor intake gasket helps to create an air tight between an insulator and the engine. Over time gaskets tend to deteriorate and crack eventually requiring replacement. It is made from durable composite material and it is sold individually.
1. Removed the old spark plug, gap new one, and installed.
2. Removed throttle cable from carb., and disconnected both kill wires from the pull-a-part connector.
3. Removed air filter cover, threw out the old air filter, removed two screws holding air filter base.
4. Removed fuel and return lines from the carburetor, and
... Read more removed the carburetor from the trimmer.
5. Removed 4 screws holding primer bulb, threw the old bulb out. Removed single screw from plastic primer spacer, and discarded gaskets underneath. Removed both screws underneath carburetor the for fuel pump, cleaned and blew out carburetor thoroughly with carb. cleaner, and compressed air. Installed new gaskets from kit, installing everything in reverse order. During cleaning, made sure to clean mini screen of all contaminants. installed new primer bulb.
6. Removed 3 screws holding fuel tank protector, and 2 screws holding fuel tank on. Fully drained fuel tank. Removed rubber grommet, and used it as a template for new fuel lines and grommet. Trimmed fuel lines to original lengths, reinstalled breather to new pipe, installed new fuel filter, and carefully installed new fuel lines in new grommet. Then carefully installing grommet into fuel tank. Installed tank in reverse order, followed by installing carburetor in reverse order, with new air filter installed.
7. Filled fuel tank with fresh fuel, primed carburetor, and started trimmer.
8. Runs excellent, like new, with no more fuel leaks!! Ready to take my Echo SRM-230, and trim up some weeds!! It\'s been about 5 years or more, and I couldn\'t be anymore pleased to see it running like new.
I removed the air case and air filter. Then I removed the carburetor and gasket. I took off the intake gasket and replaced it with the new one. Put the gasket and new carburetor on and the new air filter with air case. Screwed then mm in tight and was done in just 10 minutes of my time. Filled the gas tank up and cranked it. It started on
... Read more my second pull. Thanks for the help ereplacement. I have used ereplacementparts.com for all my parts on my equipment.
Took the carburetor apart and replaced the needle, the springs, the diaphragm and the gaskets. Replaced the spark plug, the fuel filter, and the air filter.
Remove the air filter assembly, remove the carburetor, then remove the insulator. Remove and replace the intake gaskets from behind and in front of the insulator. Install the carburetor and the air cleaner case and bracket. Install the new air filter. Then put the air filter cover back on.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8857617
Manufacturer Part Number: 13001055930
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
