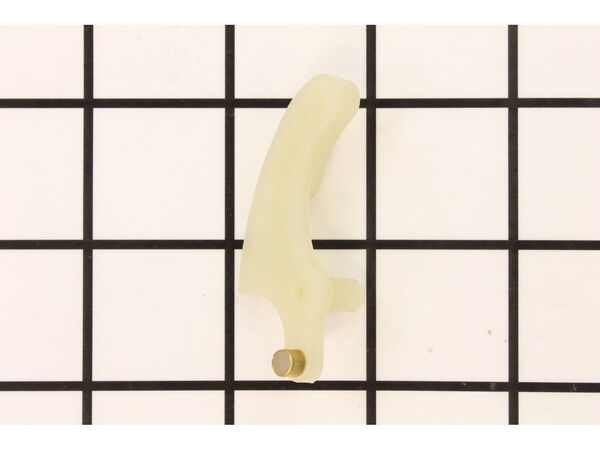

This is a genuine Black and Decker replacement part, it is sold individually. The purpose of the 479751-00S Lever, is to regulate the amount of line that is fed from the auto-feed spool. This part has a tendency to wear out often. It is advised to have an extra one on hand.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked fine
The part worked fine on my weed trimmer. Shipping and arrival were slow because of the Post Office.
Lenny - August 20, 2019
Verified Purchase
★★★★★
★★★★★
Perfect
Perfect fit in my weed eater. Watched their YouTube video and learned how to install it. Much better than buying a whole new machine. Another plus was that the package arrived faster than expected.
Guest - August 26, 2019
Verified Purchase
★★★★★
★★★★★
Weedeater part.
Happy with my part.
Guest - July 5, 2021
Verified Purchase
★★★★★
★★★★★
Very smooth transaction.
The part did the job.
Guest - April 2, 2022
Verified Purchase
★★★★★
★★★★★
Auto Line Feed for Black and Decker Weed Hog
My Weed Hog fed a large amount of line all at once causing a huge tangle. After doing a little research, I determined it might be a little lever under the spool. eReplacementParts had it in stock. (Black and Decker had discontinued it!) It was easily inserted and it works like a new machine. Thanks!
Guest - June 10, 2019
Verified Purchase
★★★★★
★★★★★
Nice
Part was affordable, shipped fast, and most importantly, fit.
Guest - July 21, 2023
Verified Purchase
★★★★★
★★★★★
Grass trimmer
Correct part, easy repair , happy son in law
Guest - August 25, 2019
Verified Purchase
★★★★★
★★★★★
This part did not fit.
This part was not the proper part for my machine however after calling back to correct the issue you took care of it and sent me the proper part this one fits perfectly appreciate your assistance. Excellent customer service.
Robert - August 18, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Just take off the spool holder and snap out the broken one and snap in the new one . Very easy repair. You may need a screw driver to help push the old one out.
I removed the nylon string spool. The broken lever was right there. It just popped off when I pried it slightly with a screwdriver. The new lever just snapped in. Now it works like new.
Refer to parts diagram/list http://www.ereplacementparts.com/black-and-decker-gh1000-type-grass-hog-trimmeredger-parts-c-4167_9518_9532.html
1. Remove the spool housing cap (figure 21, part of the Outer Housing and Cap Upgrade Kit 90540850).
2. Remove the line spool (figure 20, Replacement Spool DF-080; this item is o
... Read moreut of sequence at the bottom of the parts list).
3. Locate the line feed lever (figure 18, Lever 479751-00S) in the spool housing (figure 16, Spool Housing 90529876) and check that it moves freely.
5. If the lever does not move freely, or is not held in place, or is missing, remove the spool housing and check for debris.
6. Remove the spool housing screw (figure 19, Blade Bolt 371954-01, a 10-32 NF x 19/32\" [20 mm] pan-head T25 torx / 1/4\" slotted screw).
7. The spool housing pulls straight off the drive head at the end of the flex shaft, but the fit is very tight. Several methods may be used to remove it:
a. Gently wiggle the housing off of the flex shaft drive head (figure 13, Flex Shaft; the drive head is just visible protruding from the housing).
b. Use two small pry bars, with equal pressure, on opposites sides of the spool housing bottom, and lever against the flex shaft housing (figure 13).
c. Warm the spool housing, in the sun or with hot towels or hot water, and use methods a and b as needed.
d. Insert and bottom-out a 10-32 NF x 2-1/8\" screw in the flex shaft drive head screw hole, hold the spool housing firmly, and tap the screw head
lightly with a hammer to separate the spool housing from the flex shaft drive head.
8. Once the spool housing is removed from the flex shaft housing and drive head, check for debris. You may find pieces of the line feed lever pivot
arm barbs, which can be seen protruding from the bottom of the spool housing (figure 16). You may find pieces of vegetation or other debris
which may have contributed to the destruction of the line feed lever pivot arm barbs.
9. After removing any debris and thoroughly cleaning both housings with a stiff brush, install a new lever, if needed. Reinstall the spool housing.
10. The fit between the flex shaft drive head and the spool housing is very tight. Four wide lobes, at the base of the drive head, must be aligned with
indentations on the spool housing. The lobes have very sharp edges; the tight fit and rotating shaft make re installation a challenge. The following
tips may help in the attempt to reinstall the spool housing:
a. Lubricate the flex shaft drive head and the spool housing.
b. Cool the flex shaft drive head, with liquid air (from an upside-down can of blow-off), and warm the spool housing.
c. Ease the three sharp edges, of each of the 4 lobes at the base of the flex shaft drive head, with a rotary tool and a small abrasive wheel.
d. Combinations of all the above.
11. Reinstall the spool housing screw, a loaded line spool and the spool housing cap.
1. Dis-assemble spool head assembly of trimmer to identify repair parts needed.
2. Order replacement parts (Found easily on ereplacementparts.com)
3. Install new parts
Note - Ereplacement parts .come had complete parts diagrams which made it very easy to order the parts needed. I wouldn\'t have repaired this grass
... Read more trimmer without it.
1. Removed cap to mower line spool at bottom of the trimmer.
2. Removed line spool.
3. Pulled out the broken lever that allows the line spool to work like a ratchet.
4. Placed the new lever into the mounting slot.
5. Replaced the line spool.
6. Replaced the cap to the line spool.
Used a screw driver to pop out the old string feed control lever and pushed in the new one. Took maybe 5 minutes. I had thought there was a small spring involved that was missing, but NO. Just pushed in the new control lever and \"presto\". . . works like new!
Did you find this story helpful?
Thank you for voting!
The old lever broke and no one locally carried parts
Removed line spool by unscrewing central screw and pulling off spool, then popped out lever by prying under it with a long screwdriver. Popped in replacement lever, and replaced spool and screw.
Lever was a little harder to pop put than I anticipated, and I could see no visible difference between the old and new levers, but the weed
... Read more eater is now feeding line at the appropriate rate.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11926585
Manufacturer Part Number: 479751-00S
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
