9988586-1-M-MTD-649-04020-0638-Handle Asm-horse
Part Location Diagram of 649-04020-0638 MTD Handle Asm-horse
See part F-11 in the diagram
( Grid squares measure 1x1 inch )
9988586-1-S-MTD-649-04020-0638-Handle Asm-horse Part Location Diagram of 649-04020-0638 MTD Handle Asm-horse

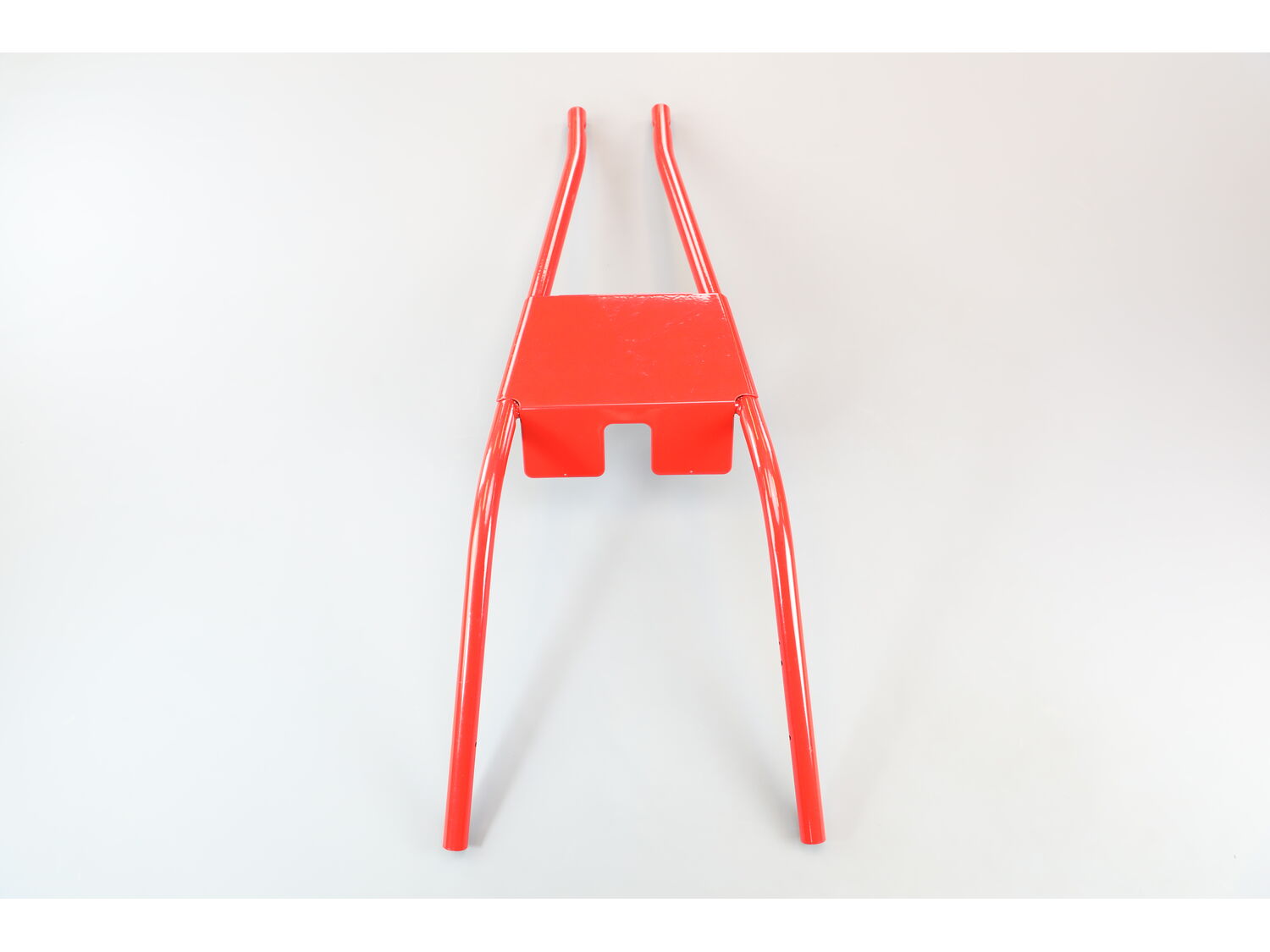

Handle Asm-horse 649-04020-0638

Manufactured by:
MTD
ERP Number:
ERP9988586
Part Number:
649-04020-0638
Original Equipment Manufacturer ?
$327.38
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Troy-Bilt
This part works with the following products:
  • Tiller
Part# 649-04020-0638 replaces these:
649-04020, GW-2717010P,

Model Cross Reference

This part works with the following models:
ERP Number: ERP9988586
Manufacturer Part Number: 649-04020-0638
Brand Model Number Description
Troy-Bilt 1173135 Tiller - 1173135 - Tillers Brushcutters And Pruners
Troy-Bilt 1173385 Tiller - 1173385 - Tillers Brushcutters And Pruners
Troy-Bilt 21A-682J063 Tiller - Troy-Bilt Tiller Model 21A-682J063/2002 (21A682J063/2002, 21A 682J063/2002) Parts
Troy-Bilt 21A-682J066 Tiller - Troy-Bilt Tiller Model 21A-682J066 (21A682J066, 21A 682J066) Parts
Troy-Bilt 21A-682J766 Tiller - Horse Roto-Tiller
Troy-Bilt 21A-682P766 Tiller - Horse Tiller
Troy-Bilt 21A-683F766 Tiller - Troy-Bilt Tiller Model 21A-683F766/2005 (21A683F766/2005, 21A 683F766/2005) Parts
Troy-Bilt 21AE682L063 Tiller - Big Red RotoTiller
Troy-Bilt 21AE682L066 Tiller - Troy-Bilt Tiller Model 21AE682L066 Parts
Troy-Bilt 21AE682L766 Tiller - Big Red Tiller
Troy-Bilt 21AE683F766 Tiller - Troy-Bilt Tiller Model 21AE683F766/2005 Parts
Troy-Bilt 21AE683G766 Tiller - Troy-Bilt Tiller Model 21AE683G766/2005 Parts
Troy-Bilt 21AE686N063 Tiller - Troy-Bilt Tiller Model 21AE686N063 Parts
Troy-Bilt 21AE686N766 Tiller - Troy-Bilt Tiller Model 21AE686N766/2004 Parts
Troy-Bilt 513754 Tiller - 513754 - Tillers Brushcutters And Pruners
Troy-Bilt 513760 Tiller - 513760 - Tillers Brushcutters And Pruners
Handle Asm-horse
$ 327.38
Special Order
✖
