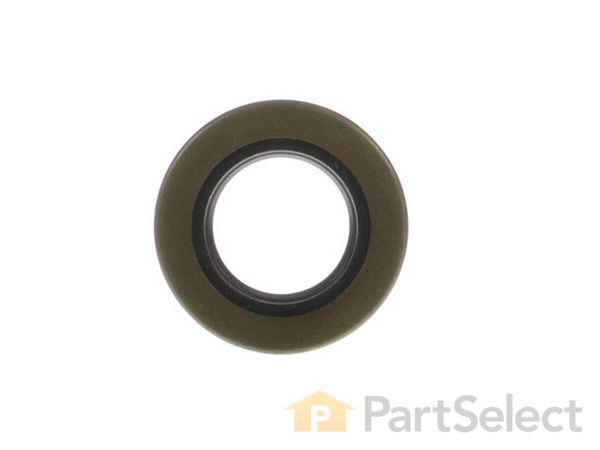

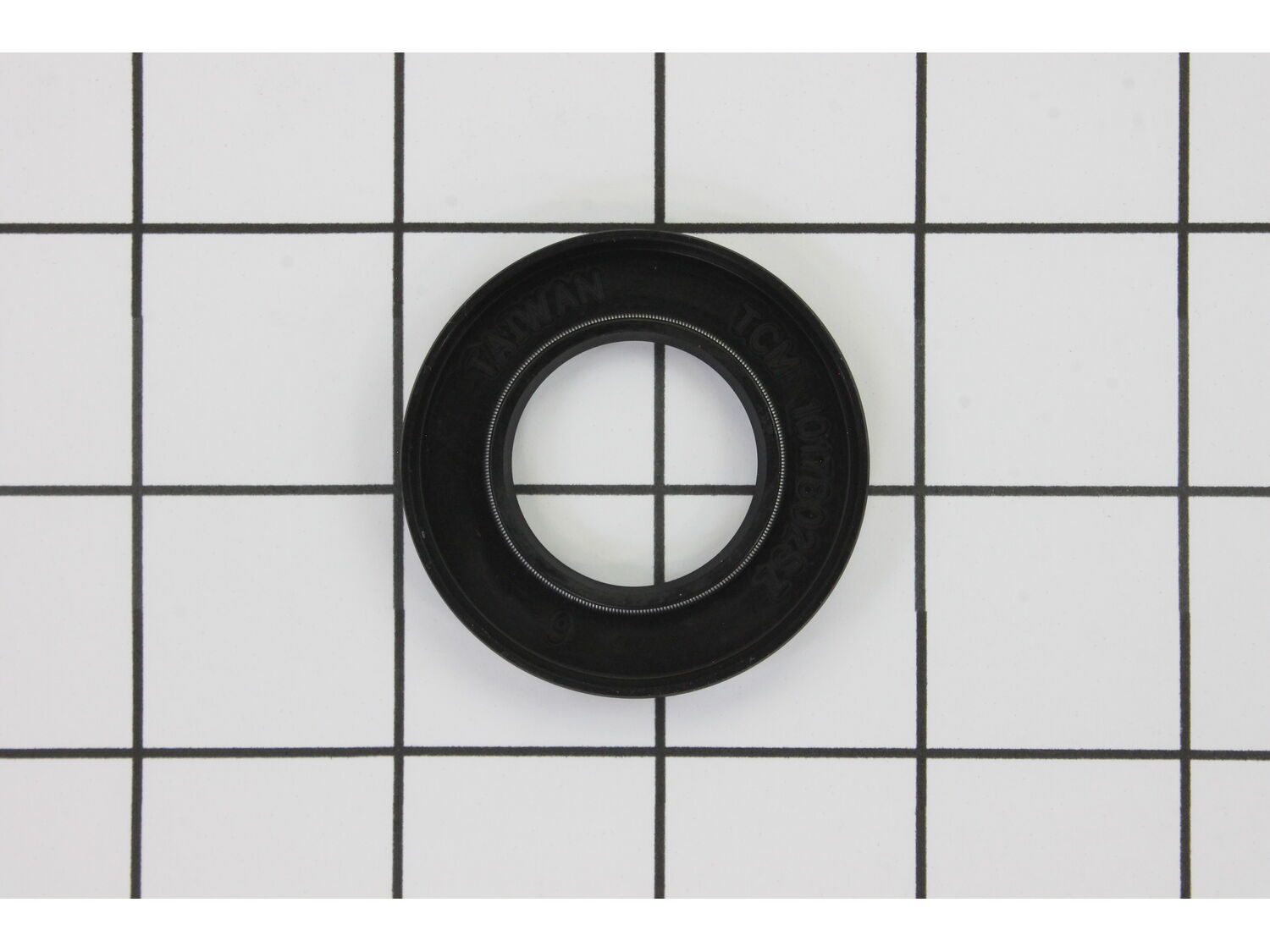

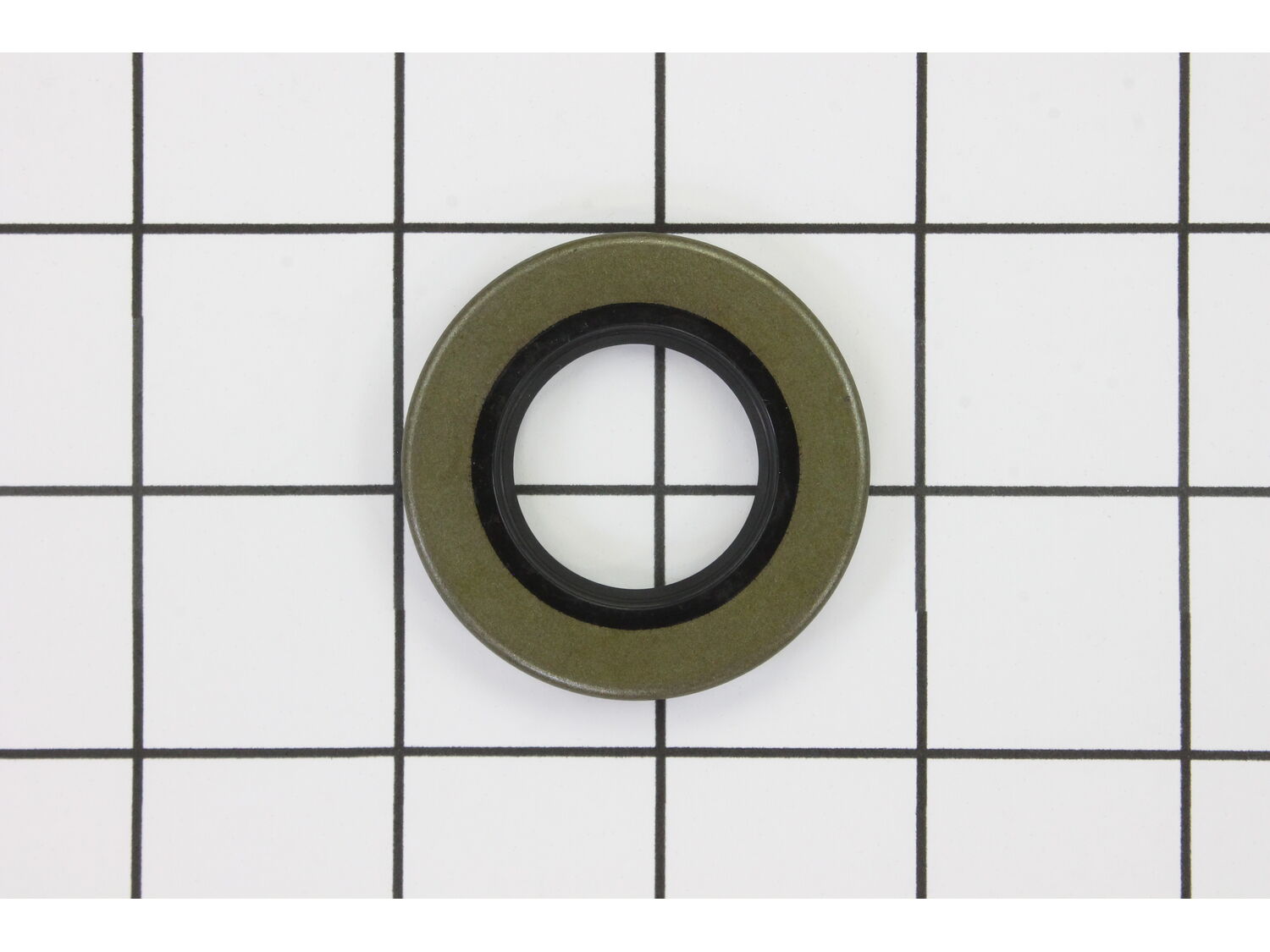

It is a genuine item that is supplied by the original equipment manufacturer for use with Ariens tillers. This special part helps to provide a tight seal for the bearing, unfortunately, over time it will wear out, may get damaged or lost eventually requiring a replacement. Please make sure to refer to the owners manual and the appropriate diagrams of your model for the correct location and application of this hardware. Keep in mind this high-quality seal is made of durable materials and is sold individually.
1. Removed engine, replaced carburetor, muffler, head gasket, plug, kill lever, dip stick: sandblasted & painted with engine paint
2. Removed wheels, tires: sandblasted rims, replaced axle seals: repainted & mounted new tires
3. Removed shields and tines, replaced hinge rod on lower deflector shield: sandblasted and painted
... Read moreindividual pieces, reassembled
4. Pulled gearcase sheave, removed engine mount, replaced input shaft seal, upper and rear gearcase gaskets: sandblast and painted
5. Built new attachment for V-belt cover, replaced V-belt idler pulley, made rubber handles for tine engagement arm and clutch handle
6. Re-assembled entire unit with all new stainless bolts, washers & nuts
Read less
Did you find this story helpful?
Thank you for voting!
Replace bearings and seals in tine shaft.
bob from fergus falls, Minnesota
1 personfound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Tines were difficult to remove from shaft. Had to torch of the left inner tine assy. Once the tines were off the shaft, bearings and seals were easy to install.I I then machined a new tine pipe and welded the original tines to it ,drilled some holes for bolts. Everything now works like new!
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8797434
Manufacturer Part Number: 05605200
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
