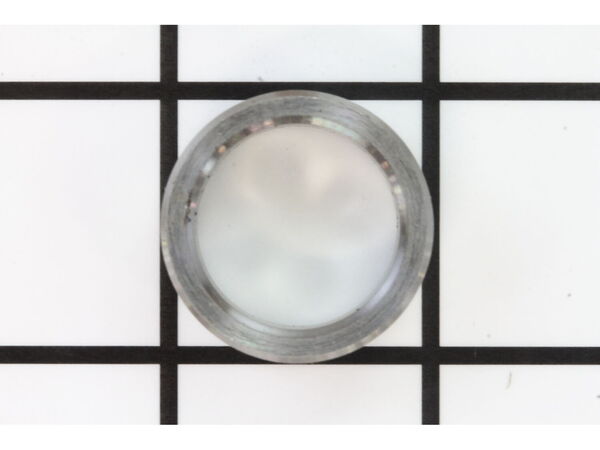

8772176-1-M-Ariens-00108100-Spacer Bushing .99 X .75 X .50
Part Location Diagram of 00108100 Ariens Spacer Bushing .99 X .75 X .50
See part C-26 in the diagram

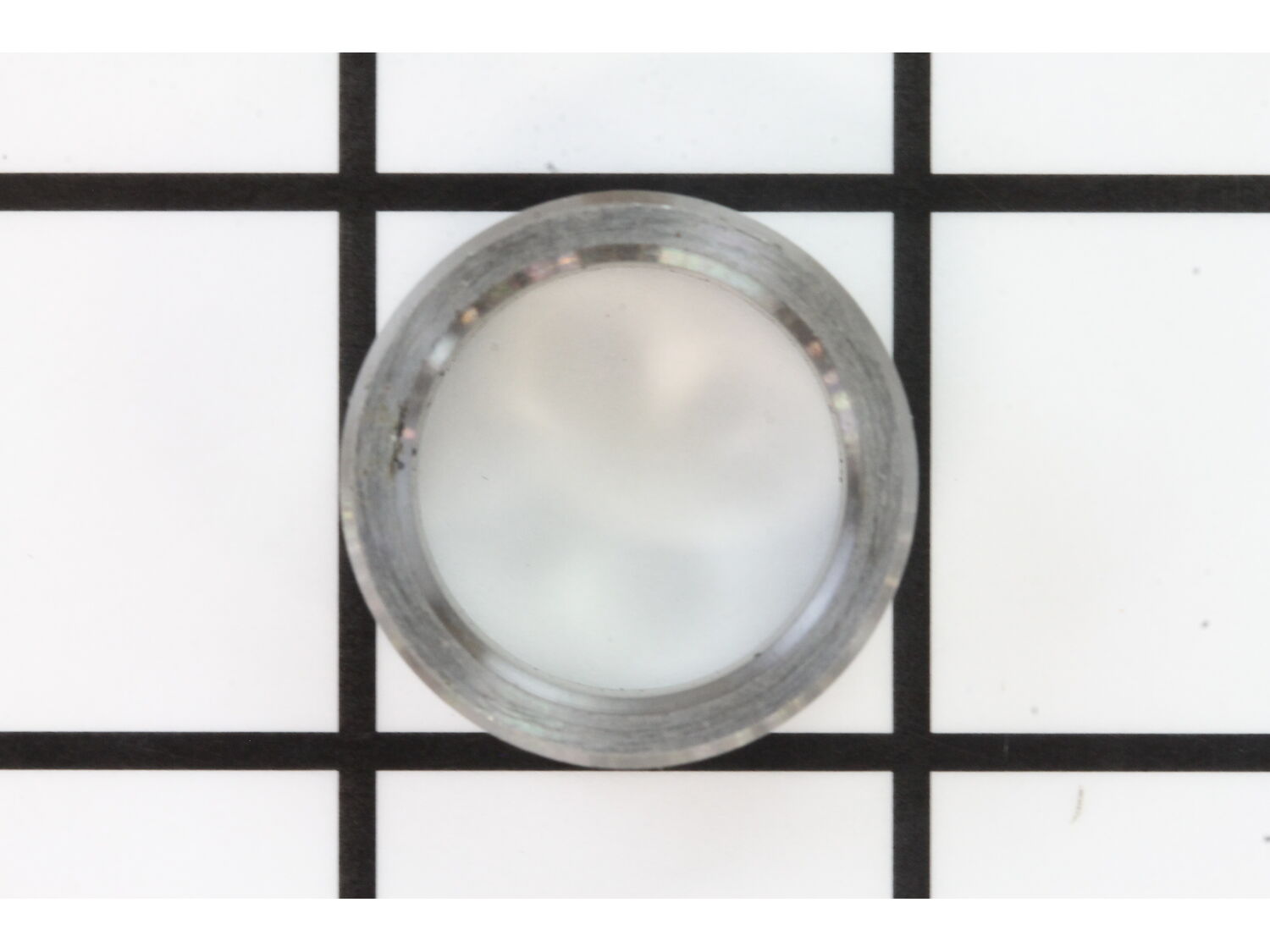

( Grid squares measure 1x1 inch )
8772176-1-S-Ariens-00108100-Spacer Bushing .99 X .75 X .50 Part Location Diagram of 00108100 Ariens Spacer Bushing .99 X .75 X .50

Spacer Bushing .99 X .75 X .50 00108100

Manufactured by:
Ariens
ERP Number:
ERP8772176
Part Number:
00108100
Original Equipment Manufacturer ?
$72.31
Special Order

Difficult

More than 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Ariens
This part works with the following products:
  • Tiller

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Difficult

More than 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Rebuilt 1983 Ariens rear-tine Tiller

Robert from Wilmington, North Carolina

1 person found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
07310800, 05605200, 00108100
1. Removed engine, replaced carburetor, muffler, head gasket, plug, kill lever, dip stick: sandblasted & painted with engine paint
2. Removed wheels, tires: sandblasted rims, replaced axle seals: repainted & mounted new tires
3. Removed shields and tines, replaced hinge rod on lower deflector shield: sandblasted and painted individual pieces, reassembled
4. Pulled gearcase sheave, removed engine mount, replaced input shaft seal, upper and rear gearcase gaskets: sandblast and painted
5. Built new attachment for V-belt cover, replaced V-belt idler pulley, made rubber handles for tine engagement arm and clutch handle
6. Re-assembled entire unit with all new stainless bolts, washers & nuts
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP8772176
Manufacturer Part Number: 00108100
Brand Model Number Description
Ariens 901007 Tiller - RT5020 Rocket 5hp 20" Rear Tine Tiller
Ariens 901008 Tiller - RT7020 7hp 20" Rear Tine Tiller
Ariens 901009 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901010 Tiller - RT7020 7hp 20" Rear Tine Tiller
Ariens 901011 Tiller - RT5020 5hp 20" Rear Tine Tiller
Ariens 901012 Tiller - RT7020 7hp 20" Rear Tine Tiller
Ariens 901013 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901015 Tiller - SRT5020 5hp 20" Rear Tine Tiller
Ariens 901016 Tiller - RT5020 5hp 20" Rear Tine Tiller
Ariens 901017 Tiller - RT7020 7hp 20" Rear Tine Tiller
Ariens 901018 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901019 Tiller - RT6020 6hp 20" Rear Tine Tiller
Ariens 901024 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901027 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901400 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901418 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens 901429 Tiller - RT8020 8hp 20" Rear Tine Tiller
Ariens RT8020 Tiller - 8hp Kohler, 20-Inch Tiller
Spacer Bushing .99 X .75 X .50
$ 72.31
Special Order
✖
