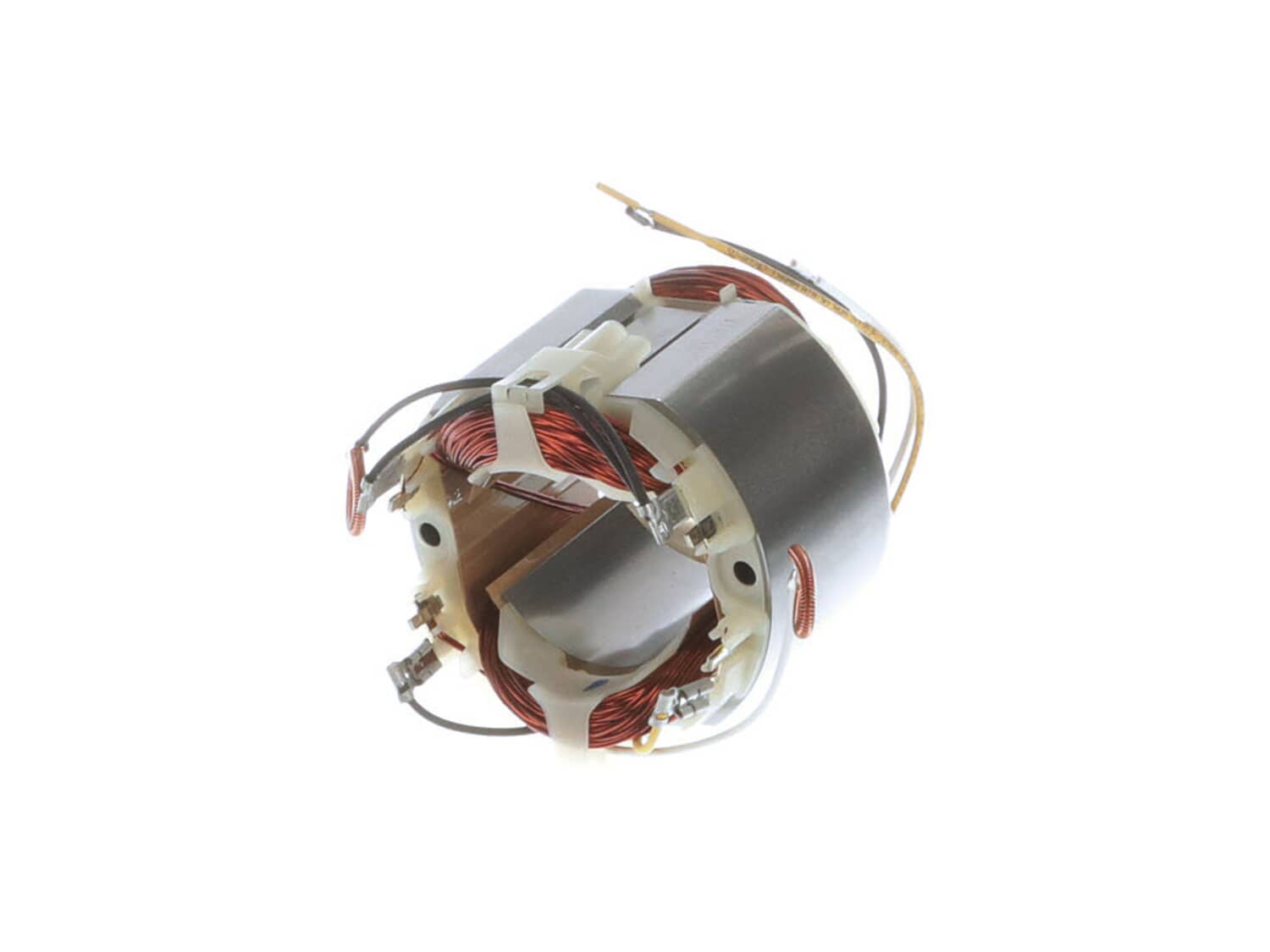

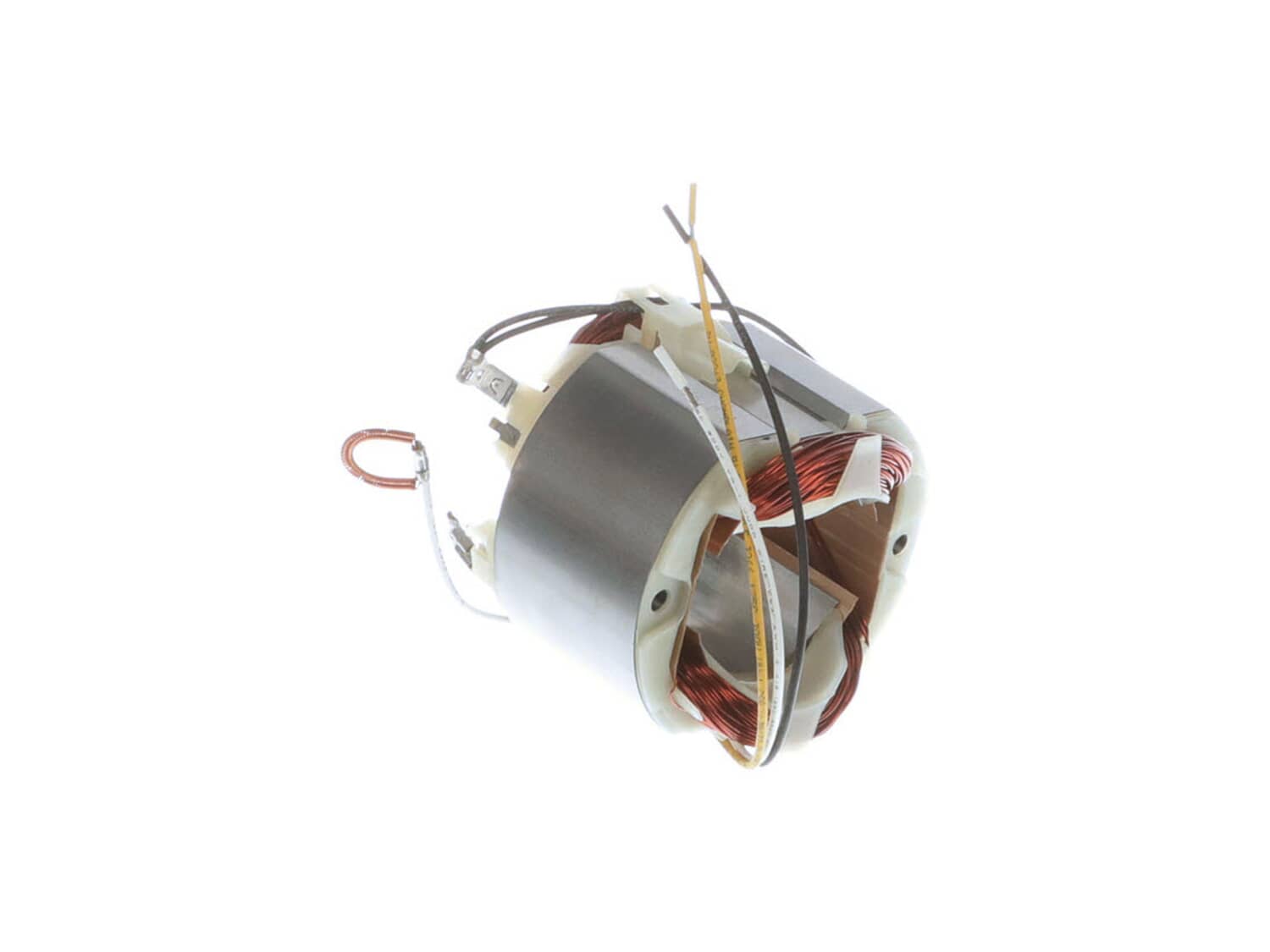

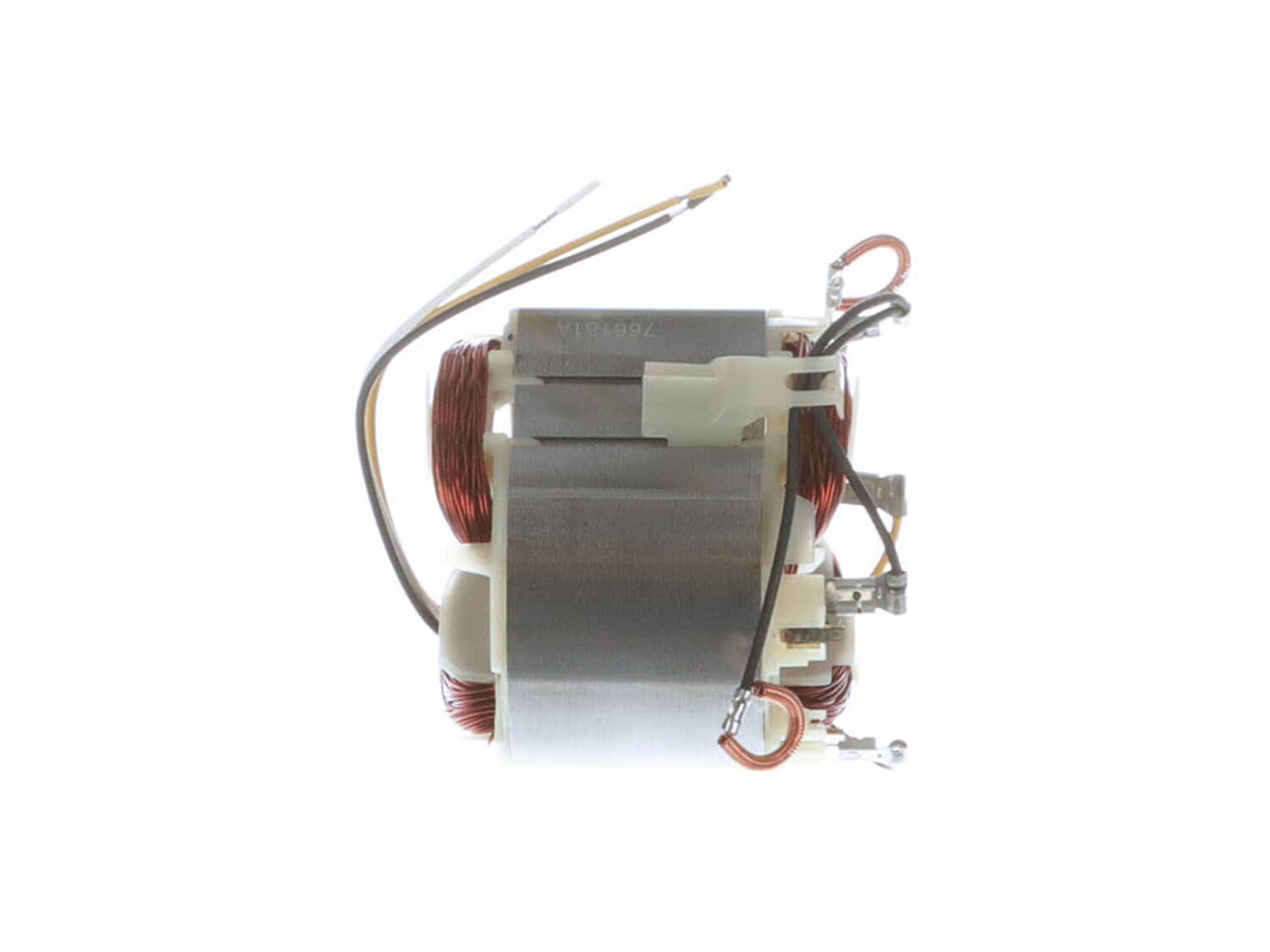

This field assembly is an authentic replacement part sourced from the original manufacturer for use with Makita table saws. The field is one of two main parts of an electric motor. The field is a tube with magnets lining the inside, and it houses the armature. When the field is powered it creates a magnetic field allowing the armature to spin creating physical energy. The field can be overheated if the saw is overloaded. The wires in the field can burn causing a short. It is recommended to inspect the armature when servicing the field, because damage to the field can cause damage to the armature. The field is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
very easy repair
o changed this part along with a stator and I think I completed it in 30 minutes. very easy.
Mike - June 25, 2019
Verified Purchase
★★★★★
★★★★★
Item arrived quickly with everything needed
It was basically everything needed for a Mikita table saw motor replacement. The parts went it perfectly and the saw was up and running after about 30 minutes effort. I’ll order from eReplacments again.
Guest - May 10, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Turned the table saw upside down. Removed the motor from the gear housing. Removed the brushes from the motor. Pulled the armature from out of the motor housing. Removed the baffle plate. Removed the screws hold the field. Removed the springs from around the brush holders, noting which color, went to each brush holder. Made a wiring diagr
... Read moream of the rest of the wires and disconnected them. Used a rubber mallet to tap on the outside of the motor housing to release the field. Reassembled in reverse order. And installed the new brushes.
Read less
Did you find this story helpful?
Thank you for voting!
table saw stator and field assembly shorted out due to too small of extension cord used and heavy load on saw.
1.watched ereplacement video on removing the stator
2.disassembled the motor
3.unclipped brush coils off the field assembly
4.installed field assembly coils over brush housing
5.reclipped brush coil wiring to field assembly
6.installed field assembly and stator
reconnected field assembly wiring with new
... Read more pinch connectors on side of motor housing
7.reinstalled motor housing bolts
8.turned saw back on
it would be helpful if you created a video for installing the field assembly like you did the stator
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10152624
Manufacturer Part Number: 596181-1
