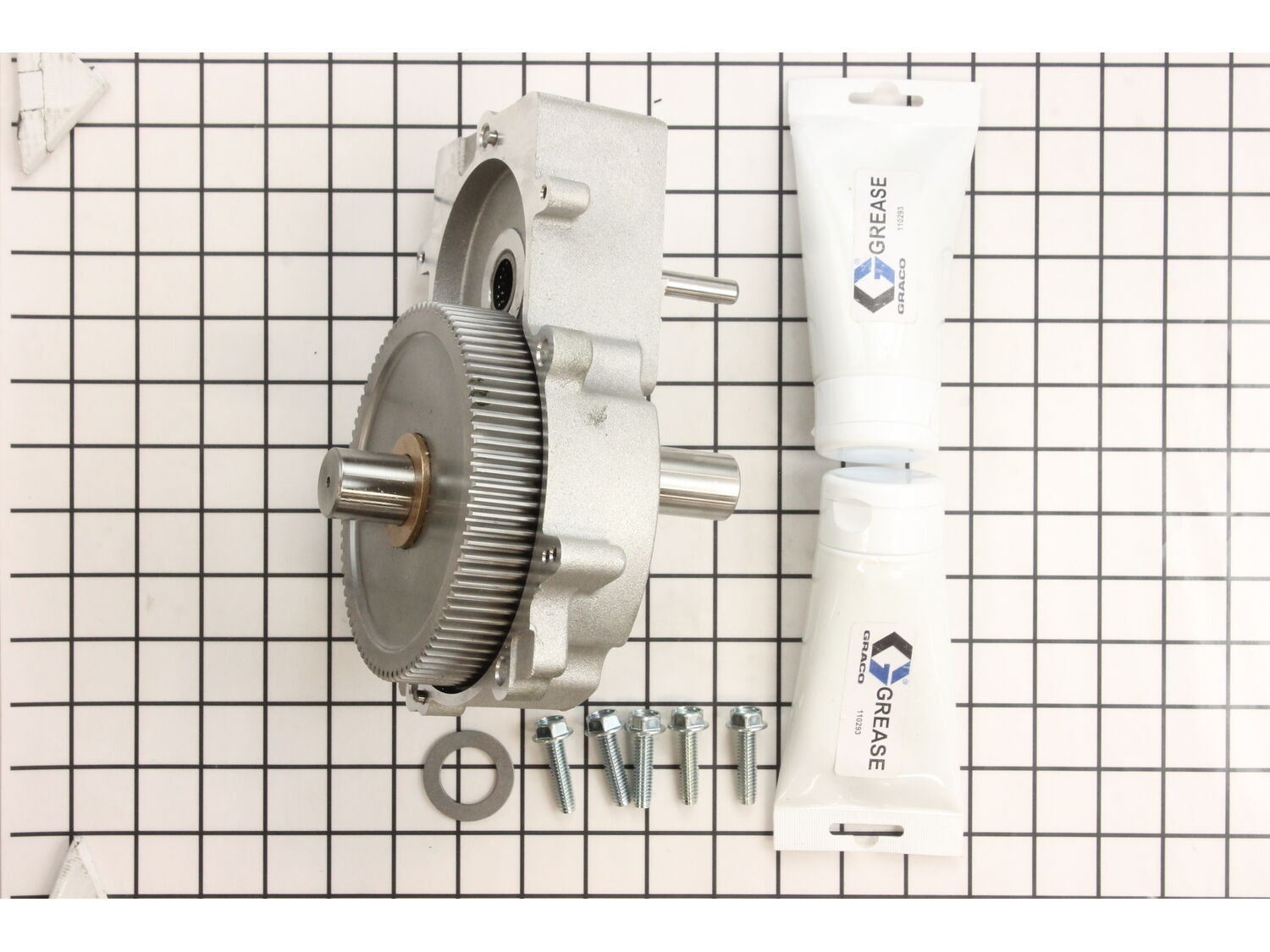

10161869-1-M-Graco-287294-Housing, Drive
Part Location Diagram of 287294 Graco Housing, Drive
See part A-90 in the diagram
( Grid squares measure 1x1 inch )
10161869-1-S-Graco-287294-Housing, Drive Part Location Diagram of 287294 Graco Housing, Drive

Housing, Drive 287294

Manufactured by:
Graco
ERP Number:
ERP10161869
Part Number:
287294
Original Equipment Manufacturer ?
$608.64
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Graco
This part works with the following products:
  • Sprayer
  • Paint Sprayer

Model Cross Reference

This part works with the following models:
ERP Number: ERP10161869
Manufacturer Part Number: 287294
Brand Model Number Description
Graco 1095 Sprayer - Max II Hi-Boy Sprayer
Graco 17E583 Paint Sprayer - Ultra Max Ii 1095 Standard Series Electric Airless Sprayer
Graco 17E589 Paint Sprayer - Ultra Max Ii 1595 Standard Series Electric Airless Sprayer
Graco 17E605 Paint Sprayer - Mark V Hd 3-In-1 Standard Series Electric Airless Sprayer
Graco 17E608 Paint Sprayer - Mark X Hd 3-In-1 Standard Series Electric Airless Sprayer
Graco 17E609 Paint Sprayer - Mark X Hd 3-In-1 Procontractor Series Electric Airless Sprayer
Graco 258727 Sprayer - Ultra Max II Electric 1095 Airless Sprayer
Graco 258728 Sprayer - Ultra Max Electric Hi-Boy Airless Sprayer
Graco 258883 Sprayer - Ultra Max II Electric 1095 Airless Sprayer
Graco 258884 Sprayer - Ultra Max Electric Hi-Boy Airless Sprayer
Graco 258886 Sprayer - Ultra Max II Electric 1095 Airless Sprayer
Graco 826130 Sprayer - Ultimate Max II Electric 1095 Airless Sprayer
Graco 826131 Sprayer - Ultimate Max Electric Hi-Boy Airless Sprayer
Housing, Drive
$ 608.64
Special Order
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
