Part Location Diagram of 15F097 Graco Pin, Pump
See part A-114 in the diagram

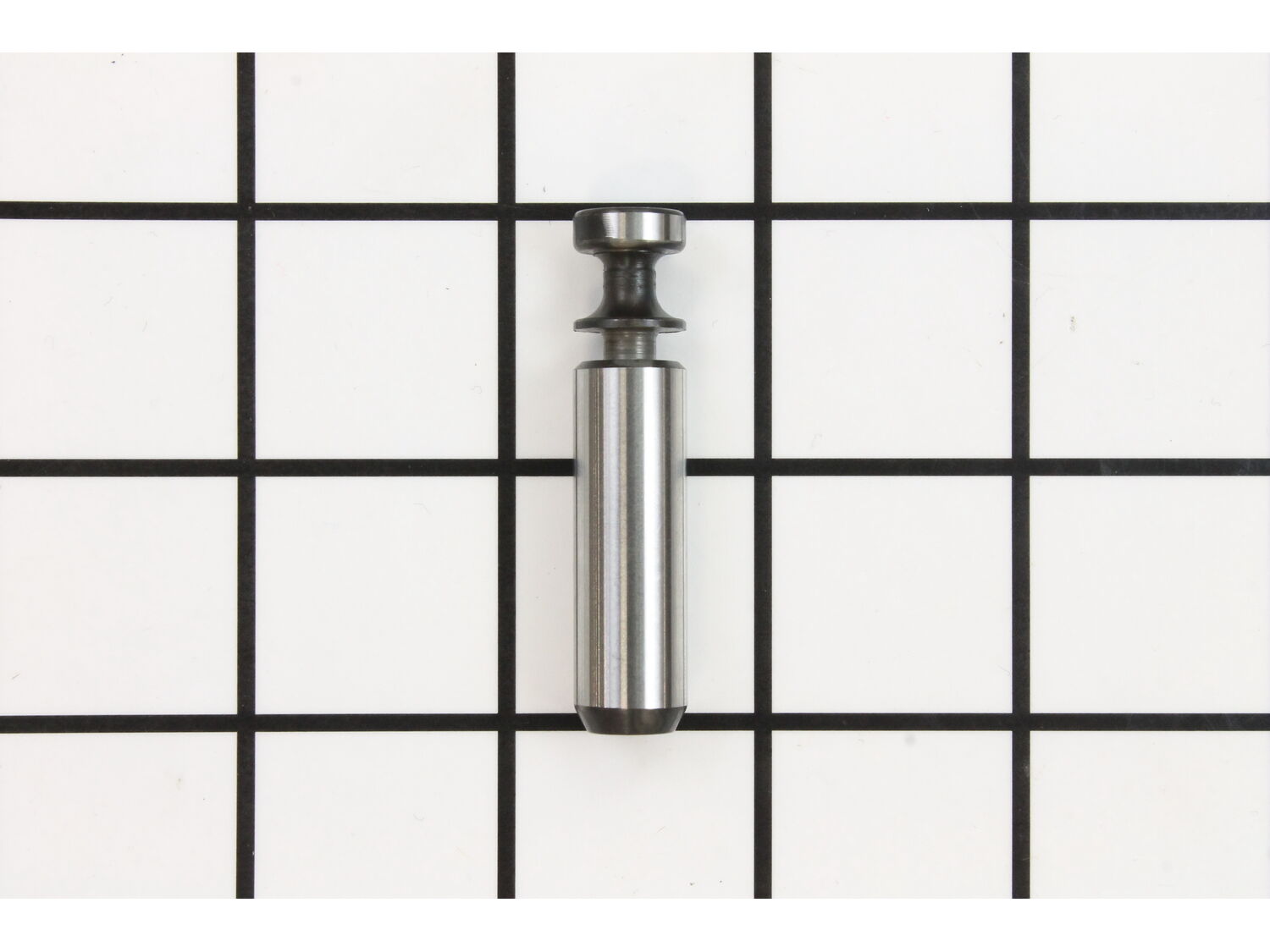

( Grid squares measure 1x1 inch )

Pin, Pump 15F097

Manufactured by:
Graco
ERP Number:
ERP10159313
Part Number:
15F097
Original Equipment Manufacturer ?
$34.45
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Graco
This part works with the following products:
  • Sprayer

Model Cross Reference

This part works with the following models:
ERP Number: ERP10159313
Manufacturer Part Number: 15F097
Brand Model Number Description
Graco 257369 Sprayer - HTX 2030 Paint Sprayer
Graco 7900 Sprayer - GMAX II Airless Hi-Boy Paint Sprayer
Graco 7900HD Sprayer - GMAX II Airless Hi-Boy Paint Sprayer
