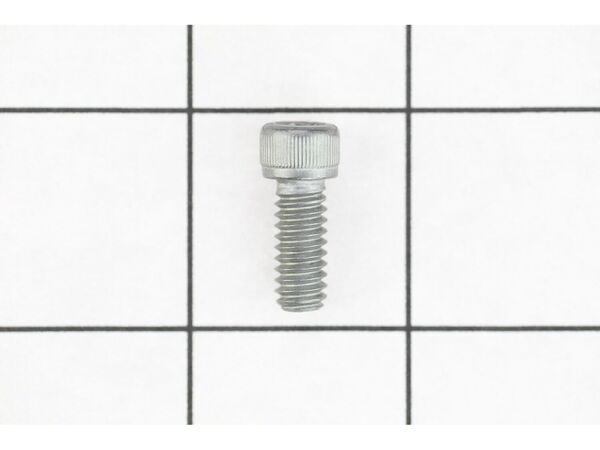

10157814-1-M-Graco-101682-Screw
Part Location Diagram of 101682 Graco Screw
See part 5 in the diagram

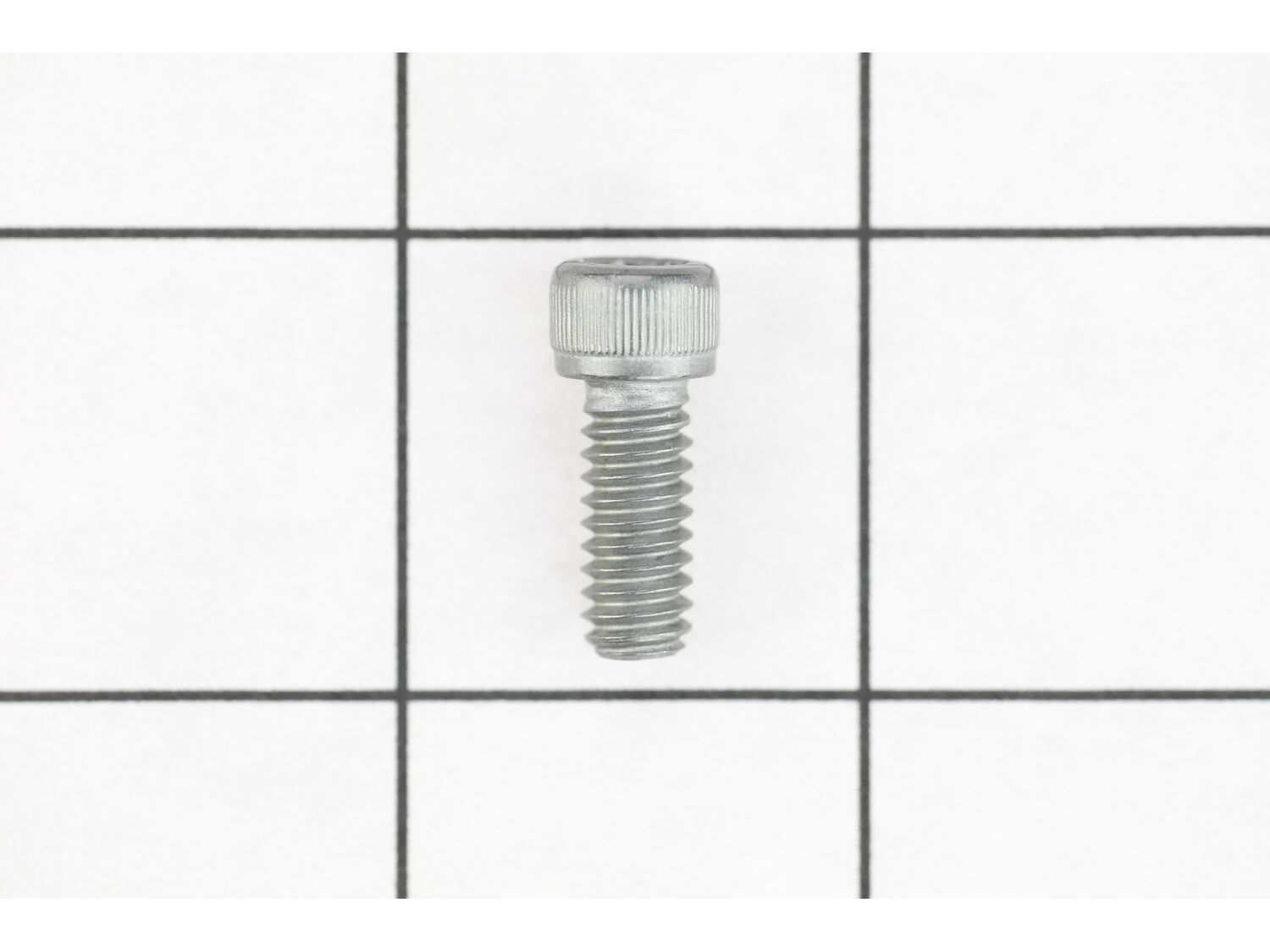

( Grid squares measure 1x1 inch )
10157814-1-S-Graco-101682-Screw Part Location Diagram of 101682 Graco Screw

Screw 101682

Manufactured by:
Graco
ERP Number:
ERP10157814
Part Number:
101682
Original Equipment Manufacturer ?
$43.10
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Graco
This part works with the following products:
  • Sprayer
  • Paint Sprayer

Model Cross Reference

This part works with the following models:
ERP Number: ERP10157814
Manufacturer Part Number: 101682
Brand Model Number Description
Graco 17E826 Paint Sprayer - Gmax Ii 3900 Standard Series Gas Airless Sprayer, Lo-Boy
Graco 17E827 Paint Sprayer - Gmax Ii 3900 Standard Series Gas Airless Sprayer, Hi-Boy
Graco 17E828 Paint Sprayer - Gmax Ii 3900 Procontractor Series Gas Airless Sprayer
Graco 17E829 Paint Sprayer - Gmax Ii 5900 Standard Series Gas Airless Sprayer, Lo-Boy
Graco 17E830 Paint Sprayer - Gmax Ii 5900 Convertible Standard Series Gas Airless Sprayer
Graco 17E831 Paint Sprayer - Gmax Ii 5900 Standard Series Gas Airless Sprayer, Hi-Boy
Graco 17E832 Paint Sprayer - Gmax Ii 5900 Procontractor Series Gas Airless Sprayer
Graco 17E833 Paint Sprayer - Gmax Ii 5900 Ironman Series Gas Airless Sprayer
Graco 17E834 Paint Sprayer - Gmax Ii 7900 Standard Series Gas Airless Sprayer, Lo-Boy
Graco 17E836 Paint Sprayer - Gmax Ii 7900 Standard Series Gas Airless Sprayer, Hi-Boy
Graco 17E837 Paint Sprayer - Gmax Ii 7900 Procontractor Series Gas Airless Sprayer
Graco 17E838 Paint Sprayer - Gmax Ii 7900 Ironman Series Gas Airless Sprayer
Graco 17E839 Paint Sprayer - Gmax Ii 5900 Hd 3-In-1 Standard Series Gas Airless Sprayer
Graco 17E840 Paint Sprayer - Gmax Ii 5900 Hd 3-In-1 Procontractor Series Gas Airless Sprayer
Graco 17E841 Paint Sprayer - Gmax Ii 7900 Hd 3-In-1 Standard Series Gas Airless Sprayer
Graco 17E842 Paint Sprayer - Gmax Ii 7900 Hd 3-In-1 Procontractor Series Gas Airless Sprayer
Graco 17E843 Paint Sprayer - Gmax Ii 7900 Hd 3-In-1 Ironman Series Gas Airless Sprayer
Graco 231-307 Sprayer - Ultra 600 Airless Paint Sprayer
Graco 231-315 Sprayer - Ultra 500 Airless Paint Sprayer
Graco 231-325 Sprayer - Ultra 600 Airless Paint Sprayer
Graco 231-346 Sprayer - Ultra Plus 600 Airless Paint Sprayer
Graco 231-348 Sprayer - Ultra Plus 600 Airless Paint Sprayer
Graco 231-356 Sprayer - Ultra Plus 600 Airless Paint Sprayer
Graco 231-358 Sprayer - Ultra Plus 600 Airless Paint Sprayer
Graco 248691 Sprayer - GMAX Convertible Airless Sprayer
Graco 248692 Sprayer - GMAX Convertible Airless Sprayer
Graco 248693 Sprayer - GMAX Convertible Airless Sprayer
Graco 248694 Sprayer - GMAX Convertible Airless Sprayer
Graco 248695 Sprayer - GMAX Lo-Boy Airless Sprayer
Graco 248696 Sprayer - GMAX Lo-Boy Airless Sprayer
