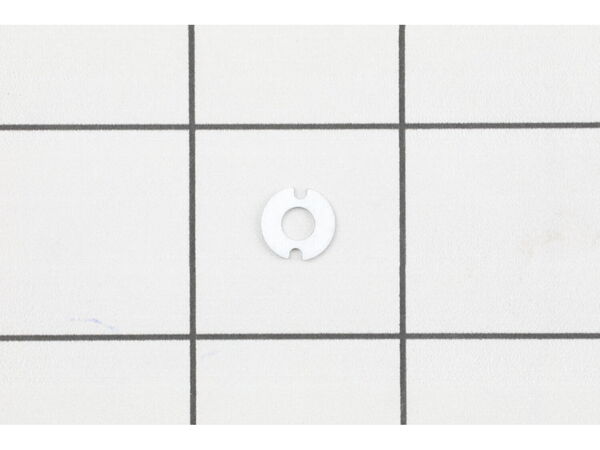

18248318-1-M-Shimano-1079U-Line Roller Plate

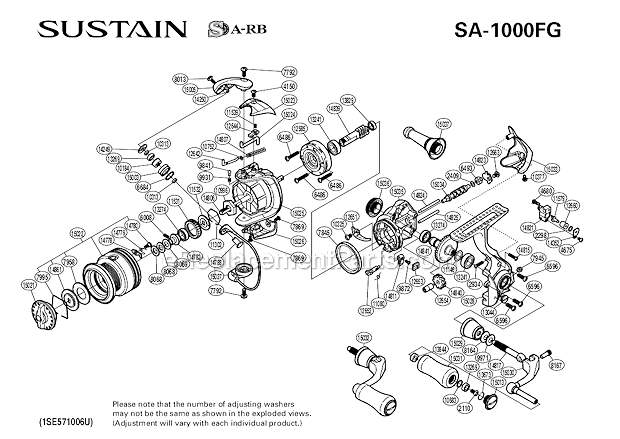

Part Location Diagram of 1079U Shimano Line Roller Plate
See part 14249 in the diagram
( Grid squares measure 1x1 inch )

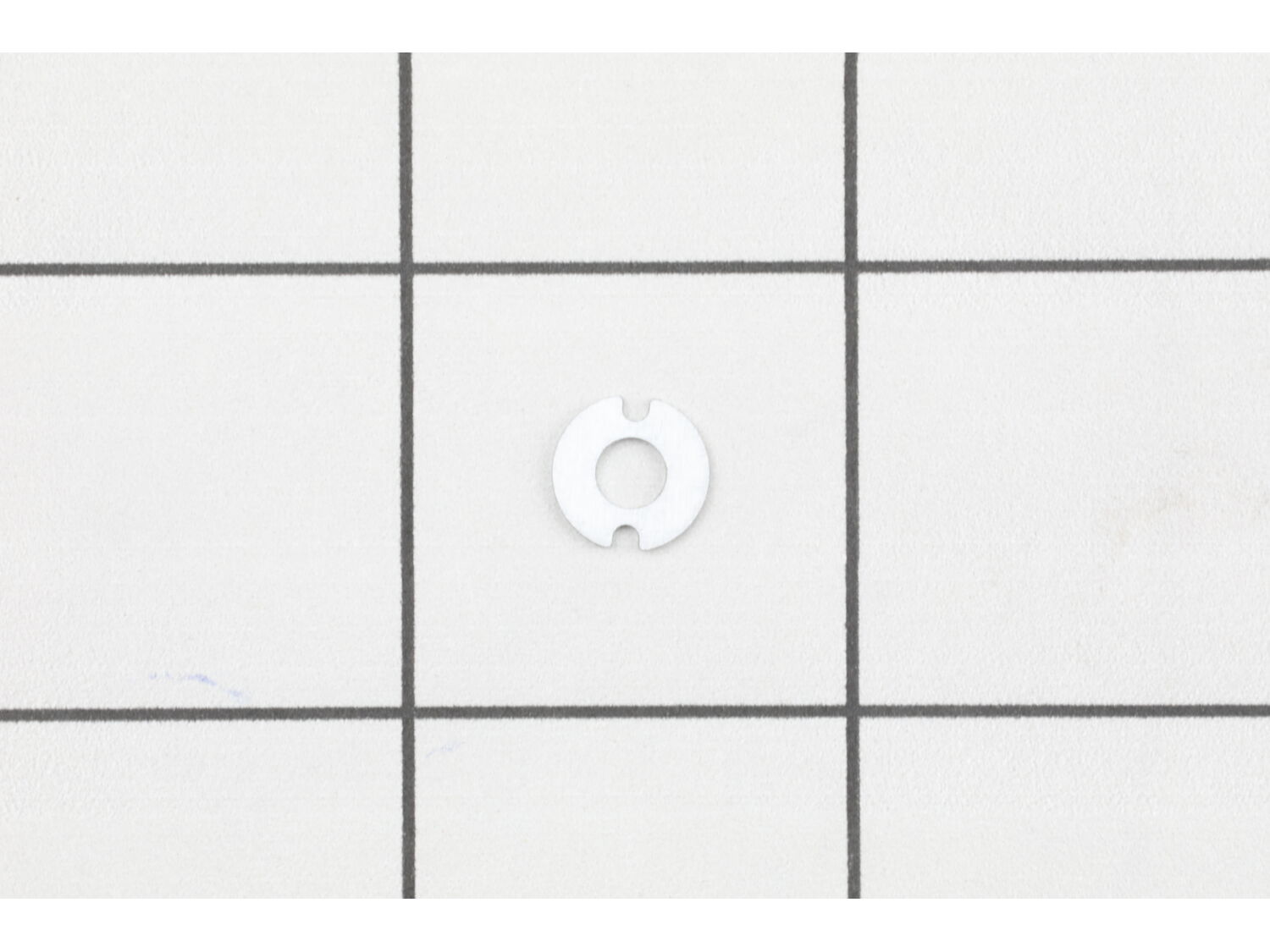

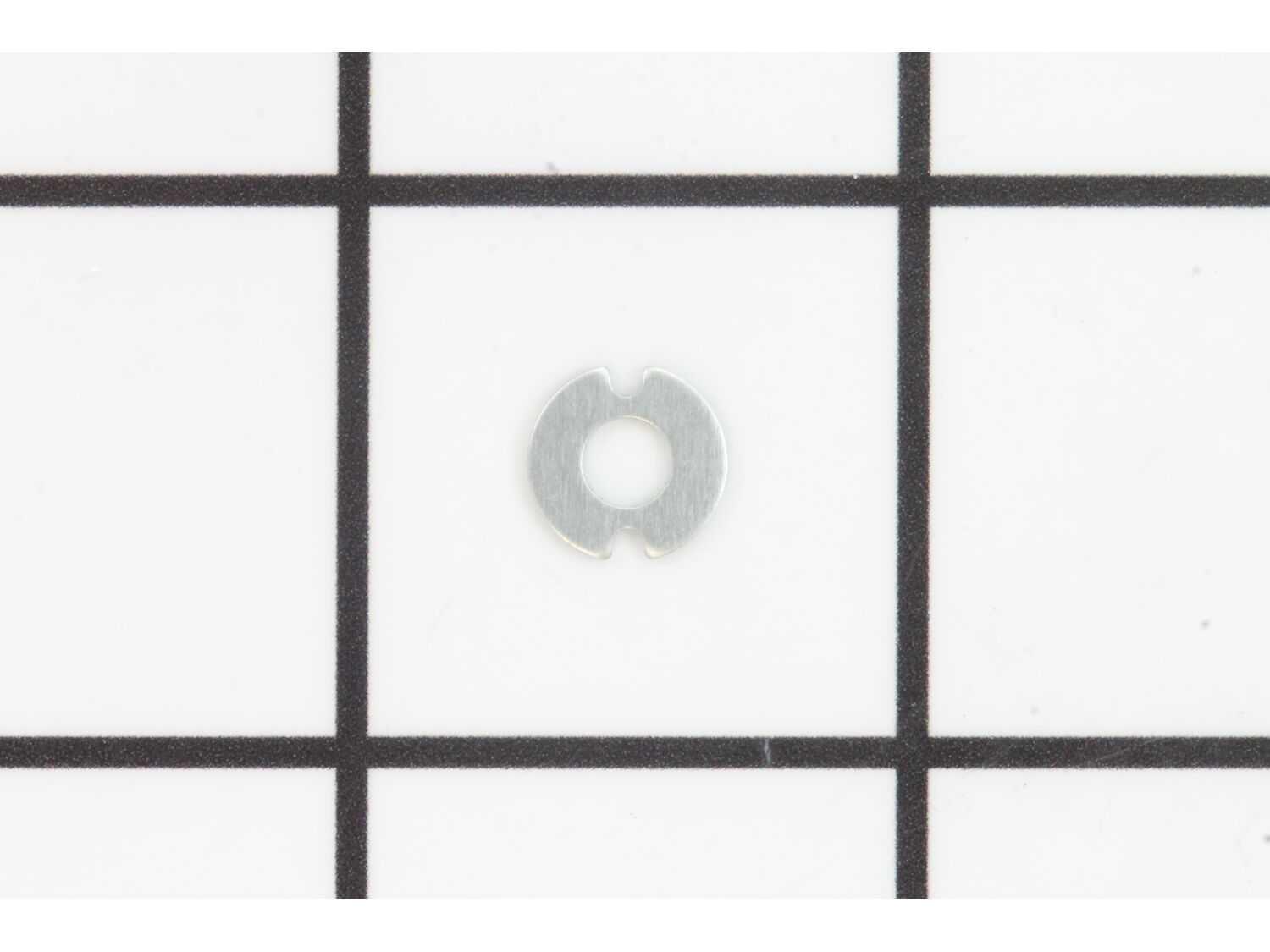

18248318-1-S-Shimano-1079U-Line Roller Plate 18248318-2-S-Shimano-1079U-Line Roller Plate 18248318-3-S-Shimano-1079U-Line Roller Plate Part Location Diagram of 1079U Shimano Line Roller Plate

Line Roller Plate 1079U

Manufactured by:
Shimano
ERP Number:
ERP18248318
Part Number:
1079U
Original Equipment Manufacturer ?
$6.16
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

The plate is utilized to provide a tight fit for the line roller. It is an identical replacement for a worn or a missing hardware that was installed on a new unit. This part is supplied by the original manufacturer for use with Shimano fishing reels. To ensure the correct repair procedure, check the diagram for your specific model. A screwdriver and pliers might be needed to replace this component. Keep in mind this high-quality line roller plate is sold individually.

Frequently Purchased Together

?
Line Roller
$6.16
In Stock
Line Roller Support
$8.62
In Stock

Troubleshooting

This part works with the following brands:
  • Shimano
This part works with the following products:
  • Spinning Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Ginding sound when reeling line

Darrell from Corpus Christi, Texas

9 of 9 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
10PFH, 10KM5, 10KFD, 10GAQ, 1079U, 104VX
After going some time with a scratchy/grindy sound/feel when reeling narrowed it down to line roller. Didn\'t do it unless spooling line, oil didn\'t fix, so ordered all the line roller assembly parts(there are several). Loosened screw holding assembly together, carefully separated bail, paying close attention to the order parts were line d up(also had schematic drawing). Popped out the shaped washer pressed in bail arm recess with knife tip and installed new. Pressed bearing, and roller bushing, and roller together, gave a drop of oil. Then while holding screw in place, slid parts on in proper order(important), made sure ears on nut part were in slots, and reassembled. Fairly straight forward process, although my sausage fingers didn\'t help with those itty bitty parts.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18248318
Manufacturer Part Number: 1079U
Brand Model Number Description
Shimano SA-1000FG Spinning Reels - Sustain Fg Spinning Reel
Shimano SA-2500FG Spinning Reels - Sustain Spinning Reel
Shimano SA-3000FG Spinning Reels - Sustain Fg Spinning Reel
Shimano SA-5000FG Spinning Reels - Sustain Fg Spinning Reel
Shimano SA4000FG Spinning Reels - Sprinning Reel Sustain Fg
Shimano ST-1000FJ Spinning Reels - Stradic Spinning Reel
Shimano ST-2500FJ Spinning Reels - Stradic Spinning Reel
Shimano ST-3000FJ Spinning Reels - Stradic Spinning Reel
Shimano ST-4000FJ Spinning Reels - Stradic Spinning Reel
Shimano STCI41000FA Spinning Reels - Stradic Ci4 Spinning Reel
Shimano STCI41000FAML Spinning Reels - Stradic Ci4 Spinning Reel
Shimano STCI42500FA Spinning Reels - Stradic Ci4 Plus Reel
Shimano STCI43000FA Spinning Reels - Spinning Reel
Shimano STCI44000FA Spinning Reels - Stradic Spinning Reel
Shimano STCI4PLUS1000FAML Spinning Reels - Stradic Spinning Reel
Shimano STCI4PLUS1000FA` Spinning Reels - Stradic Spinning Reel
Shimano STCI4PLUS2500FA Spinning Reels - Stradic Spinning Reel
Shimano STL-1000FE Spinning Reels - Stella Spinning Reel
Shimano STL-2500FE Spinning Reels - Stella Spinning Reel
Shimano STL-2500HGS Spinning Reels - Stella Spinning Reel
Shimano STL-3000FE Spinning Reels - Stella Spinning Reel
Shimano STL-4000FE Spinning Reels - Stella Spinning Reel
Shimano STL2500HGSFI Spinning Reels - Stella Spinning Reel
Shimano STLC2000SFI Spinning Reels - Stella Spinning Reel
Shimano STLC3000XGFI Spinning Reels - Stella Spinning Reel
Shimano TP4000SWBXG Spinning Reels - Twin-Power Sw Spinning Reel
