Part Location Diagram of 1280426 Abu Garcia Drive Gear
See part 45 in the diagram

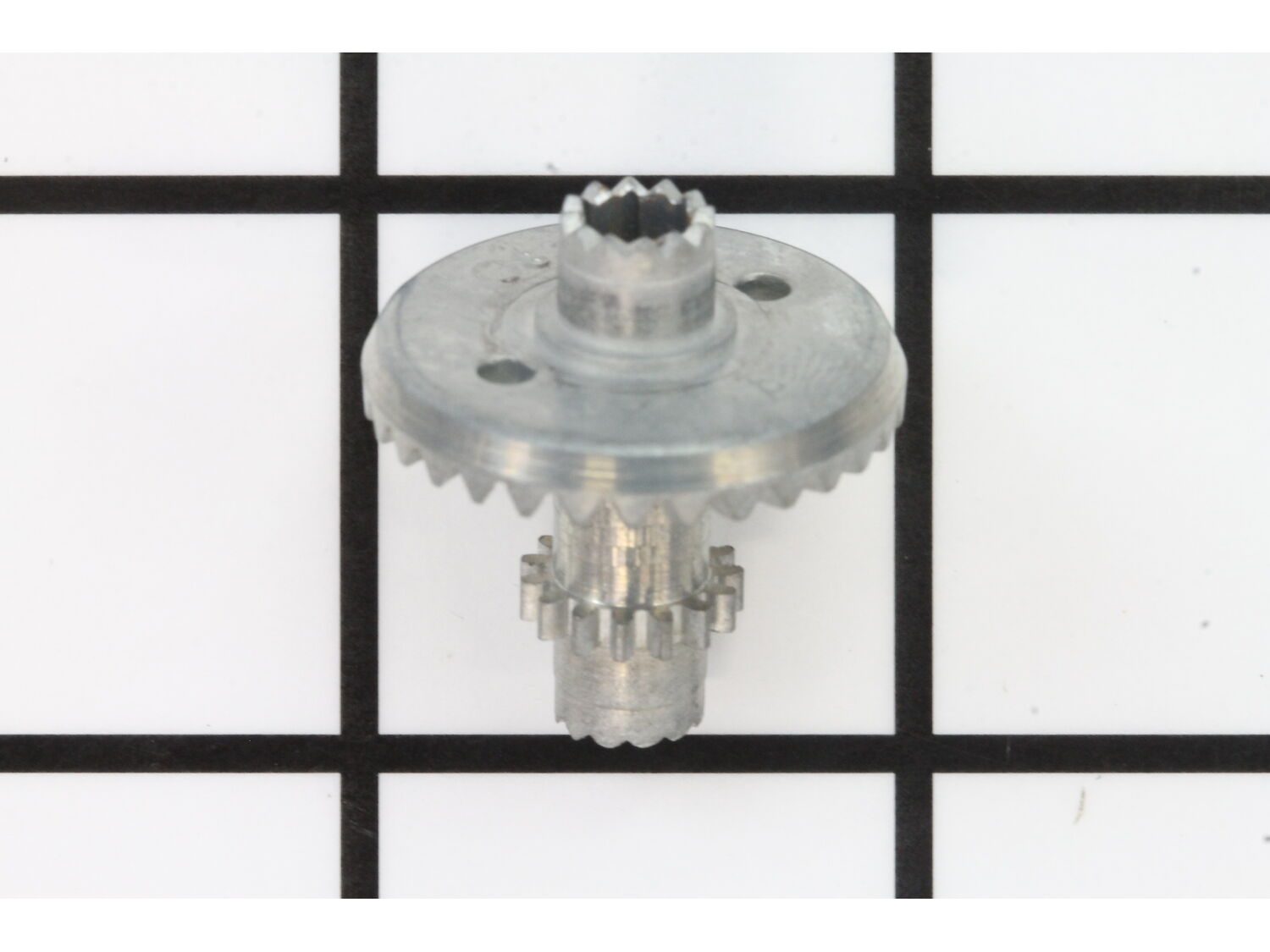

( Grid squares measure 1x1 inch )

Drive Gear 1280426

Manufactured by:
Abu Garcia
ERP Number:
ERP18270374
Part Number:
1280426
Original Equipment Manufacturer ?
$6.16
Special Order

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Abu Garcia
This part works with the following products:
  • Spinning Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Stripped drive gear

David from MARION, North Carolina

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Wrench set
Parts Used:
1280426
Removed oil broken part and replaced
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18270374
Manufacturer Part Number: 1280426
Brand Model Number Description
Abu Garcia CARDINAL_STX10 Spinning Reels - Advanced Spinning Reel
