18257690-1-M-Abu Garcia-1120993-Bail Assy

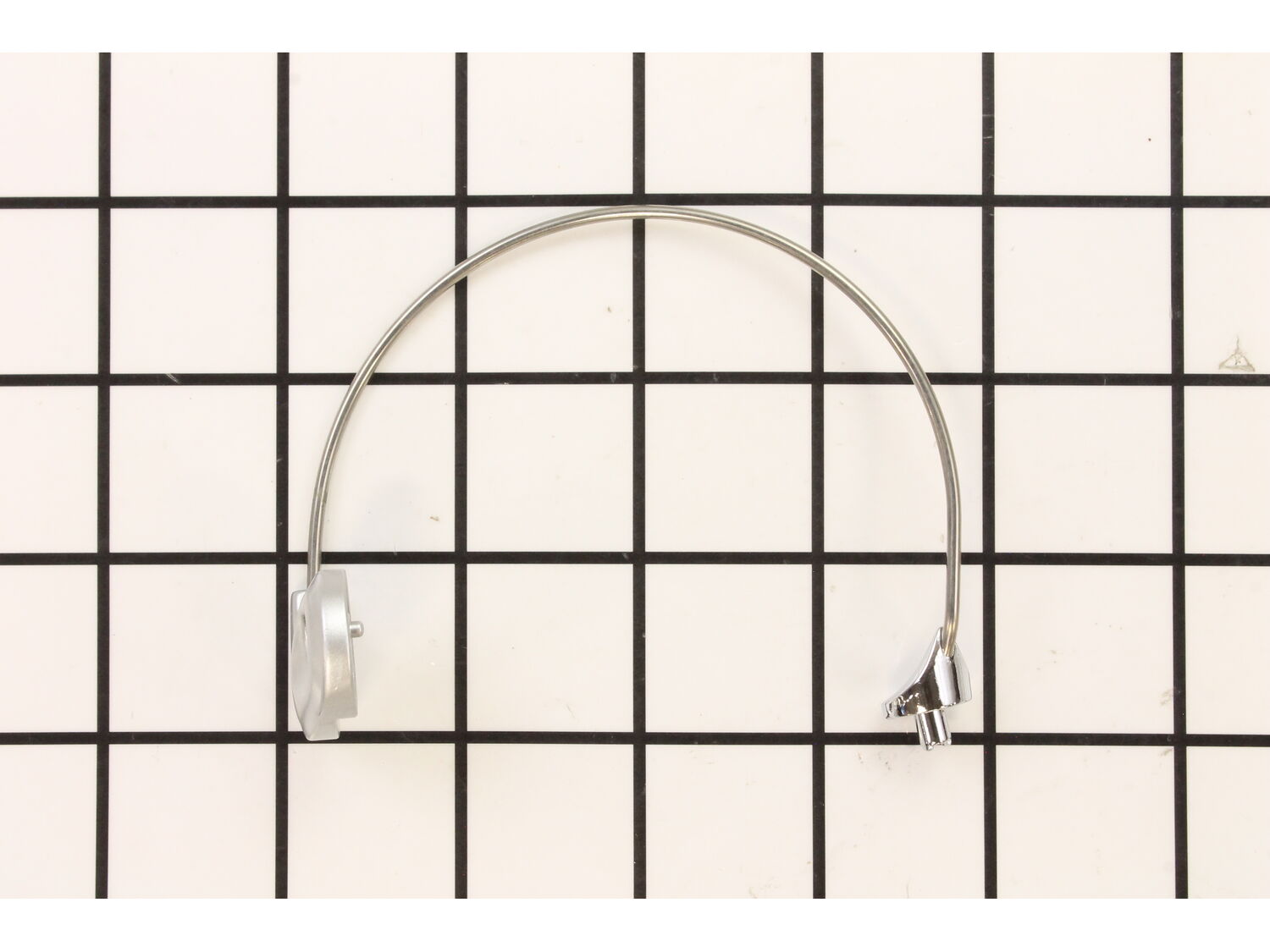

( Grid squares measure 1x1 inch )

18257690-1-S-Abu Garcia-1120993-Bail Assy

Bail Assy 1120993

Manufactured by:: Abu Garcia
ERP Number:: ERP18257690
Part Number:: 1120993

$6.16

Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Abu Garcia

This part works with the following products:

Spinning Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Bail wire was broken- detached from bail arm

Steve from Riverside, California

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 1120993

Removed screw holding on bail wire assembly to bail arm- careful to not lose bail roller and washers
Removed screw holding wire to rotor at pivot arm
Re-attached screw and new wire to bail pivot arm on rotor
Attached other end of wire with screw and roller/washers to bail arm
AND it worked !!

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP18257690
Manufacturer Part Number: 1120993

Brand	Model Number	Description
Abu Garcia	C106	Spinning Reels - Cardinal Spinning Reel
Abu Garcia	C106R	Spinning Reels - Cardinal Spinning Reel
