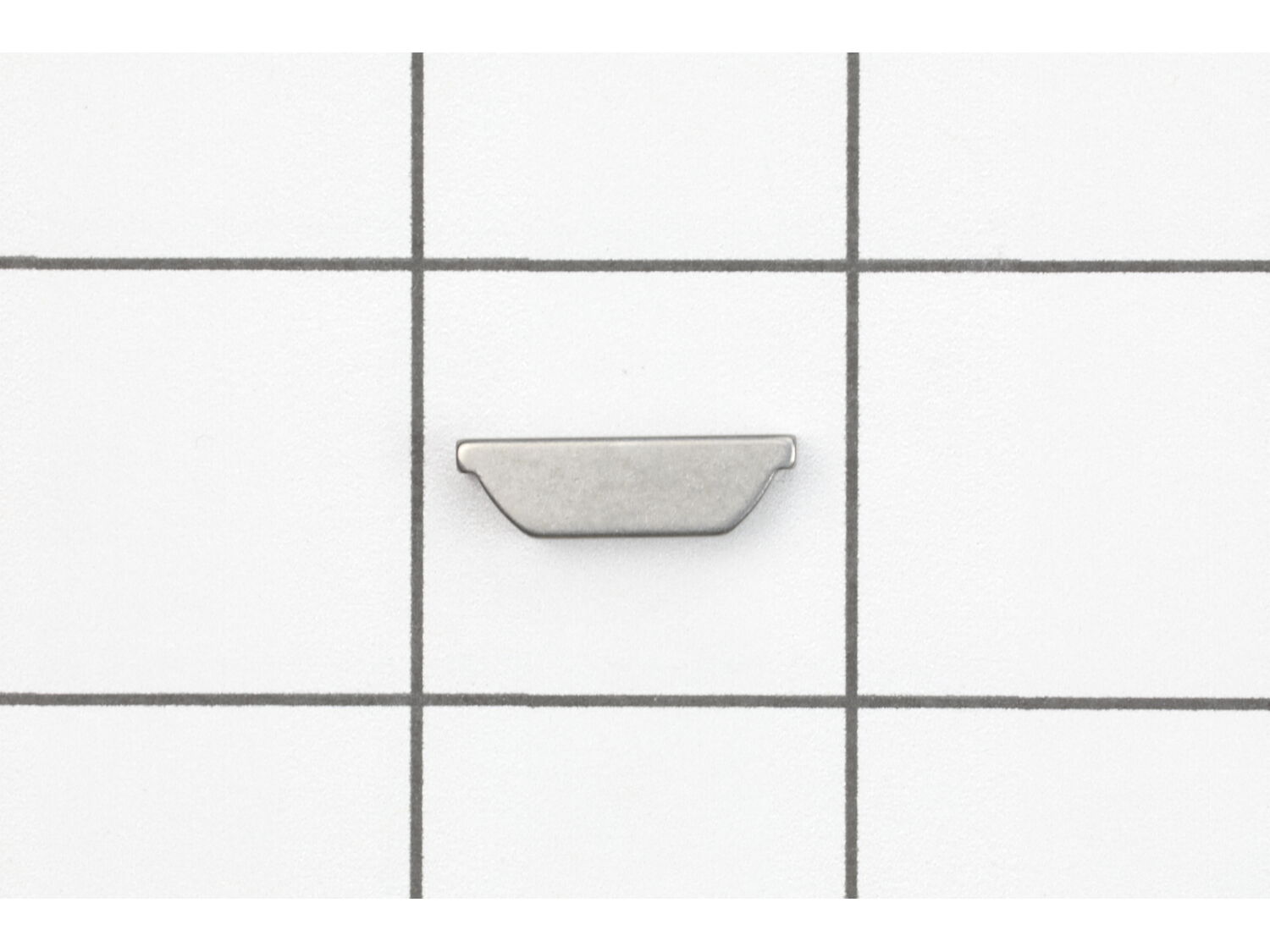

This item has been sourced from the original manufacturer and is intended to be used with snowthrowers from Toro. The metal woodruff key is used to link the motor drive shaft and the impeller pulley to allow the shaft to rotate the pulley. This woodruff key is priced as a single item.
Take front assembly off by removing 6 bolts. Take belt wheel off by hitting middle shaft to remove it. Loosen the two set screws to remove the shaft from bearing. Take out three holds that cover the bearing They will fall down below so watch for them. Replace bearing and reassemble.
Followed instruction relative the specific equipment found online.
Removal of the main shaft drive sheave was difficult, sheave set screws marked the drive shaft.
Original auger bearing flanges are threaded, replacement bearings were not, required to purchase a 5/16GÇ¥ X 18 bolt thread tap and cut threads into them, the fla
... Read morenge holes were of the right diameter for the tap.
The auger bearing can then installed onto the auger shaft ends.
Tight clearances when installing the main drive sheave and itGÇÖs relative key requires manual manipulation of the complete auger, gearbox, main shaft assembly while inserting the woodruff key, once started tap the key into its final position, then tighten the set screws. The auger / gearbox can then be positioned and secured into place by bolting auger shaft bearings bearing to the hood side walls.
