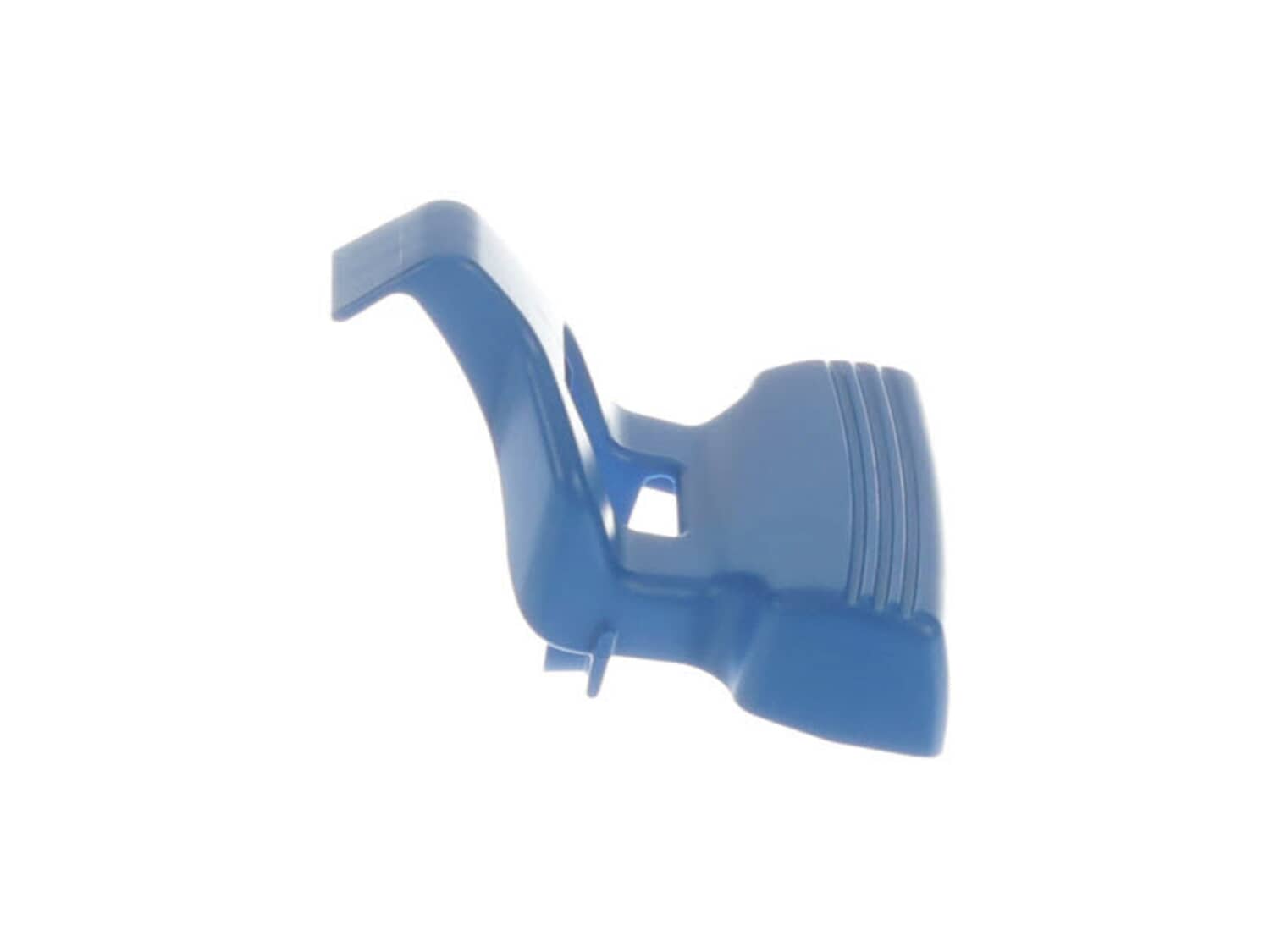

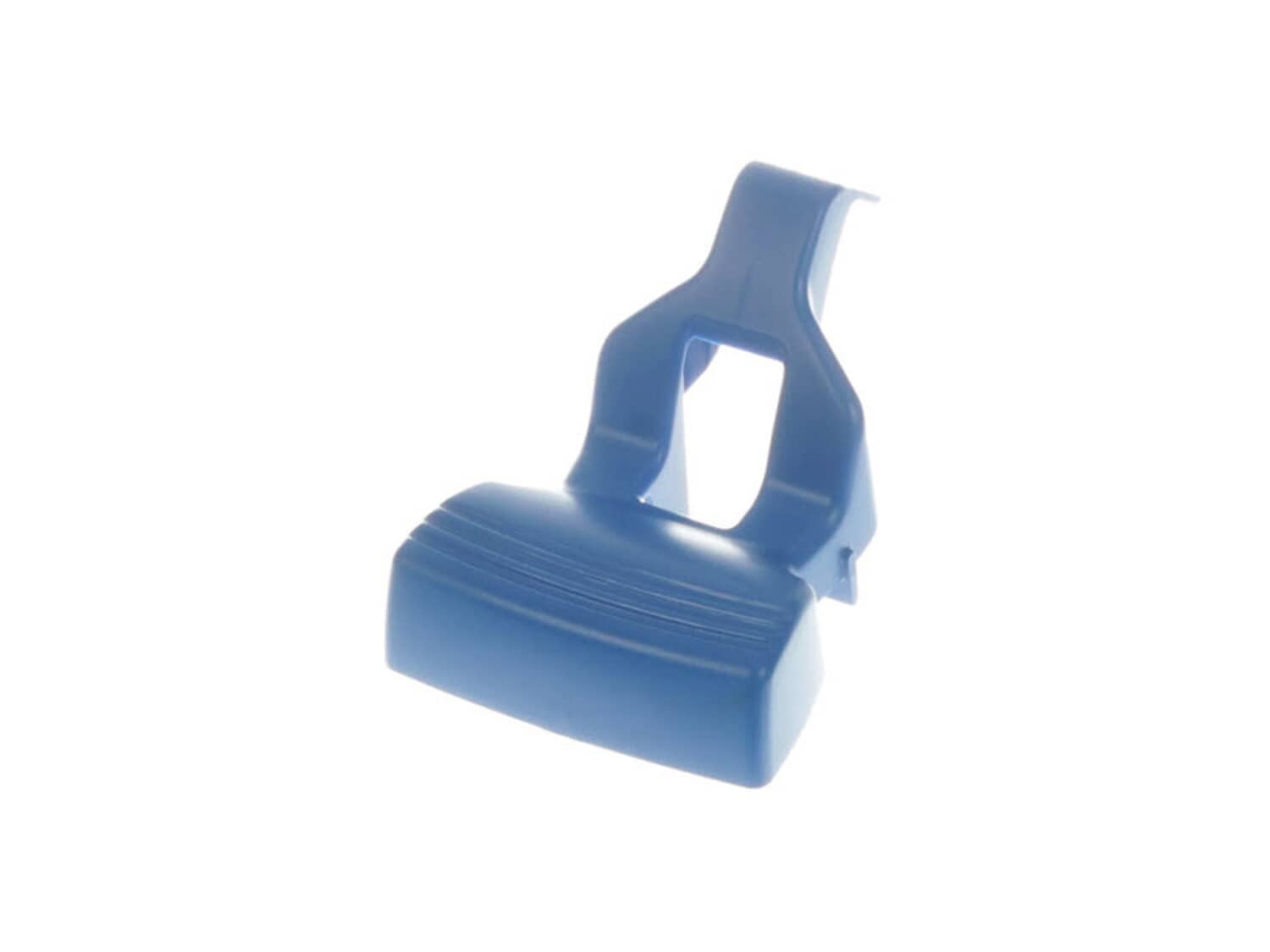

Trigger-deflector 117-2314

Manufactured by:: Toro
ERP Number:: ERP9259991
Part Number:: 117-2314

$21.73

Delivers in 3-5 Business Days!

Easy

30 - 60 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Frequently Purchased Together Troubleshooting Repair Instructions Model Cross Reference

Frequently Purchased Together

Chute Deflector Asm

$33.89

Troubleshooting

This part works with the following brands:

Toro
Lawn Boy

This part works with the following products:

Snow Blower

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(2 rated repairs) ?

< Prev
1
Next >

Sort by:

lost chute knob and deflector arm

Allen from NEKOOSA, Wisconsin

2 of 2 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Parts Used:: 136-7136, 32115-15, 117-7742, 117-2314, 233-67

screwed knob on chute and snapped deflector on to chute

Did you find this story helpful?

After 8 years of use the chute cracked and throwing snow diminished. The chute replacement was easy, replacement of belt led to discovery of shear pin failure on impeller. 2 hours later all fixed.

Jay from lakeville, Minnesota

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 1- 2 hours
Tools:: Socket set, Wrench set
Parts Used:: 136-7136, 120-3892, 119-7629, 117-2314

Chute replacement is removing directional joy stick linkage, and geared control. Start with chute straight makes reasm easier.
The impeller sheared pin is a 1/4 inch bolt, local Ace had those.
Took a little WD40 and a drift to break loose.
Belts were not bad, replaced anyway. Note on the earlier 724\'s, remove the bearin ... Read more

Read less

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP9259991
Manufacturer Part Number: 117-2314

Brand	Model Number	Description
Toro	31853T	Snow Blower - 31853t, Flex-Force Power System 60v Max Snowthrower, (Sn 400000000-408999999)
Toro	36001	Snow Blower - Snowmaster 724 Zxr Snowthrower, 2016
Toro	37770	Snow Blower - 724 OE Power Max Snowblower
Toro	38272	Snow Blower - 418 ZR Power Clear Snowblower
Toro	38273	Snow Blower - Powerlite Snowthrower, 2011
Toro	38274	Snow Blower - 38274, Powerlite Snowthrower, (Sn 400000000-406293999)
Toro	38282	Snow Blower - 418 ZE Power Clear Snowblower
Toro	38283	Snow Blower - Powerlite Snowthrower, 2013
Lawn Boy	38302	Snow Blower - 1800 18-Inch Power Curve Snow Thrower
Toro	38303	Snow Blower - 1800 Power Curve Snowthrower
Toro	38381	Snow Blower - 1800 Power Curve Snowthrower
Toro	38472	Snow Blower - Power Clear 518 ZR Snowthrower
Toro	38473	Snow Blower - Power Clear 518 ZE Snowthrower
Toro	38710	Snow Blower - Snowmax 724 Zxr Snowthrower, 2016
Toro	38720	Snow Blower - Snowmax 724 Zxr Snowthrower
Toro	38810	Snow Blower - Toro Snowblower Model 38810/SERIAL: 315000001-315999999 (38810/SERIAL:315000001315999999, 38810/SERIAL: 315000001 315999999) Parts
Toro	38811	Snow Blower - Toro Snowblower Model 38811/Serial: 316000001-316999999/2016 (38811/Serial:316000001316999999/2016, 38811/Serial: 316000001 316999999/2016) Parts
Toro	39901	Snow Blower - Flex-Force Power System 60v Max Snowthrower
Toro	39901T	Snow Blower - Flex-Force Power System 60v Max Snowthrower
Toro	39902	Snow Blower - Flex-Force Power System 60v Max Snowthrower
