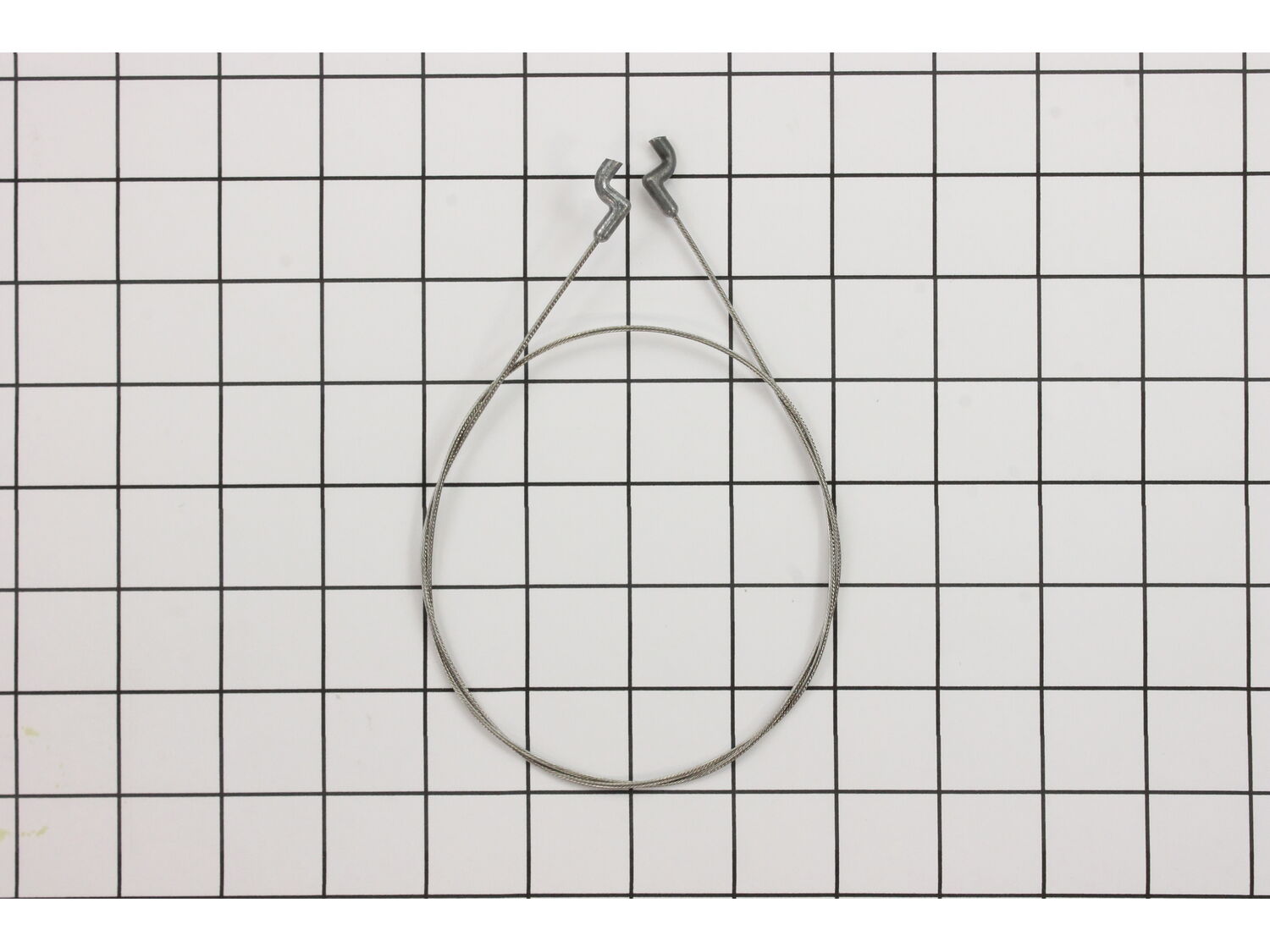

This is a genuine manufacturer-sourced part which is designed for use with Toro snowblowers. The clutch cable engages the deck. It is an identical replacement for a faulty or missing cable that was installed on a new unit. please make sure to check the appropriate diagrams of your model for the correct location and application of this part. Keep in mind this high-quality cable is sold individually.
Troubleshooting
This part works with the following brands:
Toro
This part works with the following products:
Snow Blower
★
Customer Part Reviews
?
4.8
Average Rating (out of 5):
★★★★★
★★★★★
(4 Reviews)
Click to filter by ratings:
5 stars
3
4 stars
1
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair, great part, quick delivery.
excellent fast service. Easy to order. snowblower is now working great. thanks for your help. if I have any other problems, I will be sure to order from your company. Have told others of your company. Alex
Alex - January 7, 2020
Verified Purchase
★★★★★
★★★★★
Great service!
I have ordered more than once from eReplacementParts and each time my order was accurate which was most important to me. I was able to install the parts myself which saved me a bunch of money. This is my first choice for part replacement. This company does a wonderful job!
Guest - February 17, 2020
Verified Purchase
★★★★★
★★★★★
Worked as expected
The part I ordered was "new" and installed easly on my snow blower. Thank you!!
Guest - January 11, 2023
Verified Purchase
★★★★★
★★★★★
Very Pleased
Received the part quickly. I have not replaced it yet but it appears to be correct. Have not had snow since it broke.
Price was cheaper from U.S. with delivery than it was Canadian seller.
Iglobal - March 31, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Although this is a pretty simple repair, I had to perform my repair twice. The first time I failed to route the cable through the cable guide and it broke almost instantly. After reviewing the snowblower drawings more closely, I discovered the \"hidden\" (i say hidden because it is not obvious on the drawing or by visually inspecting th
... Read moree snow blower) cable guide. This time I removed the cable guide, one screw, routed the clutch cable through the guide, and reinstalled the guide. Everything is working fine.
Read less
Did you find this story helpful?
Thank you for voting!
The Handle clutch cable broke because the clutch cable guide\'s screw head had broken off and the clutch cable guide was lost in the snow.
(read all before attempting repair)
1. Remove the access panel, large pulley on the left and power belt. this gives you better access to hold the clutch cable guide so that you can keep the guide\'s locating peg in it\'s hole while screwing in the single phillips screw holding the part in the proper position.
2. The clutch cab
... Read morele should be threaded through and above the handle\'s opening to the body of the machine and fished out at the hole where the clutch cable guide is placed on the inside of the hole and and then the clutch cable should be threaded through the clutch cable guide into the \"in\" and \"out\" holes of the clutch cable guide before the clutch cable guide is attached to the machine with its screw.
3. Attach the clutch cable to the clutch assemblies far right upper hole so that there is no kinking and when the cable is pulled down, the clutch spring action is activated smoothly with no rubbing on any other surfaces with the cable.
4. Attach the other end of the cable to the handle and adjust as per the operator\'s manual.
5. Replace the power belt with it around all the pulleys first (again refer to manual\'s illustration) including the one that was removed and then replace the pulley that was removed using the bolt in the middle of the pulley.
6. Test the clutch handles action to be sure the clutch engages and disengages properly.
7. Replace the access panel.
8. Test with the engine running with the clutch handle forward to be sure the paddles stop and when the clutch handle is held down, the paddles spin.
Read less
Did you find this story helpful?
Thank you for voting!
End of clutch cable broke (pop metal) should be made out of steel !!
Biggest problem l had was l just had a complete left knee replacement, l couldn\'t get on my hands and knees, end up putting the snowblower on the work bench, that worked out good !! That probably sound easy but picking up the snowblower feels like my new knee was going to pop out of my leg !! The new cable works great !!
W
... Read moreish the ends of the cable was made out steel, instead pop metal !! Thanks
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8849415
Manufacturer Part Number: 117-9145
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

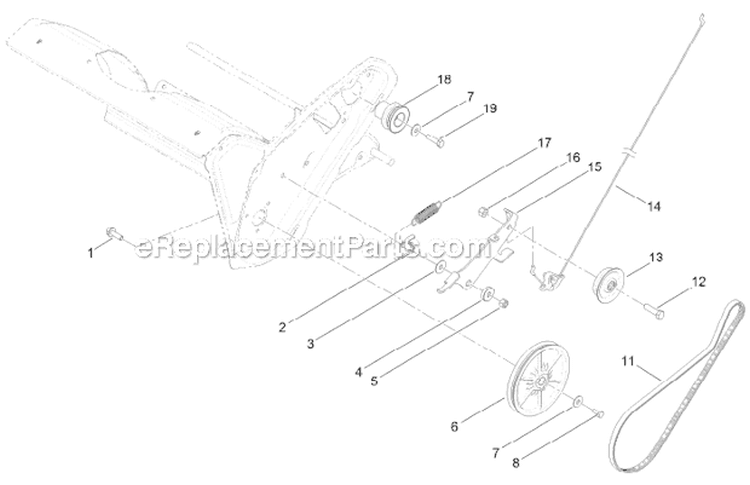

(2013)_WW_2.gif "Part Location Diagram of 117-9145 Toro Cable-clutch")
(2013)_WW_2.gif "Part Location Diagram of 117-9145 Toro Cable-clutch")
