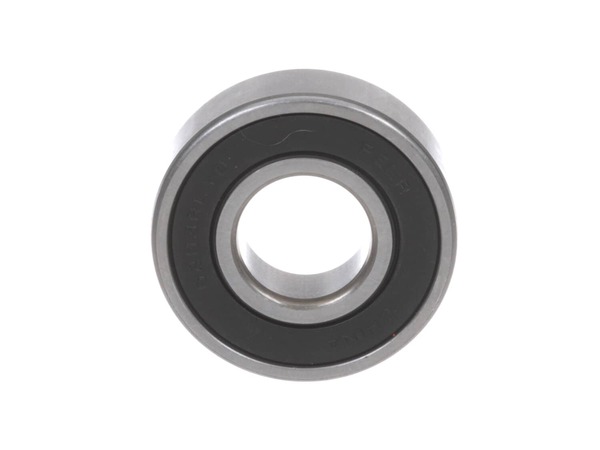

This authentic replacement part is designed for use with Craftsman snowblowers. Ball bearings are used to reduce friction between rotating parts. The balls or rollers take the load and spin, distributing the weight evenly while the minimal contact area of the ball reduces friction. This bearing helps to secure the arbor shaft, allowing it to rotate. Bearings experience constant wear from pressure, heat, vibration, and friction eventually requiring replacements. This high-quality component is made of durable metal and is sold individually. A wrench set will be needed to perform this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
As Expected
All parts were easily found online. Easy to place order. Shipment arrived earlier than expected. All were OEM parts and worked as expected. Thx
Guest - March 18, 2020
Verified Purchase
★★★★★
★★★★★
Original equipment parts with great service
Wonderful people to work with. If you have the machine model number the parts schematic pops right up. If you need assistance, call and the friendly and knowledgeable staff are extremely competent and helpful
Guest - April 21, 2020
Verified Purchase
★★★★★
★★★★★
Tractor deck repair
All the parts arrived in a timely manner. They were exact replacement parts. They perform like new.
Guest - April 23, 2020
Verified Purchase
★★★★★
★★★★★
PArt is exactly what I needed for my 20 year old snowblower
This site couldn't be easier to find the exact part you need. If you have the brand and model number, you'll be able to identify and order your part.
Kenneth - January 13, 2021
Verified Purchase
★★★★★
★★★★★
Axel bearing ,
Easy to order , quick delivery and fantastic pricing
Guest - September 3, 2021
Verified Purchase
★★★★★
★★★★★
easy repair
Arrived quickly, great service
Guest - September 7, 2022
Verified Purchase
★★★★★
★★★★★
Exactly what I needed to get mowing again
Parts were what I wanted to repair my simplicity regent mower
Guest - September 30, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the old housing assembly. Pressed the new bearings into the new housings. Assembled the new parts and mounted them on the mower deck. Fastened the blade to the lower end of the new shaft. Remounted the blade drive belt. Replaced the belt guard. Test ran the machine.
Note: When pressing the bearings into the housings
... Read more, it is critical to apply force only to the outer race of the bearings.
Read less
Did you find this story helpful?
Thank you for voting!
Bearings worn down to sleeves and blades needed replacement.
Kenneth from Wausau, Wisconsin
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Took mower attachment off.
Took old blades off.
Removed assembly where blades were attached with sockets and wrenches.
Used a vice to hold each assembly to free large nut end.
Pulled apart the assembly to reveal the worn bushings - ball bearings were in grease.
Used a hammer and cold chisel to separate inside
... Read more worn bushing from the shaft.
Used a hammer and punch to separate the outside worn bushing from the shaft.
Removed old foam gasket and installed new one after tapping in the new bearing.
Repeated process for second blade assembly.
Attached both blade assemblies to mower attachment.
Attached blades and put attachment back on and put the belt back on.
Started mowing.
Read less
Did you find this story helpful?
Thank you for voting!
old craftsman zero-turn mower .Cant buy a complete spindle but got all parts to rebuild it on order site .
seperate engine from auger assembly/shroud
remove auger drives from shroud by removing auger drive pulley from impeller shaft
remove broken tension roll pins and replace with new
reassemble auger assembly (installed new impeller bearing, key, bearing housing)
replaced auger drive belt while access was readily avail
... Read moreable
reattached auger assembly/shroud to engine
Read less
Did you find this story helpful?
Thank you for voting!
Bearing froze and scored the arbor shaft. Also hub pulley keys sheared.
1. First looked at parts locations on the internet.
2. Took mower deck main drive apart and remembered location.
3. Purchased all new parts and spares.
4. Used online diagram to assemble the new parts and installed the arbor shaft.
5. Greased the shaft.
6. Installed V belts and checked for free rotation.
... Read more />7. Installed deck on tractor and V belt to engine
8. Test run the tractor and mower deck.
9. Checked all fasteners to make sure tight.
10. Cut my and my neighbors lawn, about 4 acres.
