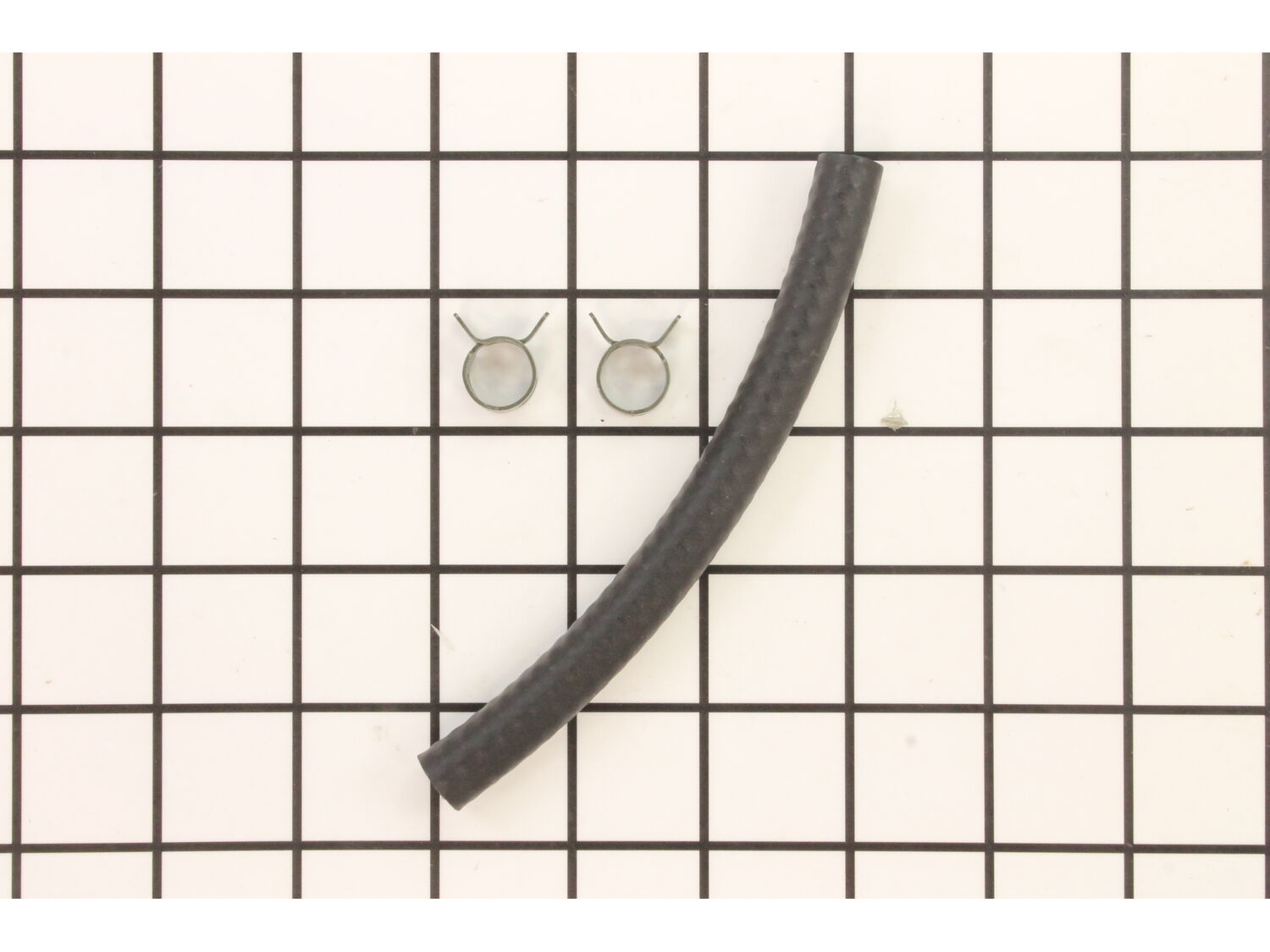

This is an authentic MTD replacement part. The fuel line kit is designed by the manufacturer for use in snowblowers. This part includes the rubber tube and two metal clamps, and is used to carry fuel through the machine. You will require pliers when replacing these items.
1. After emptying the fuel from the tank, remove (4) of the #10 bolts from the exhaust housing. One bolt that is wedged slightly between the exhaust housing and the fuel tank will require a #10 box-end or open-end wrench for removal and replacing.
2. Once the (4) bolts are removed the next step is to remove the (2) #10 castle
... Read more nuts that hold the carburetor to the intake. Then pull up and forward on the exhaust shroud until you have room to work on the fuel line. It will only go so far because there is one other bolt at the bottom of the unit that you cannot get off unless you completely remove the housing from the blower unit.
3. After removing the bolts and nuts you need to pry the complete plastic housing unit/section toward the rear, away from the engine. Do not pull too far or the engine vent/breather tube will come off and it is hard to get back in place due to limited work space. Unlike the newer series the 2410 knobs do not come off with a simple pull. So you will need to work with the space you have unless you are willing to take the electric start unit, the fuel tank, the engine shroud and the choke controls off. And that can be a very timely job.
4. Using a pair of long needle nose pliers, squeeze the tabs on the hose clamp and slide down from the fixed fuel filter and carburator couplings.
5. Once the clamps are no longer on the end of the line then remove the fuel line by using the needle nose pliers to clamp on to the hose and using a 6 or 8 inch flat tip screw driver you can pry the hose off the tank and carburetor.
6. After removing the fuel line just reverse the steps.
One key element with this job is to purchase the correct outside Diameter fuel line. If you get the normal 1/4 I.D. fuel line it will be too thick and will interfere with the fuel shut-off level action...that will cause your fuel to flow when the engine is off and will bypass the carburetor and load your cylinder with fuel when its not running. You need a thin wall fuel line. Most of the ones I noticed that state OEM on the advertisement...they aren\'t.
Tiller
- Cub Cadet Tiller Model 21A-39M5010/2010 (21A39M5010/2010, 21A 39M5010/2010) Parts
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
[{"position":0,"name":"Home","title":"Home","url":"/"},{"position":1,"name":"Hose or Tube","title":"Hose or Tube","url":"/parts/lawn-and-garden/snow-blower/hoses-and-tubes/"},{"position":2,"name":"951-10650","title":"951-10650","url":""}]

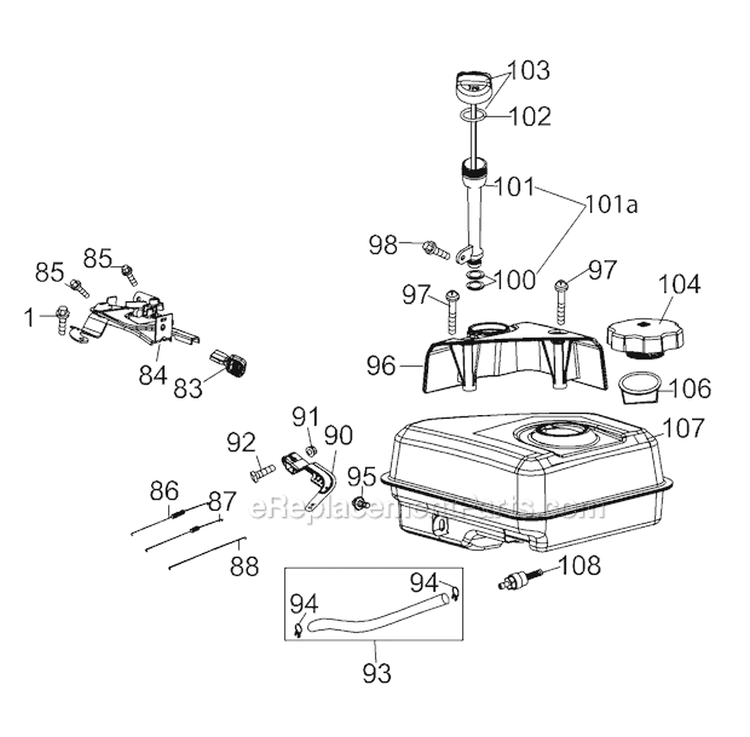

_WW_6.gif "Part Location Diagram of 951-10650 MTD Kit-fuel Line")
