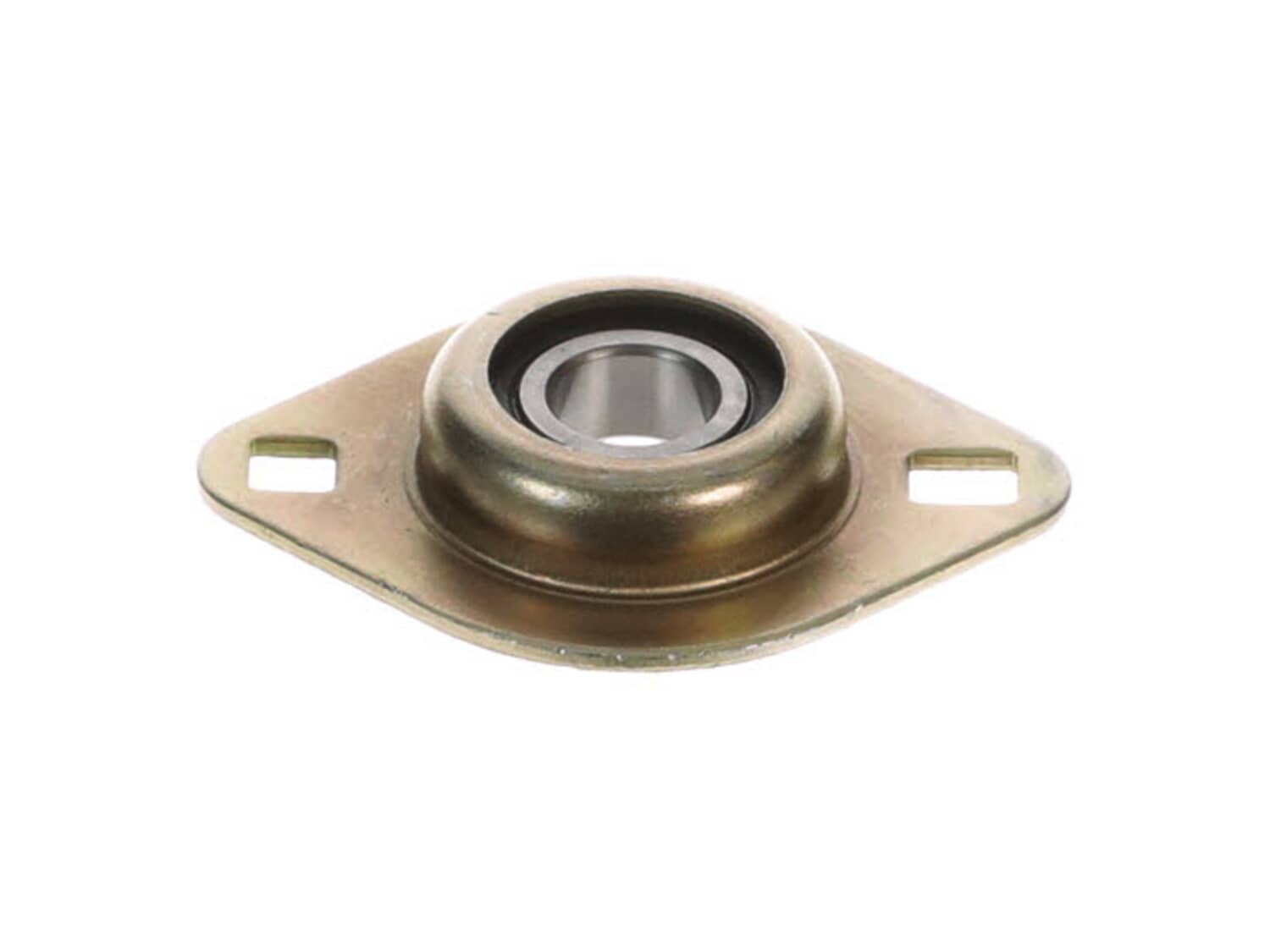

The flange bearing goes between the pulley flange impeller and the impeller assembly. This part is an OEM from Husqvarna, Poulan, and Jonsered for snowblowers. It is made of metal and will need to be replaced if it breaks. This high-quality part is priced individually and may require a socket set during installation.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair and I was very happy with parts
the parts I received all worked fine I didnt need the Trunnion bearing and would like to return, These parts were for my Snow blower st230e Thank you the young lady I worked with was very helpful
Guest - September 21, 2022
Verified Purchase
★★★★★
★★★★★
good fit
snow blower works as new. shipping OK
Guest - January 14, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed belt cover.
Removed 2 bolts securing auger assembly to power unit.
Remove auger belt.
Remove auger belt pulley
Remove 2 bolts and 2 nuts securing flange bearing. It is helpful to have a deep well socket and a long extension to reach the bolt heads loacated behind the auger and impeller.
Replace flange
... Read more bearing and re-assemble. 30 minute job at most.
Read less
Did you find this story helpful?
Thank you for voting!
Drive shaft wouldn\'t engage
Akela from Fairbanks, Alaska
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set, Wrench (Adjustable), Wrench set
Removed the entire auger assembly, blades, drive shaft etc. from blower. Skid plate had to be removed as well to access underneath and behind blade housing to remove the impeller pulley.
Impeller pulley was compromised and needed to be replaced.
Replaced impeller pulley, drive shaft & flange bearing
Put snowblower back
... Read moretogether and it works like its brand new again.
All total time for disassembly, order parts & putting back together was a 4 day project. (remember that time period included the ordering and shipping to Alaska)
$165ish worth of parts to get a free $1200 snowblower back together, worth it.
Thank you guys for the diagrams, the easy ordering & the fast shipping!!
Read less
Did you find this story helpful?
Thank you for voting!
Auger impeller bearing wore out after 11 years, drive pulley sheared key
Disassembled, like replacing belts, removed remains of old bearing, cleaned up shaft at pulley area. Replaced defective parts and reassembled. Pretty straight forward after reading the manual. Used a tie down instead of a second person to pull auger section and power section together on re assembly. Could do it slowly and steadily while c
... Read morehecking fit and clearance and it held sections together while I put the attachment bolts in the housing. All parts matched the originals with no problems and would use this website again .
Read less
Did you find this story helpful?
Thank you for voting!
Old flange bearing split apart and nut threads were messed up
Had to separate the snowblower frame assembly from the auger housing, then remove the impeller pulley, remove the bearing portion of the old flange bearing that remained on the impeller shaft, use the 36 mm socket and dead blow hammer to gently pound the new flange bearing onto the shaft, clean the damaged threads with a 5/16 -18 die, the
... Read moren secure the flange bearing with the new nuts and reassemble the snowblower.
1 - Remove the single cable going to the shoot up down directional guide. 2 small bolts. And the spring attached to it.
2 - Remove the bracket holding the double cable for left to right directional guide. One single nut on top of bracket. This will allow you to lift shoot up and off the unit.
3 - Remove the plastic combinatio
... Read moren cover/tool box. 2 small bolts one on each side.
4 - Remove the 2 bolts located to the top left an right of the main auger assembly body. Then lift and pull forward, the unit will separate from motor and base.
5 - remove the belt pully from shaft. The bering Is located behind it.
6 - Remove the 2 bolts holding bering in place then you may need a wheel puller to remove the bering mine was rusted on. This was a small set back.
7 - replace bering and reassemble in the reverse directing as disassembling.
Hope this was of some help. Good Luck Al D.
