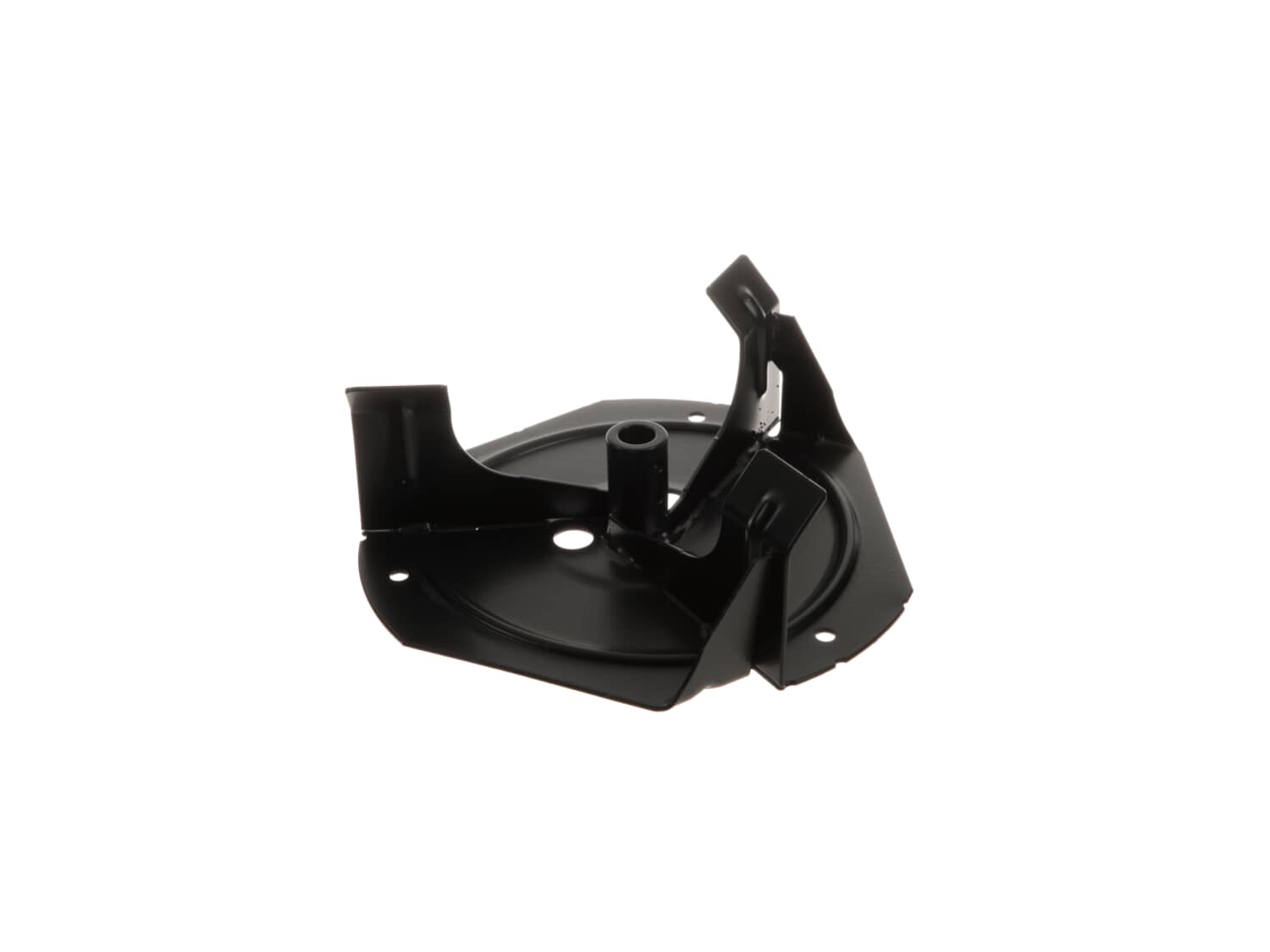

This is an authentic OEM sourced component which is specially designed for use with Poulan and Husqvarna snowblowers. The impeller is the component that will shovel the snow. It provides an identical replacement for a missing or a faulty impeller assembly was installed on a new unit. Please make sure to refer to the owners manual and the appropriate diagrams of your model for the correct location and application of this component. Keep in mind this high-quality assembly is made of durable metal and is sold individually.
1. Put support under rear of frame.
2. Remove chute and belt cover. You can leave chute cables connected,
3. Free auger drive belt from top and bottom pulleys. Leave it loose in place.
4. Remove bolts holding auger/impeller housing to frame.
5. Tilt auger/impeller assembly forward from rear and lift clear of suppor
... Read moreting bar on frame.
6. Remove impeller/auger drive pulley from the housing and auger drive shaft.
7. Remove shear bolts from impeller.
8. Remove auger bearings and retainers from each side of auger housing.
9. Pull auger/impeller assembly forward out of housing, freeing the drive shaft.
10. (I took the housing to a machine shop to weld the crack in the impeller housing.)
11. Mount the new impeller on the shaft and tighten shear bolts.
12. Put auger bearing retainers back on the ends of the auger shaft.
12. Move the auger into the housing, running the drive shaft back through the rear bearing.
13. Re-attach the bearings to the auger shaft and bolt through the housing to the retainers.
14. Re-attach the drive pulley on the outside back of the housing.
15. Re-hang the auger/impeller housing on motor frame crossbar.
16. Re-attach bolts holding auger/impeller housing to the motor frame.
17. Re-attach the auger/impeller drive belt over pulleys and inside the idler. Check that the auger/impeller control tightens the auger/impeller belt properly.
18. Re-attach the belt cover and corner discharge bracket.
19. Re-attach the chute.
20. Blow some snow.
Note: You may need to remove and re-attach the impeller/auger drive shaft bearings at the rear of the housing to ease auger/impeller re-assembly to the housing. That wasn\'t necessary for me.
1. Removed the snow blower assembly.
2. Removed the auger pulley.
3. Unbolted the auger from the side bearings.
4. Removed the side bearings.
5. Removed the auger assembly.
6. Unbolted the impeller from the auger assembly.
7. Removed the impeller.
8. Put new impeller on and reverse of the previous
... Read more steps.
Read less
Did you find this story helpful?
Thank you for voting!
Impeller was damaged (bent blades).
Todd from Sobieski, Wisconsin
4 of 4 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Removed the auger bolts.
Removed the impeller bolts.
Separated the auger assembly from the power head, 2 bolts and one belt.
Removed the auger drive wheel
Removed the bearing using a puller, made the bearing slide off the impeller shaft
++this took a while
Cleaned bearing and impeller shaft for easier
... Read more re-assembly
Replaced impeller drive wheel
Connected auger assembly to power head, put belt on
Reconnected auger
Changed out L and R skids
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP17016649
Manufacturer Part Number: 531167901
