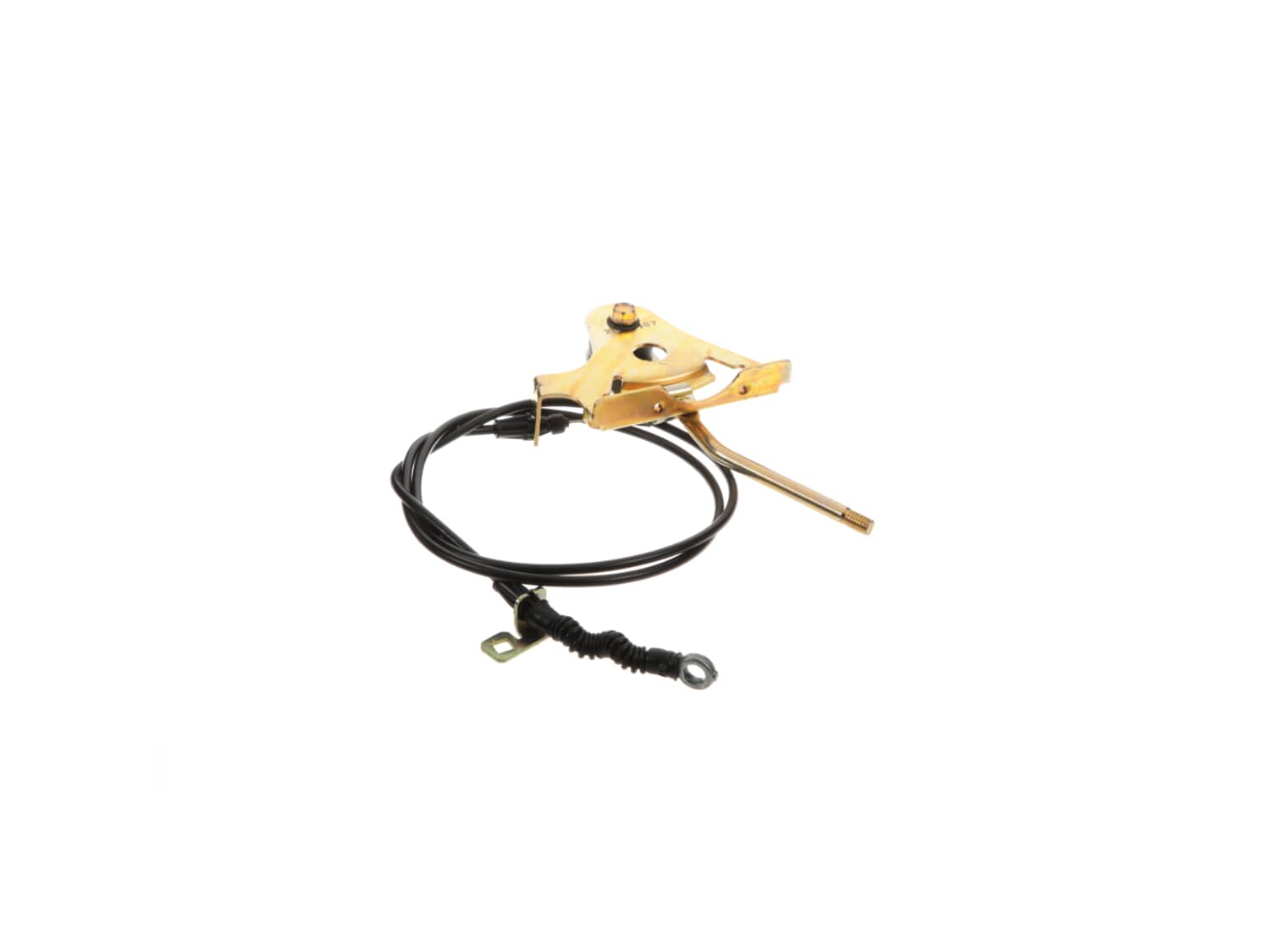

The deflector control assembly attaches to the frame. This part is made of metal and plastic and is available individually. This is an authentic Husqvarna and Poulan replacement part that is sourced from the original manufacturer for use with snowblowers. You may need a socket set and a nutdriver when replacing this part. It may become broken or stretched and will need to be replaced.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Cable control
Very easy 30 min
Guest - December 29, 2020
Verified Purchase
★★★★★
★★★★★
Perfect Fit
The Control Assemble, Deflector cable was a perfect replacement. The one problem was that the screw holes that hold the shift level to the snowblower control panel were not tapped. The solution was to use the screws as taps. I tapped prior to assembly and then used the exact same screws to attach the lever assembly. Everything else was perfect including the attachment bracket to the chute.
Guest - May 20, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed all of the rubber cushions on the rods that control the snow chute.
2. Removed the plastic cover of the control assemblies mounted near the machine handles.
3. Remove the control assembly of the damaged cable and remove the end of the cable attached to the top movable section of the snow chute.
4. Install new
... Read moresnow chute cable control assembly near the snow machine handles and mount the other end of the snow chute cable on the upper section of the snow chute.
5. Using plastic ties, loosely, but securely, secure the chute control cable in such a way that the cable will not be damaged by the drive wheels of the snow blower.
6. Replace the plastic cover on the control assemblies and the rubber cushions on the control rods.
Read less
Did you find this story helpful?
Thank you for voting!
The cable got lose, touched the muffler, and melted
1. Remove the clutch levers so that I could get at the bolts holding the control panel onto the frame. (One bolt on each handlebar)
2. Remove the control panel sp that I could get at the bolts holding the control assembly onto the frame. (4 bolts)
3. Remove the old control assembly \"handle end\", and replace with the new one.
... Read more (2 bolts, which self-taps into the new control assembly).
4. Thread the control cable to the direction chute.
5. Remove the old control assembly\'s \"chute end\", and replace with the new one. (2 bolts)
6. Use ties to tie down the cable so that neither touches the muffler nor the tires.
The hardest part was that the bolts holding the control assembly \"handle end\" self-tap, so it requires getting the bolt aligned and turning it with enough torque and downward pressure to make it self-tap. (The control assembly simply has holes in it metal, and the holes are not threaded).
Unscrew knobs to control rods
Remove instruction cover six screws
remove brakes two screws
Remove lever that controls the height of snow to be thrown two screws
Remove two nuts at the chute use a 1/2 inch on one 7/16 on the other cut three zip ties off then R
Remove the chute direction lever
Install new
... Read more assembly the same way old one was taken out Put the 1/2 inch nut on along with the 7/16 tighten
Install lever through the opening using the original screws
Reinstall direction cover plate with the same screws then brakes with same screws
Reinstall knobs on correct lever
The screws all had in this case a 5/16 head
Have everything in order and it takes around a half hour
