9249421-1-M-Ariens-02511100-Pin-grv .313x1.31 Type C
Part Location Diagram of 02511100 Ariens Pin-grv .313x1.31 Type C
See part C-12 in the diagram

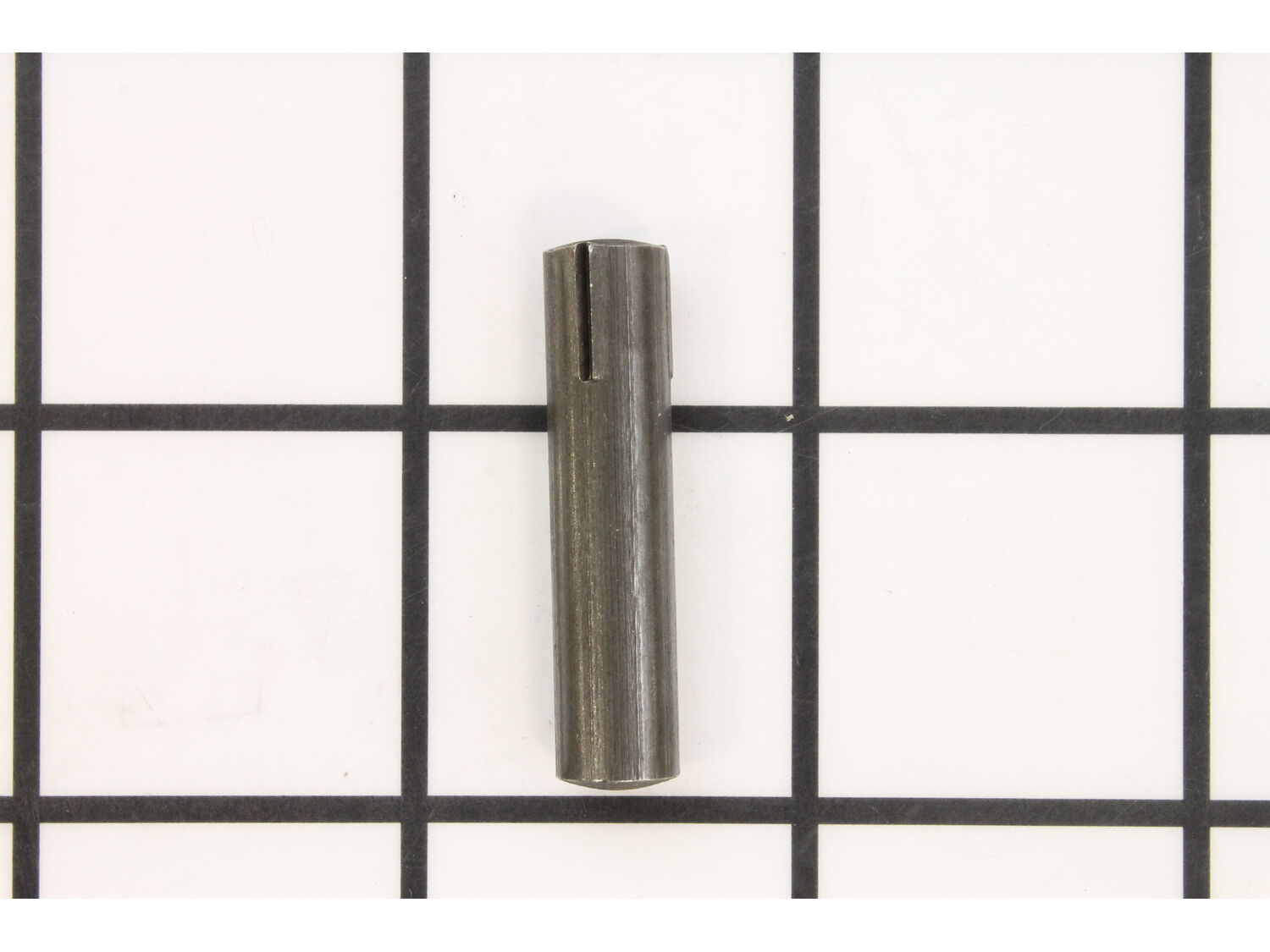

( Grid squares measure 1x1 inch )
9249421-1-S-Ariens-02511100-Pin-grv .313x1.31 Type C Part Location Diagram of 02511100 Ariens Pin-grv .313x1.31 Type C

Pin-grv .313x1.31 Type C 02511100

Manufactured by:
Ariens
ERP Number:
ERP9249421
Part Number:
02511100
Original Equipment Manufacturer ?
$6.16
Special Order

Easy

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Ariens
This part works with the following products:
  • Snow Blower

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Pin broke on gear drive

derek from lynn, Massachusetts

2 of 2 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
02511100, 05804500
Removed auger blades and replaced the pin easy
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9249421
Manufacturer Part Number: 02511100
Brand Model Number Description
Ariens 924027 Snow Blower - ST8, 8hp Tec., Tractor
Ariens 924036 Snow Blower - ST524, 5hp 24" Snowblower
Ariens 924038 Snow Blower - Ariens Snowblower Model 924038 Parts
Ariens 924039 Snow Blower - ST824, 8hp 24" Snowblower
Ariens 924040 Snow Blower - ST824, 8hp 24" Snowblower
