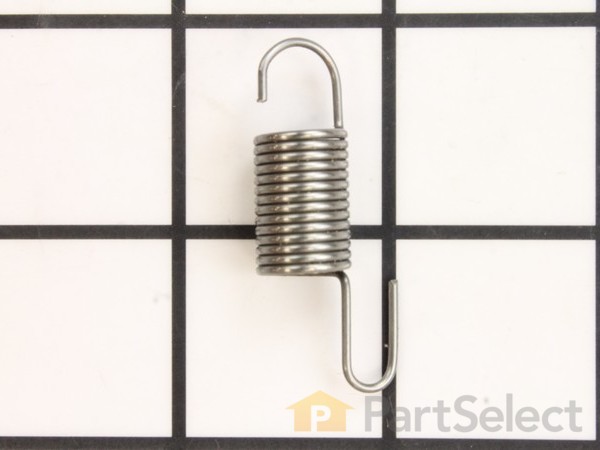

8806186-1-M-Ariens-08300036-Spring- Ext. .043x.438x1.64
Part Location Diagram of 08300036 Ariens Spring- Ext. .043x.438x1.64
See part E-31 in the diagram
( Grid squares measure 1x1 inch )
8806186-1-S-Ariens-08300036-Spring- Ext. .043x.438x1.64 Part Location Diagram of 08300036 Ariens Spring- Ext. .043x.438x1.64

Spring- Ext. .043x.438x1.64 08300036

Manufactured by:
Ariens
ERP Number:
ERP8806186
Part Number:
08300036
Original Equipment Manufacturer ?
$6.16
In Stock
Delivers in 3-5 Business Days!
Minimum Quantity of 2 required

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Ariens
  • Gravely
This part works with the following products:
  • Snow Blower
  • Lawn Mower
  • Lawn Tractor

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Missing spring holding drive wheel back

Rick from WINTHROP, Washington

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
Parts Used:
08300036
1. Opened the bottom cover.
2. Removed 1 bolt to allow bracket to swivel out of the way.
3. Installed spring.
4. Reinstalled bolt & cover.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP8806186
Manufacturer Part Number: 08300036
Brand Model Number Description
Ariens 916003 Snow Blower - AMP 24 Snowblower
Ariens 916302 Snow Blower - Amp Compact 24 Inch Snow Blower Battery Powered
Ariens 916303 Snow Blower - Amp Compact 24 Inch Snow Blower Battery Powered
Ariens 920001 Snow Blower - ST624E Snowblower
Ariens 920002 Snow Blower - 24 Inch Snow Blower 7hp Tecumseh
Ariens 920003 Snow Blower - Ariens Snowblower Model 920003 Parts
Ariens 920006 Snow Blower - Ariens Snowblower Model 920006 Parts
Ariens 920007 Snow Blower - Compact 20 Snowblower
Ariens 920008 Snow Blower - Sno-Brush 28
Ariens 920010 Snow Blower - Compact 24 Snowblower
Ariens 920012 Snow Blower - Compact 22 Blower
Ariens 920013 Snow Blower - Compact 22 Blower
Ariens 920014 Snow Blower - Compact 24 Snowblower
Ariens 920015 Snow Blower - Compact 26 Snowblower
Ariens 920016 Snow Blower - Compact 24E Snowblower
Ariens 920020 Snow Blower - Compact 24 Track 120v
Ariens 920021 Snow Blower - Compact 120V Two Stage Show Thrower
Ariens 920022 Snow Blower - Compact Track Snow Thrower 120V
Ariens 920024 Snow Blower - Compact 20
Ariens 920025 Snow Blower - Classic 24
Ariens 920026 Snow Blower - Compact 20
Ariens 920027 Snow Blower - Compact 24
Ariens 920028 Snow Blower - Compact 22 Track
Ariens 920029 Snow Blower - 920029 (000101 - 319999) Compact 24
Ariens 920030 Snow Blower - 920030 (000101 - 319999) Classic 24 Plus
Ariens 920032 Snow Blower - 920032 (000101 + ) Compact 24 Rapidtrak
Ariens 920033 Snow Blower - 920033 (000101 - ) Classic Lt
Ariens 920300 Snow Blower - ST520 Snowblower
Ariens 920302 Snow Blower - Compact 24 Snowblower
Ariens 920303 Snow Blower - Compact 20 Snowblower
Spring- Ext. .043x.438x1.64
$ 6.16
In Stock
Minimum Quantity of 2 required
✖
