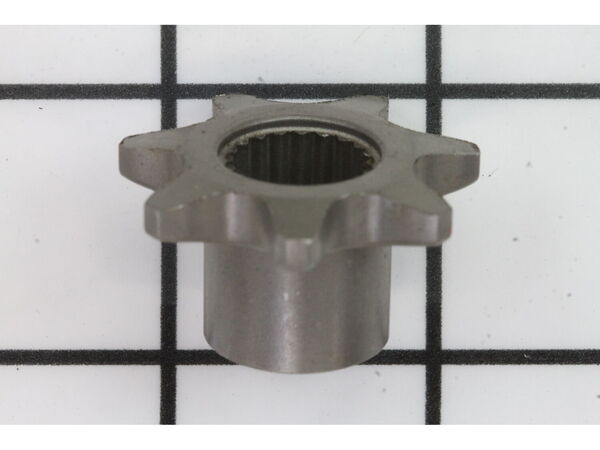

17835236-1-M-Ariens-09478400-SPROCKET- PINION 7T W/SPLINE
Part Location Diagram of 09478400 Ariens SPROCKET- PINION 7T W/SPLINE
See part E-11 in the diagram
( Grid squares measure 1x1 inch )

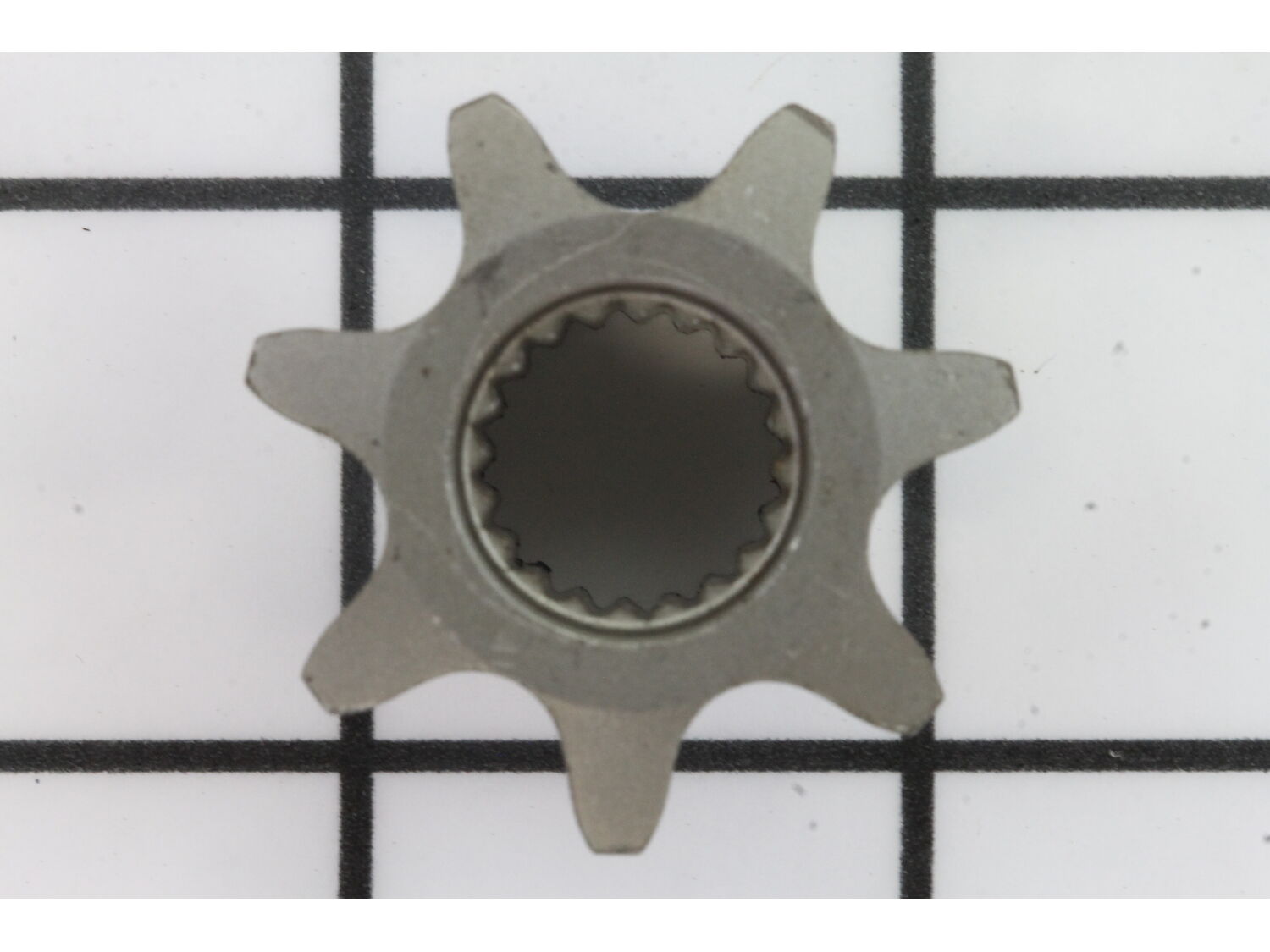

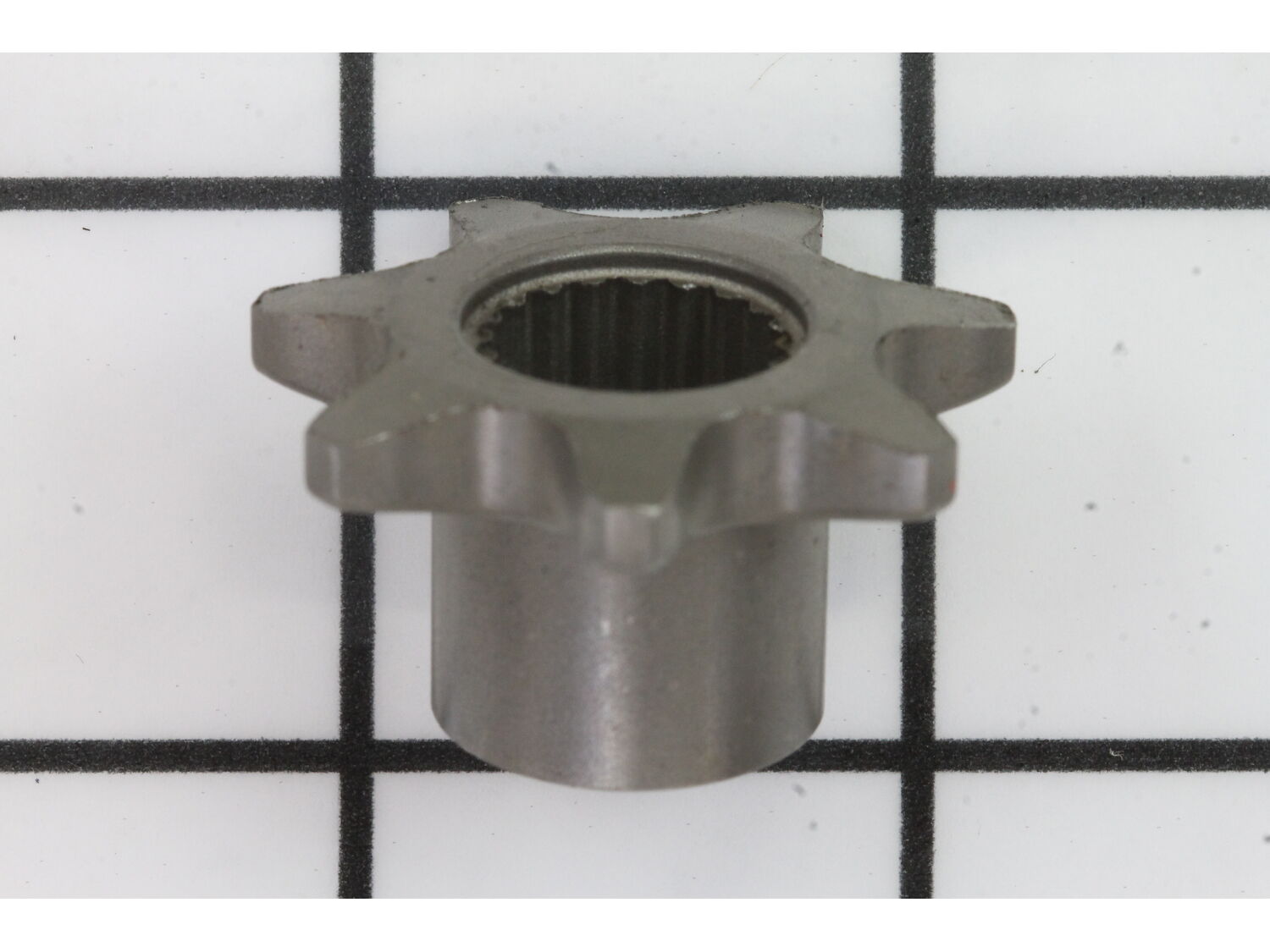

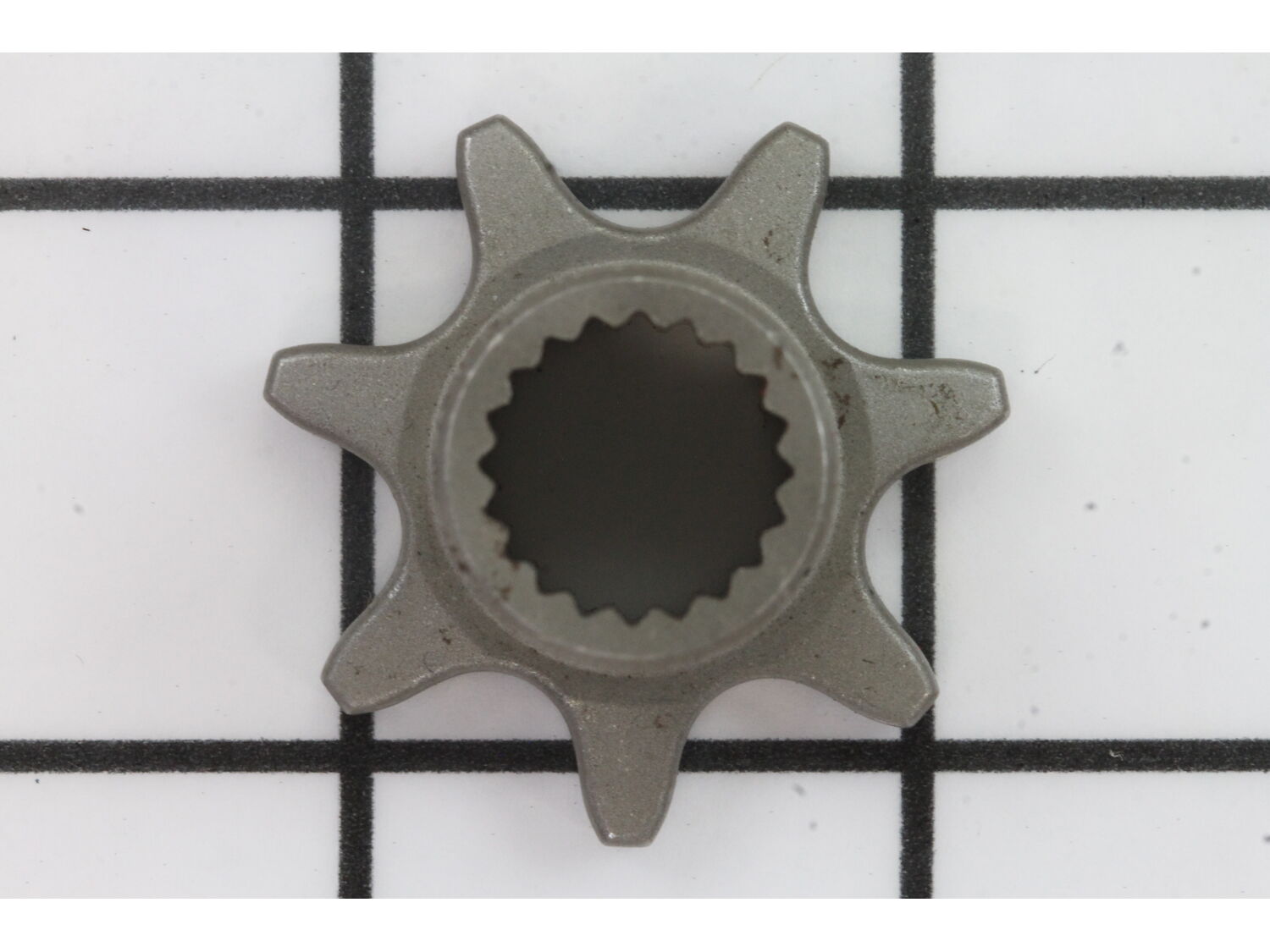

17835236-1-S-Ariens-09478400-SPROCKET- PINION 7T W/SPLINE 17835236-2-S-Ariens-09478400-SPROCKET- PINION 7T W/SPLINE 17835236-3-S-Ariens-09478400-SPROCKET- PINION 7T W/SPLINE Part Location Diagram of 09478400 Ariens SPROCKET- PINION 7T W/SPLINE

SPROCKET- PINION 7T W/SPLINE 09478400

Manufactured by:
Ariens
ERP Number:
ERP17835236
Part Number:
09478400
Original Equipment Manufacturer ?
$6.55
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Ariens
  • Gravely
This part works with the following products:
  • Snow Blower
Part# 09478400 replaces these:
04092600,

Model Cross Reference

This part works with the following models:
ERP Number: ERP17835236
Manufacturer Part Number: 09478400
Brand Model Number Description
Ariens 920020 Snow Blower - Compact 24 Track 120v
Ariens 920022 Snow Blower - 920022 (000801 - 004999) Compact Track 120v
Ariens 920028 Snow Blower - Compact 22 Track
Ariens 920032 Snow Blower - 920032 (000101 - 000556 ) Compact 24 Rapidtrak
Ariens 920318 Snow Blower - Compact 24 Track Ce
Ariens 920330 Snow Blower - 920330 (000101 - ) Compact 24 Rapidtrak Ce
Ariens 921013 Snow Blower - Deluxe 30 Snowblower
Ariens 921017 Snow Blower - Deluxe 24 Platinum Sno-Thro
Ariens 921018 Snow Blower - Deluxe 30 Platinum Snowblower
Ariens 921022 Snow Blower - Deluxe 28 Snowblower
Ariens 921023 Snow Blower - Deluxe 28 Track Snowblower
Ariens 921024 Snow Blower - 921024 (100000 - 149999) Deluxe 24
Ariens 921025 Snow Blower - 28" Power Brush
Gravely 921026 Snow Blower - 921026 (040000 - 041999) Power Brush 28
Ariens 921027 Snow Blower - Deluxe 28 Snowblower
Ariens 921028 Snow Blower - Ariens Snowblower Model 921028 Parts
Ariens 921029 Snow Blower - Deluxe 30 Platinum Snow Thrower
Ariens 921030 Snow Blower - 921030 (100000 - 149999) Deluxe 28
Ariens 921031 Snow Blower - Deluxe 24 Snowblower
Ariens 921032 Snow Blower - 921032 (100000 - 149999) Deluxe 30
Ariens 921034 Snow Blower - Deluxe 28
Ariens 921035 Snow Blower - Deluxe 28 Inch Snow Blower Briggs And Stratton
Ariens 921036 Snow Blower - Deluxe 28 Inch Snow Blower Briggs And Stratton
Ariens 921037 Snow Blower - Deluxe 28 Snow Thrower
Ariens 921038 Snow Blower - 921038 (000101 - 099999) Platinum Sho 24
Ariens 921039 Snow Blower - Platinum 28 Inch Sho Track Snow Blower Ariens Ax Engine
Ariens 921040 Snow Blower - 921040 (000101 - 099999) Platinum Sho 30
Ariens 921044 Snow Blower - Deluxe 28 Inch Snow Blower Ariens Ax 306cc Engine
Ariens 921045 Snow Blower - Deluxe 24
Ariens 921046 Snow Blower - 921046 (180000 - 199999) Deluxe 28
SPROCKET- PINION 7T W/SPLINE
$ 6.55
Special Order
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
