10463239-1-M-Powermatic-6816292-On/off Switch (3hp 1ph. 230 Vo

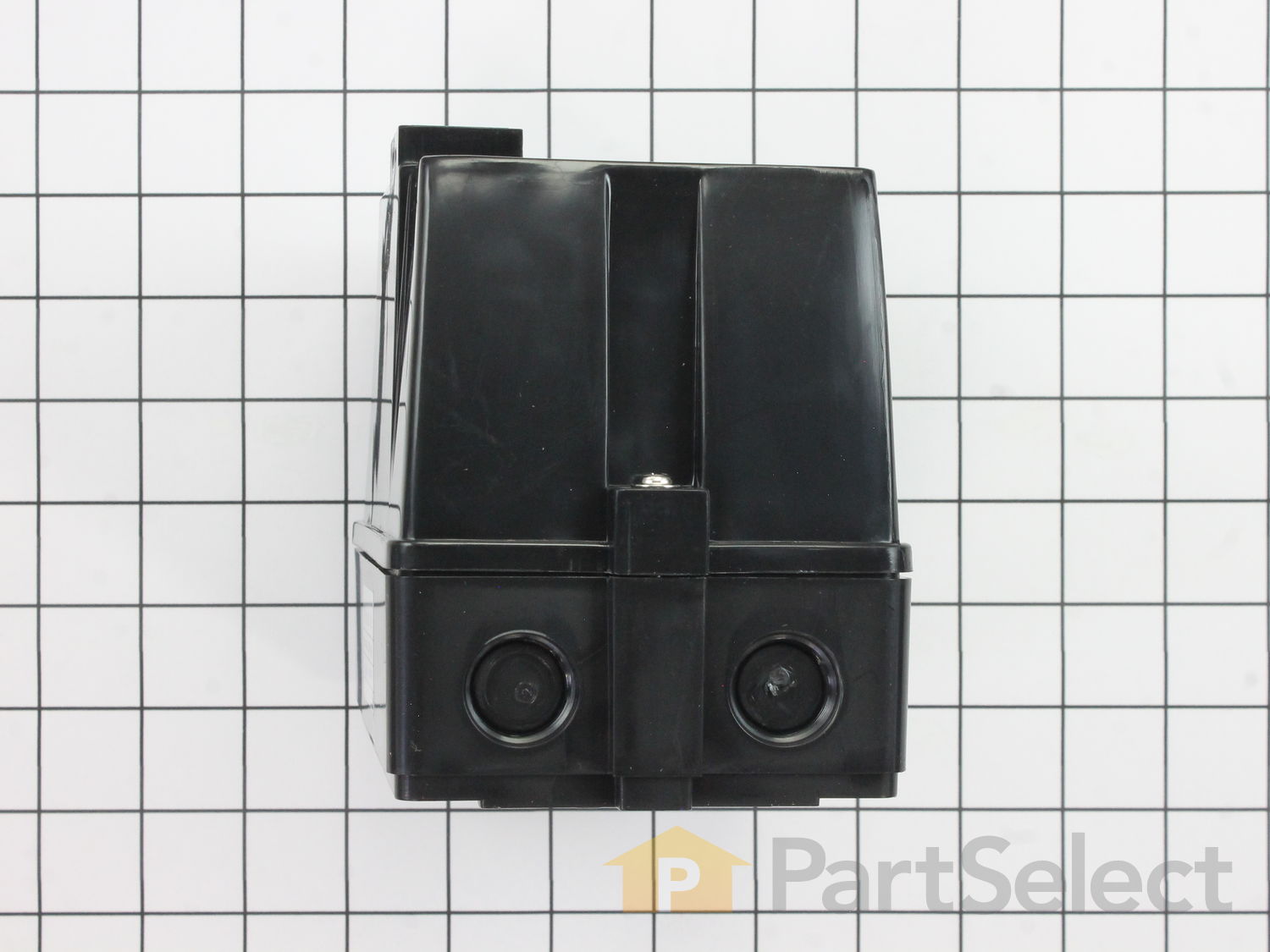

( Grid squares measure 1x1 inch )

10463239-1-S-Powermatic-6816292-On/off Switch (3hp 1ph. 230 Vo

10463239-2-S-Powermatic-6816292-On/off Switch (3hp 1ph. 230 Vo

10463239-3-S-Powermatic-6816292-On/off Switch (3hp 1ph. 230 Vo

On/off Switch (3hp 1ph. 230 Vo 6816292

Manufactured by:: Powermatic
ERP Number:: ERP10463239
Part Number:: 6816292

$250.22

★★★★★

1 Review

Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(4 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Description Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

This on/off switch is an authentic OEM replacement part sourced directly from the manufacturer. It is compatible with multiple models of Powermatic saws. This switch contains the on/off function, overload, and mag starter in it for safety purposes. It is sold individually, and it requires a screwdriver to install.

Troubleshooting

This part works with the following brands:

Powermatic

This part works with the following products:

Shaper
Table Saw

★

Customer Part Reviews

4.0

Average Rating (out of 5):

★★★★★

(1 Review)

Click to filter by ratings:

5 stars

0
4 stars

1
3 stars

0
2 stars

0
1 star

0

< Prev
1
Next >

Sort by:

★★★★★

Worked great

The motor starter switch, upon arrival, and was in good condition but was more than I wanted to install myself. I hired an electrician friend to install the switch and was glad I did. The interior wiring had changed slightly but was no problem for someone who understood what to check and change. I’m pleased.

Guest - May 14, 2022

Verified Purchase

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

< Prev
1
Next >

Sort by:

I am looking for the switch that slides on to the front of the NHD magnetic contactor that the green button engages when you push it. I had to change the magnetic contactor on my powermatic 66 and I accidentally purchased a 24 volt coil instead of a 220 volt coil so when I pushed the button it blew out the switch. I have a 220 volt contactor now, but I need the switch. I can send a photo of the part I need to help my explanation a little better. Any assistance you can provide would be greatly appreciated as I have been down 3 months on this saw over a stupid $3 button. Cheers,Victor

Victor For model number 66 TA SAW - November 3, 2023

Hi Victor, Thank you for your question. The part number for the switch is 6816292. We hope this helps!

eReplacementParts Team

November 3, 2023

Did this question help you?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(4 rated repairs) ?

< Prev
1
Next >

Sort by:

Switch went bad

Robert from MACON, Georgia

5 of 5 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 30 - 60 mins
Tools:: Screw drivers, Socket set
Parts Used:: 6816292

Removed the front of the switch cover and made a wiring diagram.
Then remove the rest of the switch from the saw and disconnected the wires
Connected the wires to the new switch and mounted it on the saw

Did you find this story helpful?

Would not stay running after releasing the on button

Roger from El Cajon, California

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 6816292

Disconnect power
Remove the cover. Two screws one top and bottom
Loosen the lugs for the input and output cables a total of 6.
Mark where each of the leads go (take a picture)
Pull cables through chassis access holes. Have to loosen strain release clamps
Remove assembly from saw by unscrewing the two scre ... Read more

Read less

Did you find this story helpful?

Switch broke after 14 years of professional use.

Todd from GRANTS PASS, Oregon

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers, Wrench (Adjustable)
Parts Used:: 6816292

Unplug power cord! Open cover on old switch, took photo. To help remember exactly how it was wired. loosened all inside wires coming in and going to motor. Unscrewed starter box from saw. Install supply or line on top of saw, as it is easier. Install load wires to motor. Reinstall cover, plug back in.

Did you find this story helpful?

Bad switch

Patrick from Litchfield park , Arizona

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 15 - 30 mins
Tools:: Nutdriver, Screw drivers
Parts Used:: 6816292

Remove and replace.

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP10463239
Manufacturer Part Number: 6816292

Brand	Model Number	Description
Powermatic	27	Shaper - Spindle Shaper
Powermatic	66	Table Saw - 10-Inch Table Saw
