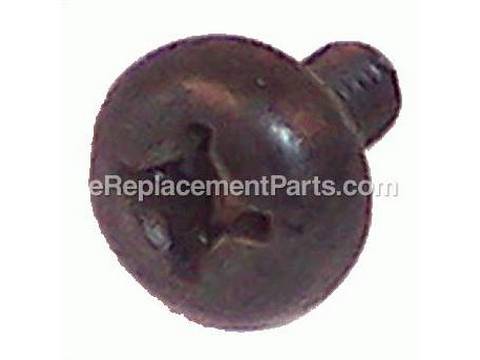

19512362-1-M-Bosch Tool-2610909504-SCREW

( Grid squares measure 1x1 inch )

19512362-1-S-Bosch Tool-2610909504-SCREW

SCREW 2610909504

Manufactured by:: Bosch Tool
ERP Number:: ERP19512362
Part Number:: 2610909504

$5.95

A Bit Difficult

More than 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Dremel
Skil
Bosch

This part works with the following products:

Scroll Saw

Part# 2610909504 replaces these:

2610909504,

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

More than 2 hours

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Rotor arm broke ino two pieces near end nearest blade placement

Frank from LAFAYETTE, Indiana

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: More than 2 hours
Tools:: Screw drivers, Socket set
Parts Used:: 2615296201, 2610909504

1. Removed saw from table
2. Removed fasteners to get saw to split in half
3. Ordered parts and took a few pictures with my phone
4. Removed broken ends of old Rotor
5. Took parts off old rotor and installed them on new one
6. Lubricated pivot points on new Rotor
7. installed both ends of rotor in their ... Read more

Read less

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP19512362
Manufacturer Part Number: 2610909504

Brand	Model Number	Description
Dremel	1671	Scroll Saw - (F0134A) Scroll Saw
Dremel	1672	Scroll Saw - (F01300) Scroll Saw
Dremel	1680	Scroll Saw - 16Inch. Scroll Saw
Dremel	1695	Scroll Saw - (F01300) Scroll Saw
Skil	3330	Scroll Saw - TYPE 1 (F01299) 16 in. Scroll Saw
Skil	3333	Scroll Saw - TYPE 1 (F01200) 16 in. Scroll Saw
Bosch	MISC	Miscellaneous - Misc
