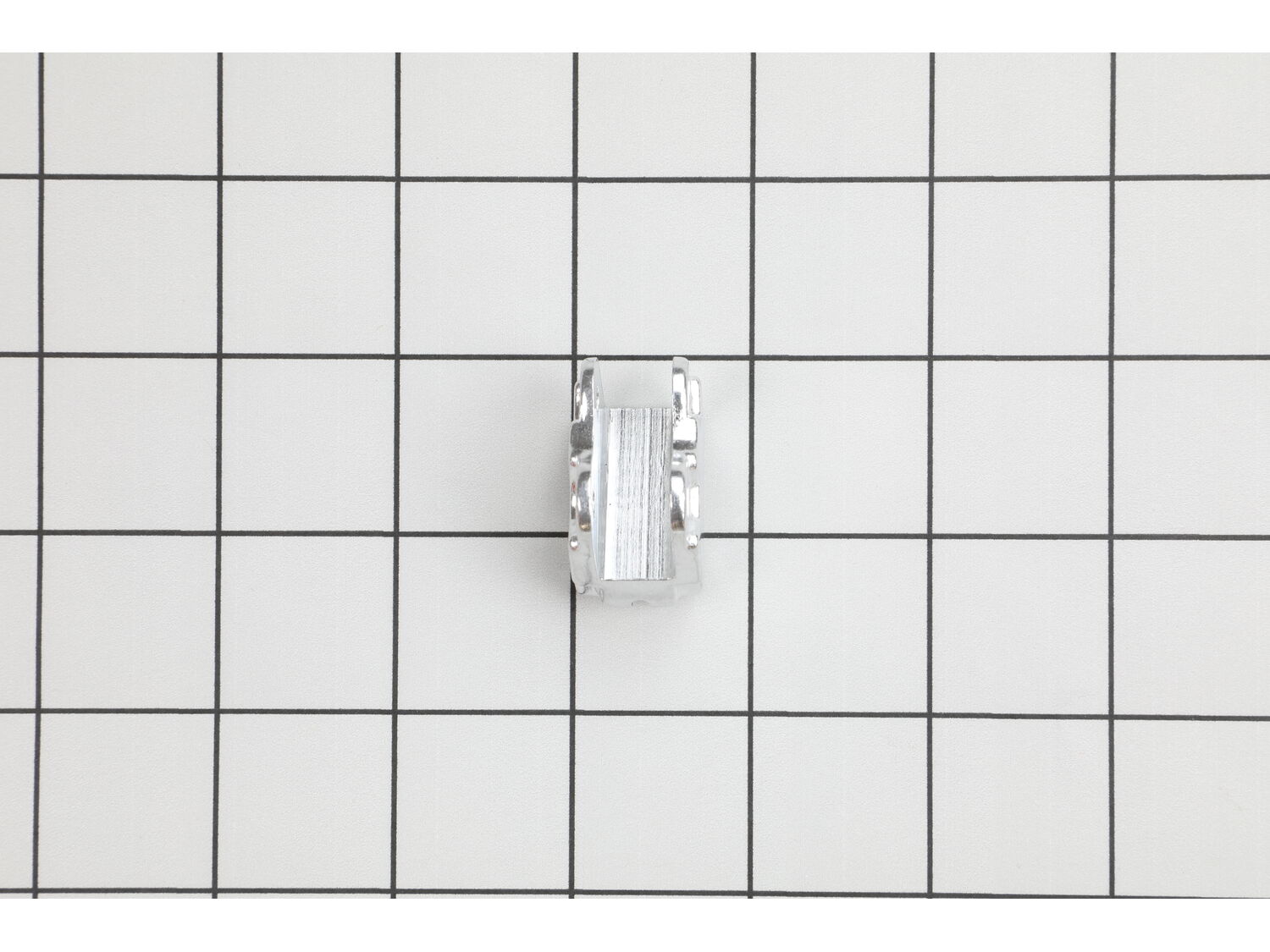

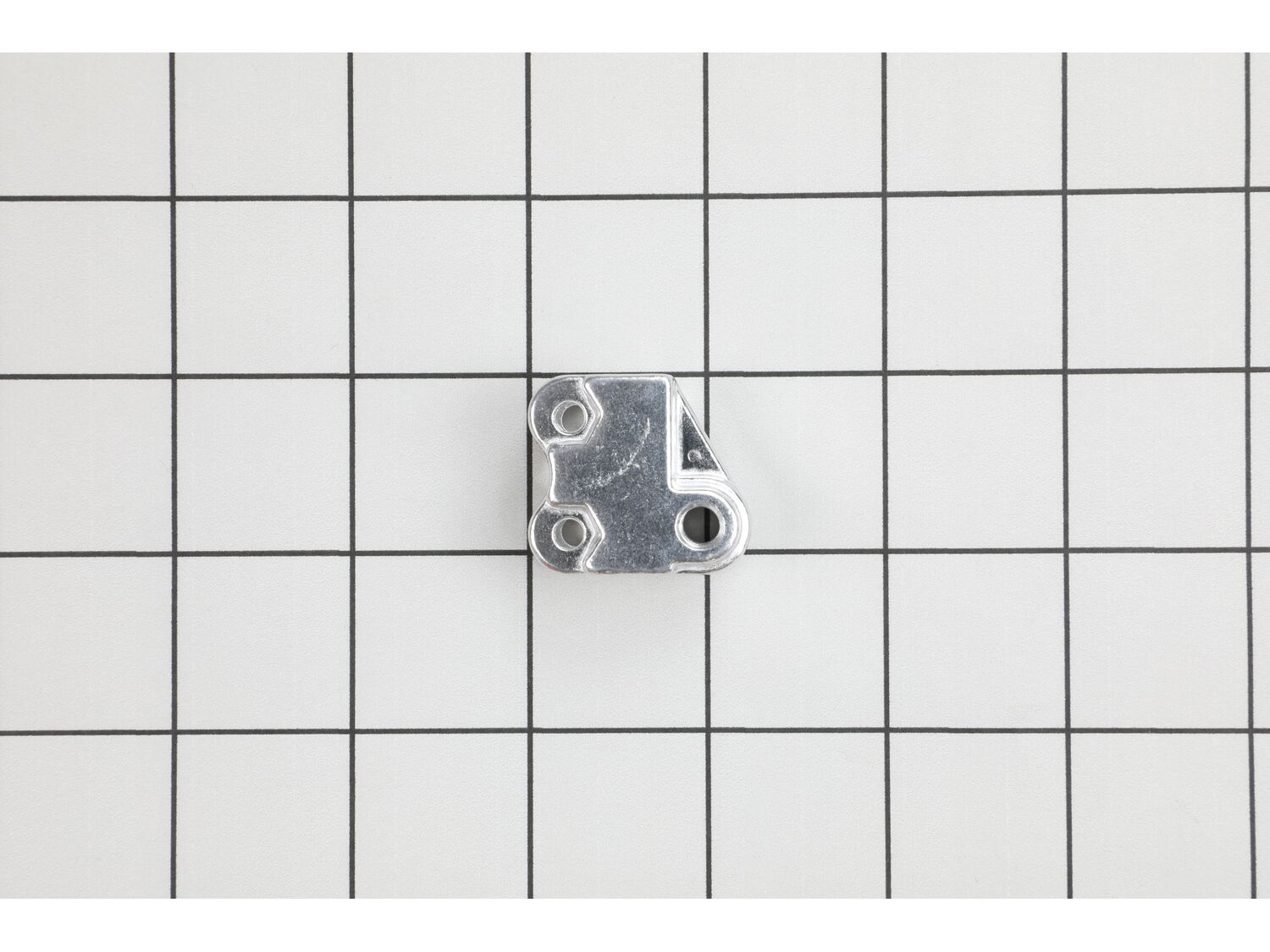

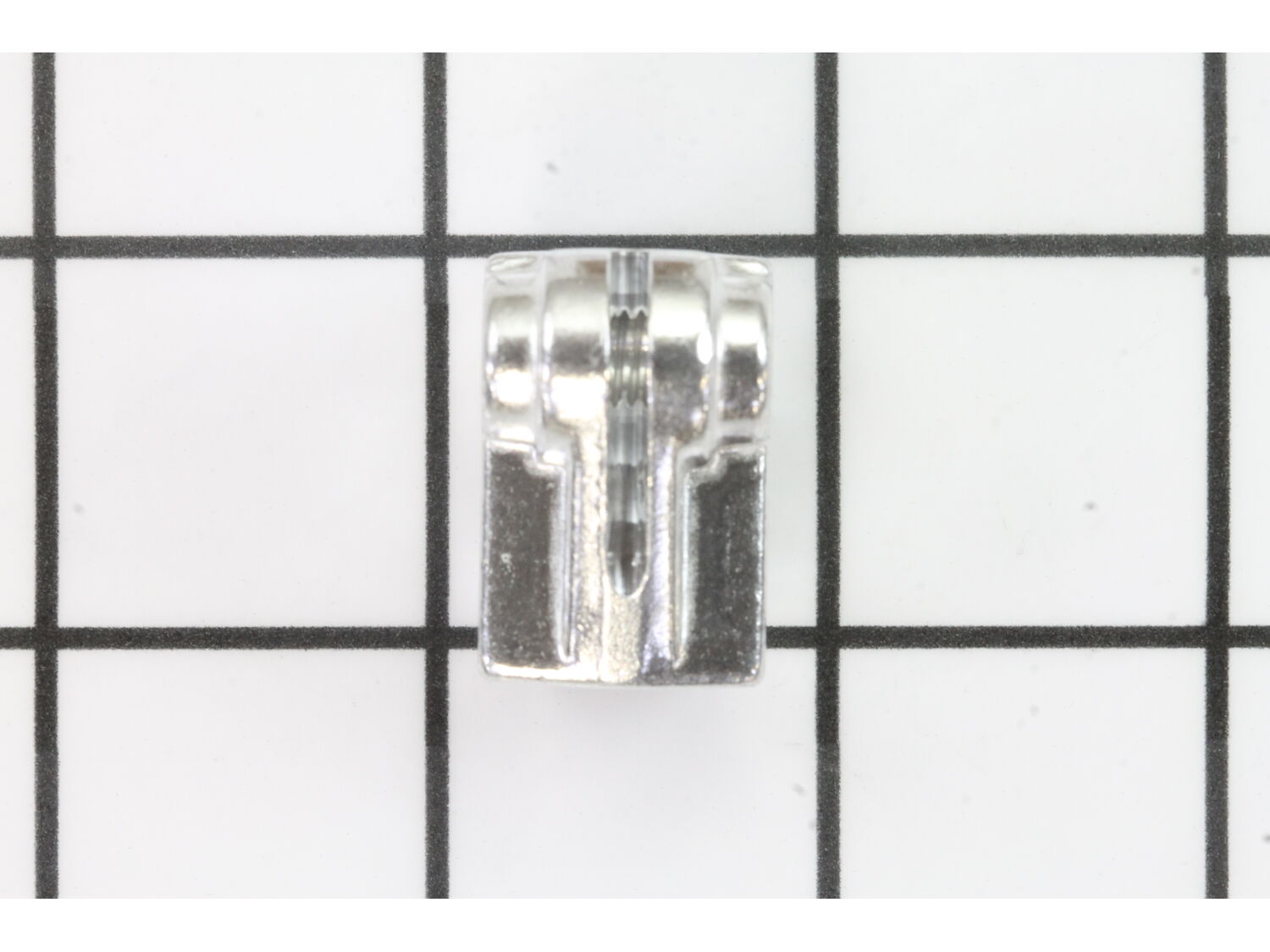

10331737-1-M-Delta-DPEC002120-Blade Chuck

( Grid squares measure 1x1 inch )

10331737-1-S-Delta-DPEC002120-Blade Chuck

10331737-2-S-Delta-DPEC002120-Blade Chuck

10331737-3-S-Delta-DPEC002120-Blade Chuck

Blade Chuck DPEC002120

Manufactured by:: Delta
ERP Number:: ERP10331737
Part Number:: DPEC002120

$48.08

Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(4 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Frequently Purchased Together Troubleshooting Repair Instructions Model Cross Reference

Frequently Purchased Together

Blade Clamp Knob Assembly (inc

$18.23

Troubleshooting

This part works with the following brands:

Delta

This part works with the following products:

Scroll Saw

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(4 rated repairs) ?

< Prev
1
Next >

Sort by:

threads stripped in blade chuck

Peter from MERCHANTVILLE, New Jersey

2 of 2 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Parts Used:: DPEC002120

this is a very simple repair. simply remove two small bolts , remove brokek part, then do the reverse with the new part.

Did you find this story helpful?

blade attachment failure

Michael from Dover, Tennessee

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Parts Used:: DPEC002120

remove blade holder
install new ones
replace new blade holder

Did you find this story helpful?

blade chuck wore out, time to replace

Bobby from Loretto, Tennessee

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Socket set
Parts Used:: DPEC002120

I took my tools, Small socket and star wrench, took off the old chuck put on the new, and was good to go.

Did you find this story helpful?

Blade chuck screw hole that holds the tension screw broken

Robert from SYRACUSE, New York

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Parts Used:: DPEC002120

Loosened the allen screws and replaced the blade chuck - very quick and easy.

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP10331737
Manufacturer Part Number: DPEC002120

Brand	Model Number	Description
Delta	40-694	Scroll Saw - 20" Variable Speed Scroll Saw
Delta	40-695	Scroll Saw - 20 in. Variable Speed Scroll Saw
