Part Location Diagram of 516306-1 Makita Armature Assembly 115v
See part 6 in the diagram

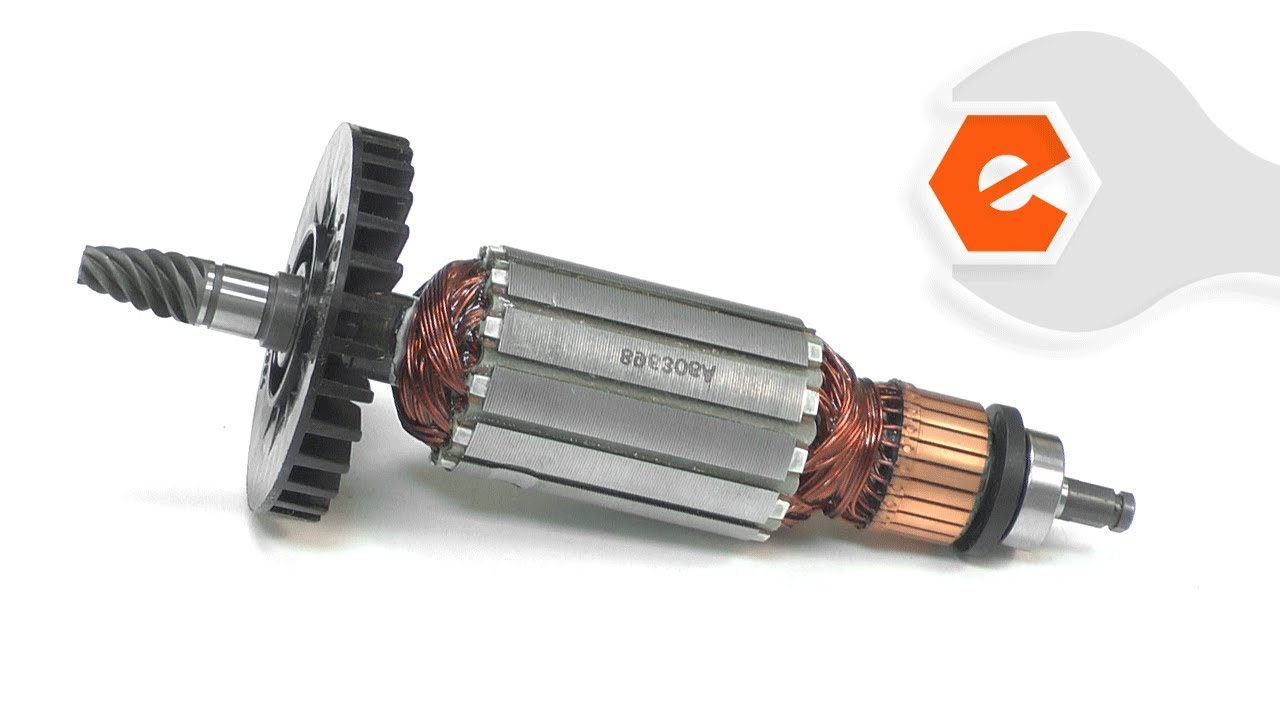

Replacing your Makita Sander Armature Assembly 115v
( Grid squares measure 1x1 inch )

Armature Assembly 115v 516306-1

Manufactured by:
Makita
ERP Number:
ERP10152256
Part Number:
516306-1
Original Equipment Manufacturer ?
$165.60
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Product Description

?

It is a genuine replacement item that is supplied directly from the original equipment manufacturer for use with Makita sanders and polishers. The armature is the center component is an electric motor which is at the heart of the tool, over time it may wear out and begin to fail eventually requiring a replacement. If the tool is continuously overloaded then the copper windings may become extremely hot and melt the insulation. Please note this high-quality part is sold individually.

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Sander
  • Sander Polisher

Videos For installing this part.

?
Replacing your Armature Assembly 115v

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Model Cross Reference

This part works with the following models:
ERP Number: ERP10152256
Manufacturer Part Number: 516306-1
Brand Model Number Description
Makita 9227C Sander Polisher - Sander
Makita 9227CY Sander Polisher - Sander / Polisher
Makita 9227CZ Sander - Sander
Makita 9237C Sander Polisher - 7" Polisher
Makita 9237CX3 Sander - Sander
