Part Location Diagram of 520432002 Ryobi RING FAN
See part A-34 in the diagram

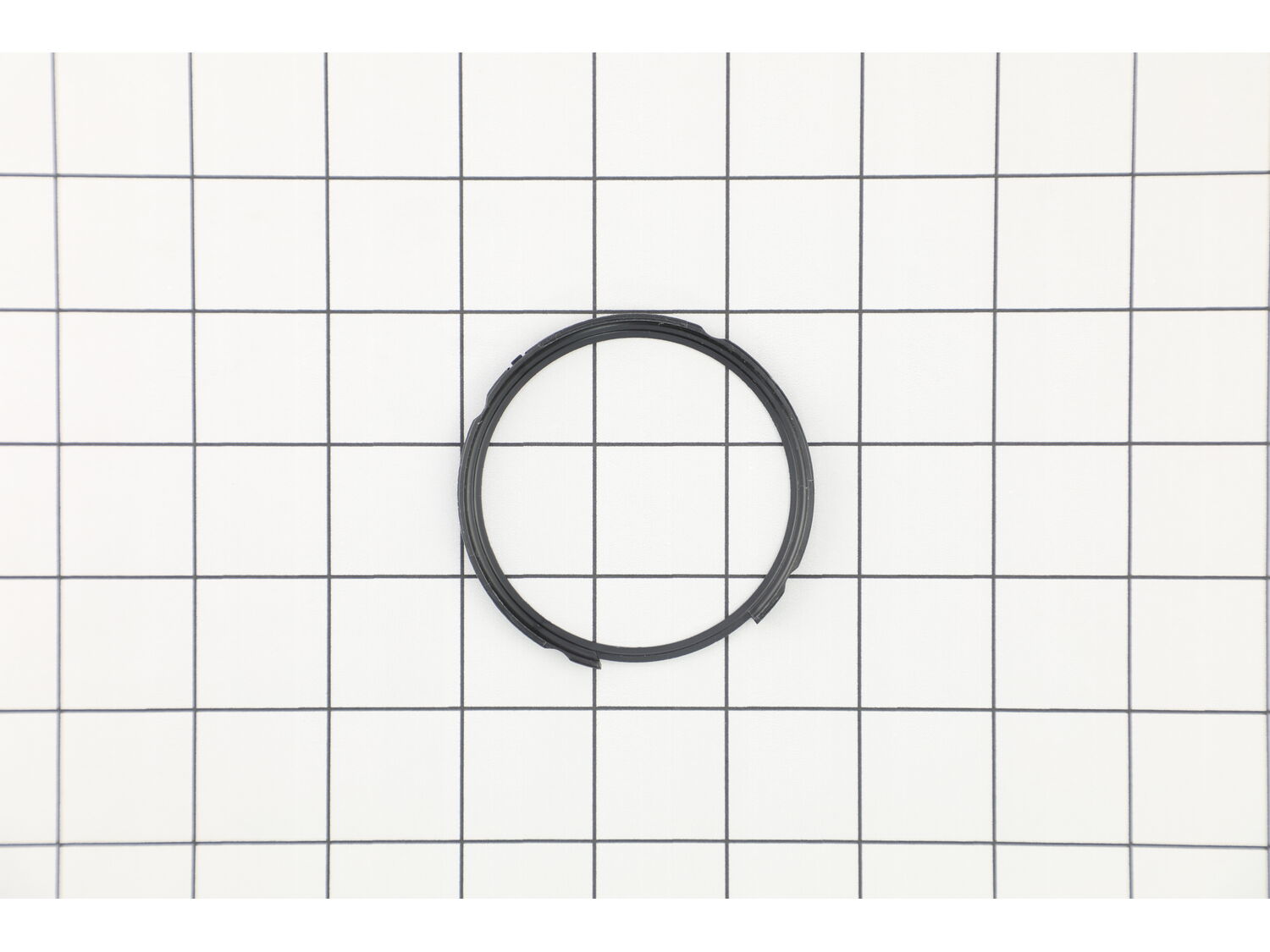

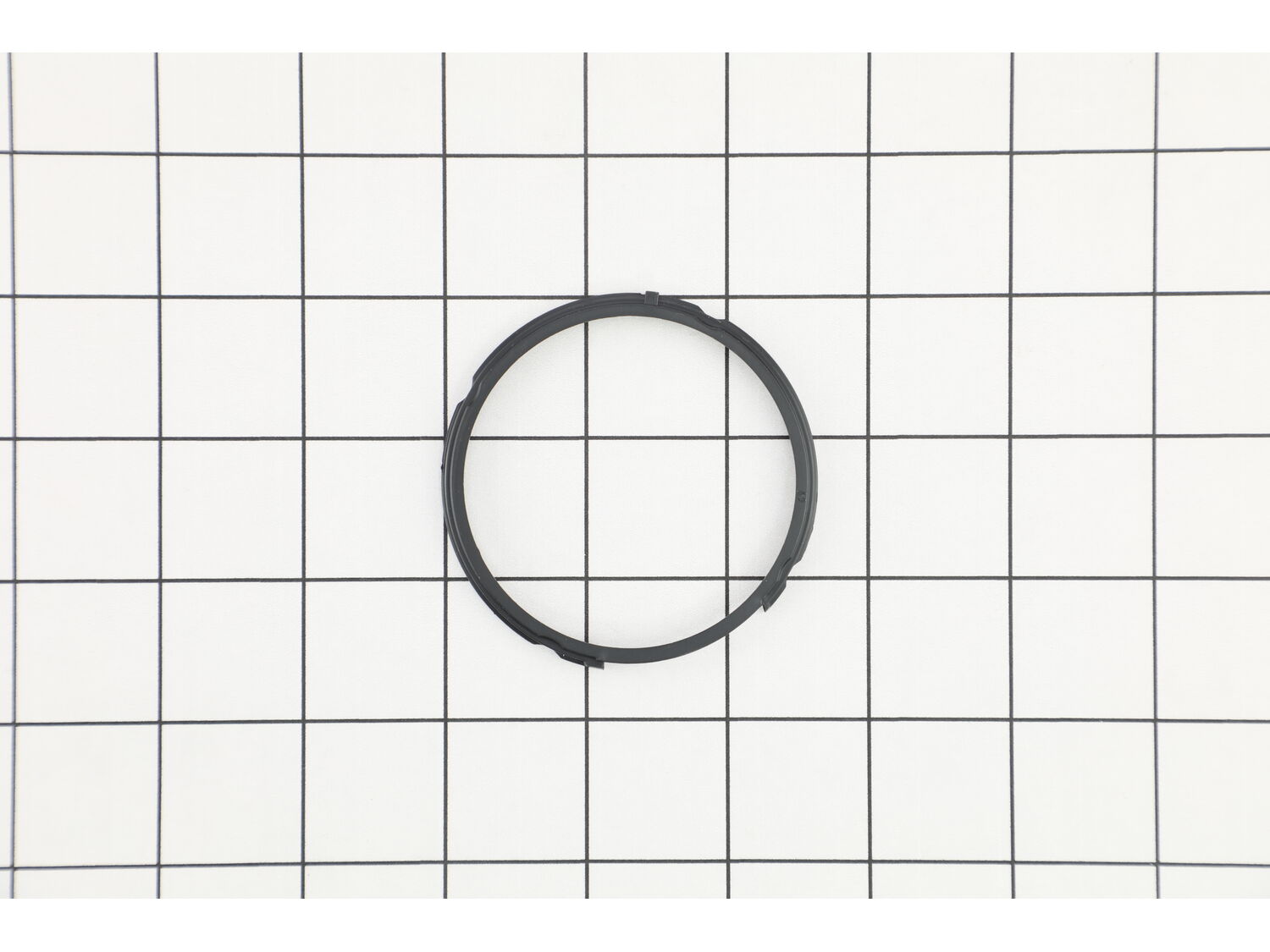

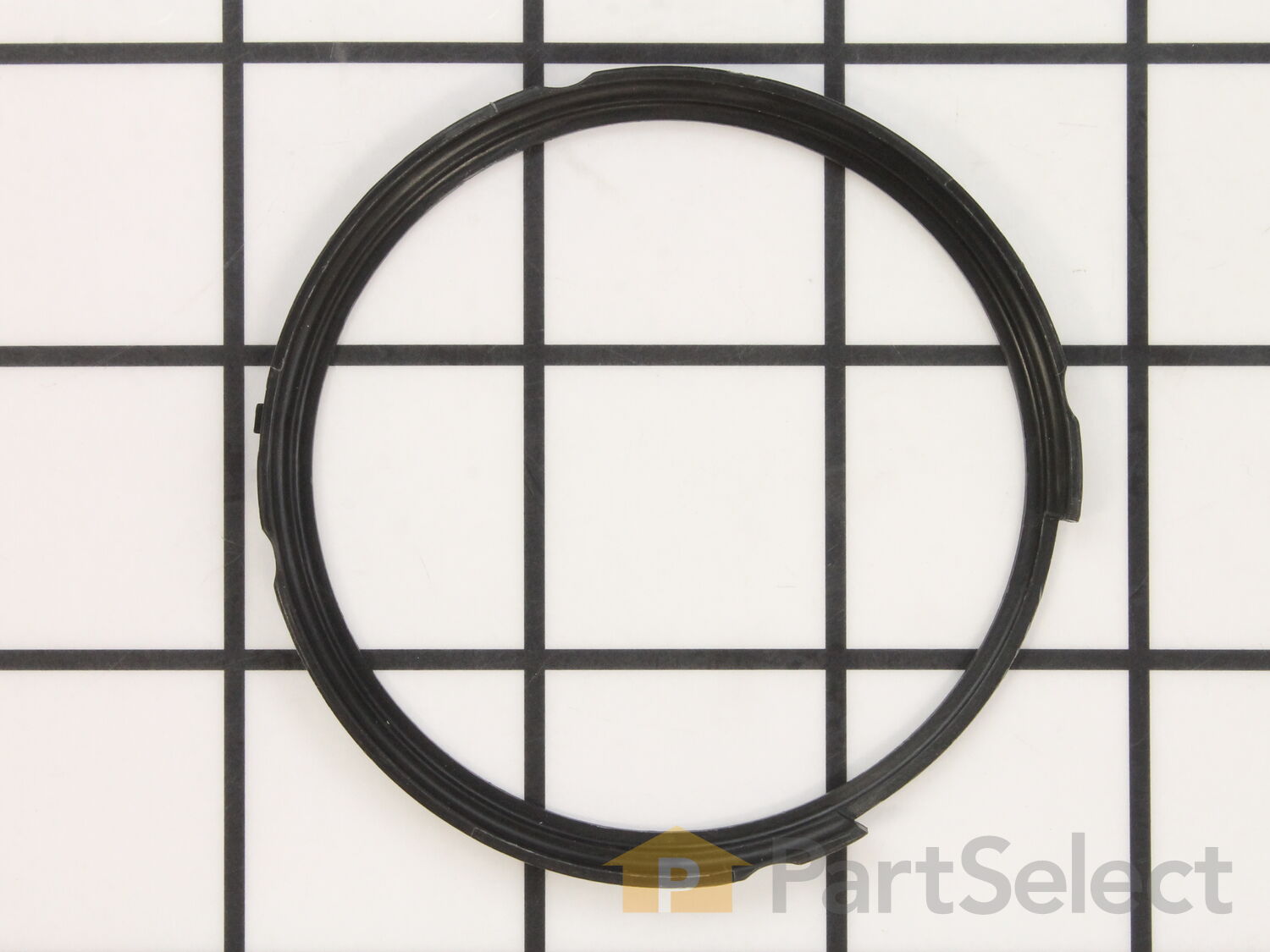

( Grid squares measure 1x1 inch )

RING FAN 520432002

Manufactured by:
Ryobi
ERP Number:
ERP18695455
Part Number:
520432002
Original Equipment Manufacturer ?
$6.16
Special Order

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Ridgid
This part works with the following products:
  • Sander Polisher
  • Sander Grinder
Part# 520432002 replaces these:
520432002,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Internal parts broken

Seth from Kasota, Minnesota

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
520432002, 520431002, 301859003
Removed the screws from the housing and separated them. From there I was able to remove the parts that needed to be replaced. Then screwed the housing back together.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18695455
Manufacturer Part Number: 520432002
Brand Model Number Description
Ridgid R2501 Sander Polisher - 1/4" Sheet Sander
Ridgid R25011 Sander Grinder - Ridgid R25011 Parts
