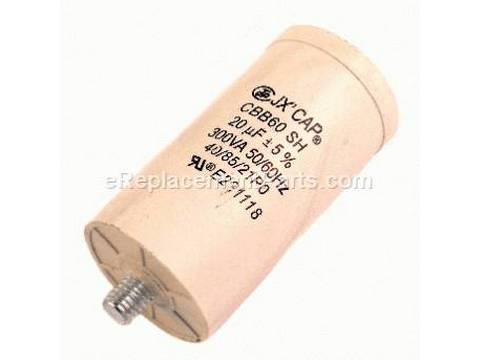

This is a genuine OEM replacement part used with the PCB420SA Type 1 Belt / Disc Sander. The Porter Cable capacitor is secured to the capacitor support in the base, and is sold individually. This important item stores electrical energy for the power tool. You will need a screwdriver for the installation.
1. Suspected capacitors, because those were the only affordable parts to replace
2. Quickly & easily found correct parts on website and ordered them
3. Parts came quickly and were correct
4. Opened up the case and flip it over to have full access
5. Took picture of where wires go, before I disconnected anything
... Read more />6. Pulled connectors off capacitors
7. Installed new capacitors
8. Tried it out, spun right up to full speed
9. Reassembled case
10. lived happily ever after
My sander was mounted to a table so to access the removable panel on the bottom of the unit, it first had to be unbolted from the table. Next step was to remove the bottom panel, 4 phillips screws. I opted to replace both capacitors since I could see that one was leaking and suspected that the other one was probably strained. One was secu
... Read morered by a nut on the end of it, the other held by a band clamp, several minutes to swap them out, take note of where the wires are fastened, however, they are AC, so it shouldn\'t matter. I also purchased a relay, but didnGÇÖt need it and will save for future. I did a quick test with the bottom panel off and it ran great, so I installed the bottom panel, re bolted the sander to the table and I am back in business. One thing to note, the parts received were exact replacements, not cheap substitutes, buy with confidence.
Removed wires from switch and both capacitors replaced capacitors and put wires back on switch tested operations and amp draws. Sander starts and runs great now.
Determined that relay designed to drop out starting capacitor, after belt sander motor was started, didnGÇÖt isolate the start capacitor from the run circuit. Replacing relay and capacitor solved the problem.
