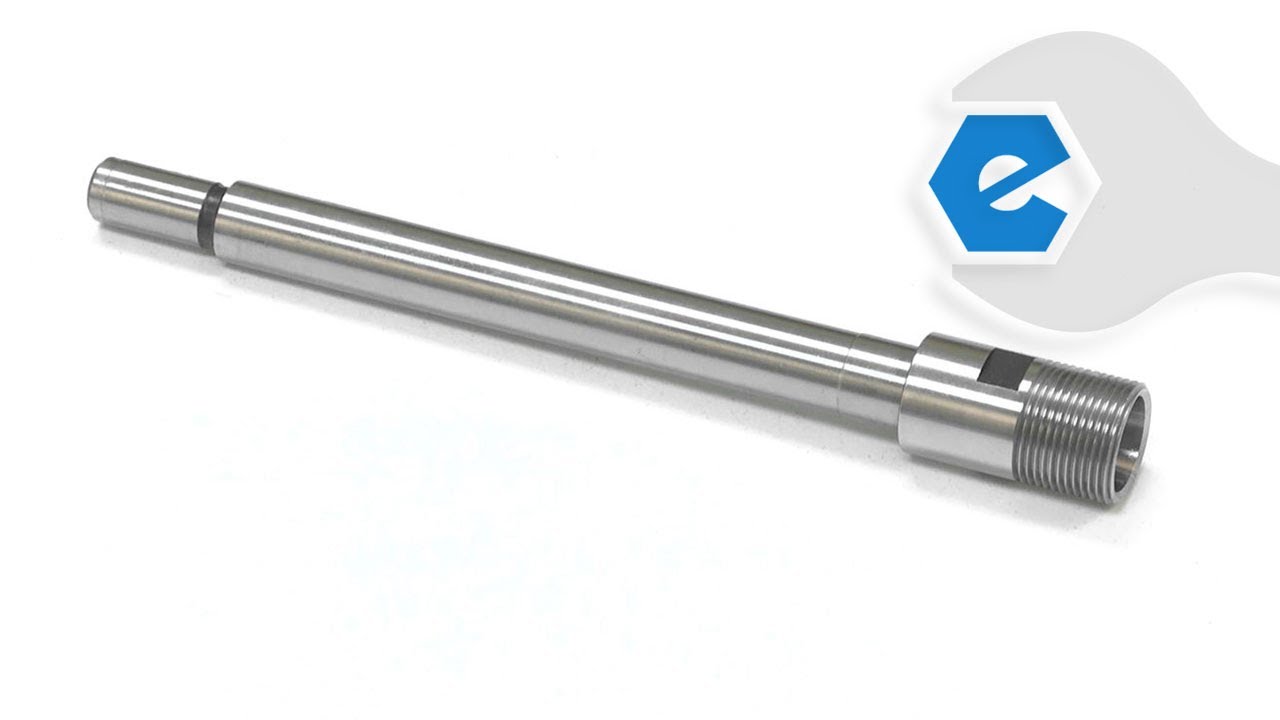

This is an original Milwaukee part manufactured for use with d.i. die grinders. This spindle shaft secures the collet, and is driven by the spindle gear. The shaft requires two bearings, it is recommended to inspect the bearings when servicing the spindle shaft, because the bearings can wear, and worn bearings could be the cause of damage to the spindle shaft. This spindle shaft is sold individually, the bearings, and spindle gear are available separately.
Removed the nose section from the tool. Removed the internal split ring from the nose of the unit. Tapped the old shaft out from the nose end. Using a long small diameter punch, knock the old nose bearing out. Apply a small amount of additional grease to the inside of the new bearing. Tap the new nose bearing into place & replace intern
... Read moreal split ring. Using the Collet nut without the internal teeth, drive the new shaft into the new nose bearing. Taking the new gear end bearing & the drive gear you removed from the old shaft, drive them firmly onto the shaft. Check for ease of rotation & put some new grease in the cup where the gears mesh. Attach the rebuilt nose section to the body of tool, Tighten the 4 screws firmly. Replace Collet jaws in Collet nut and spin shaft , making sure there are no binds in the rotation. Plug tool in & check for any vibrations. You\'re ready to get back to work now.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10127646
Manufacturer Part Number: 38-50-5211
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
