Part Location Diagram of W11609822 Whirlpool Wire Harness
See part 25 in the diagram
( Grid squares measure 1x1 inch )

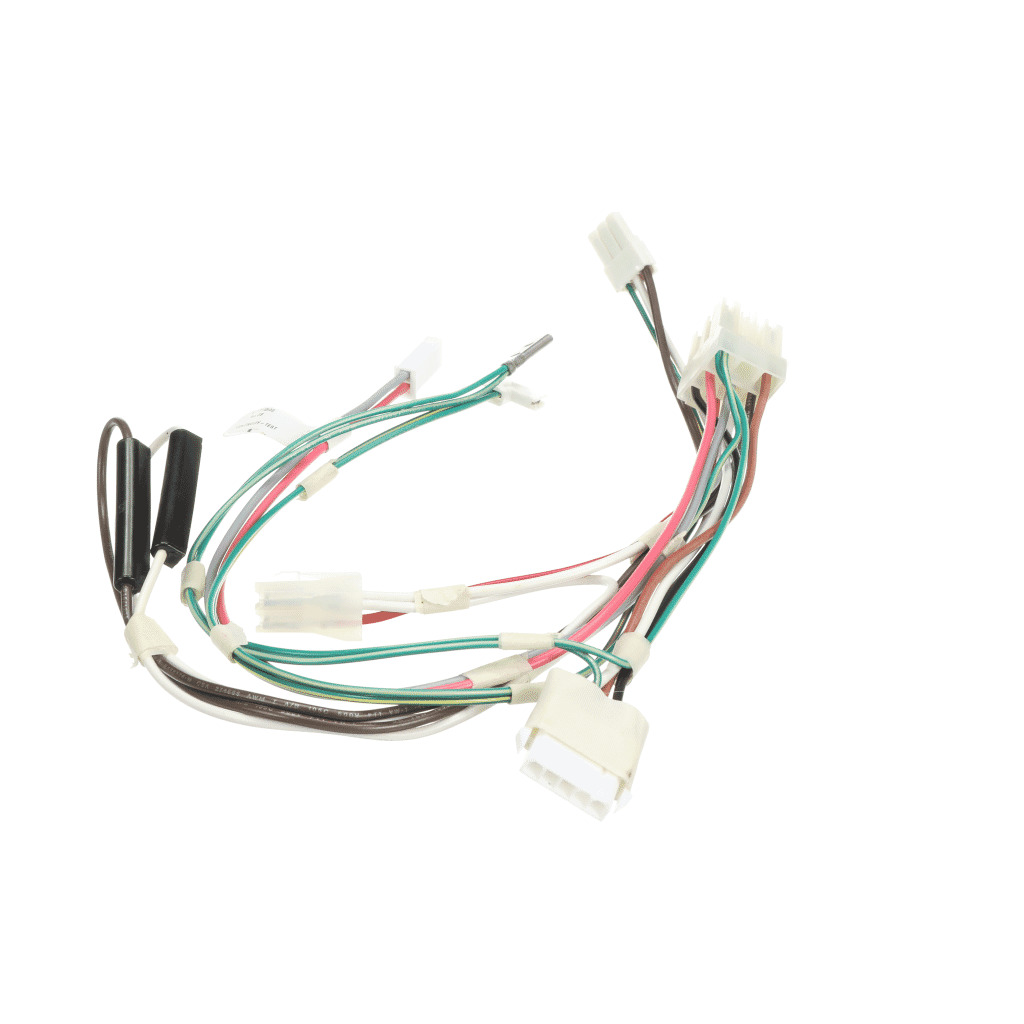

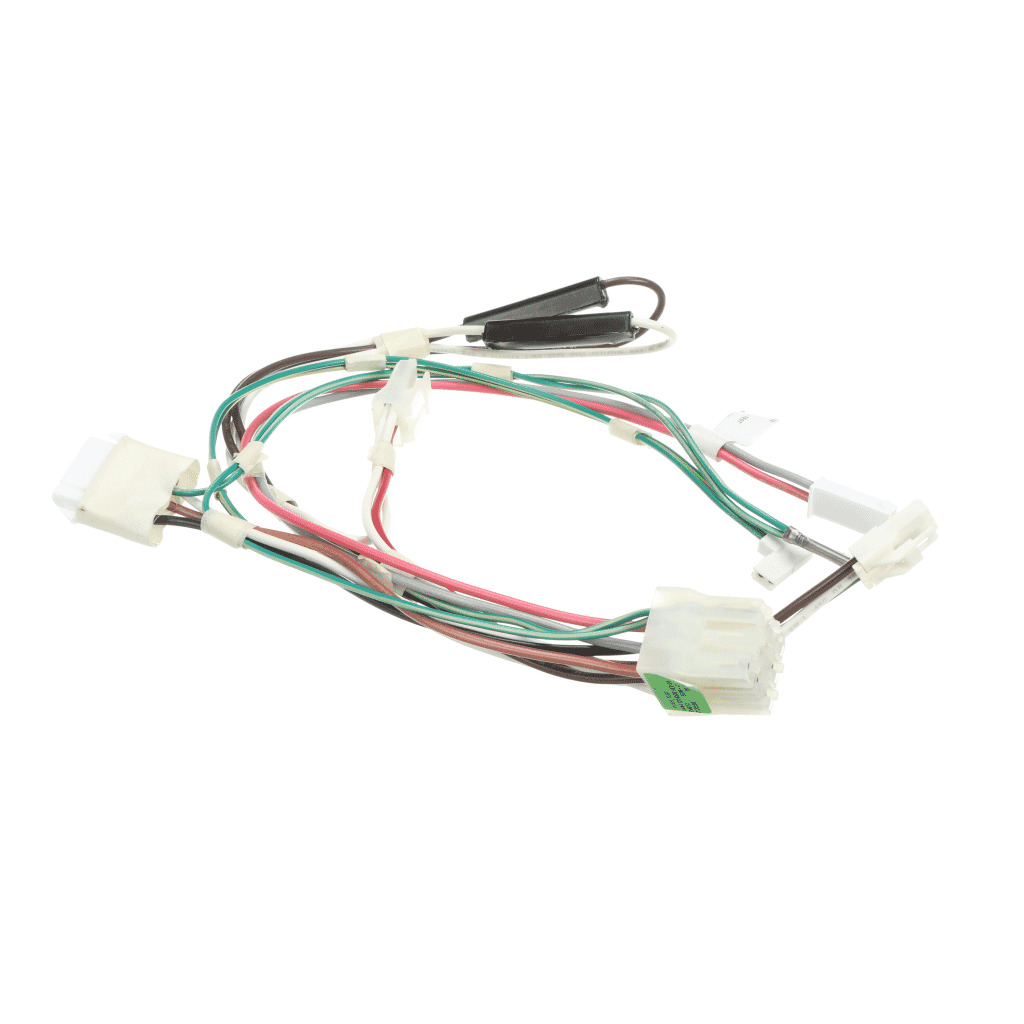

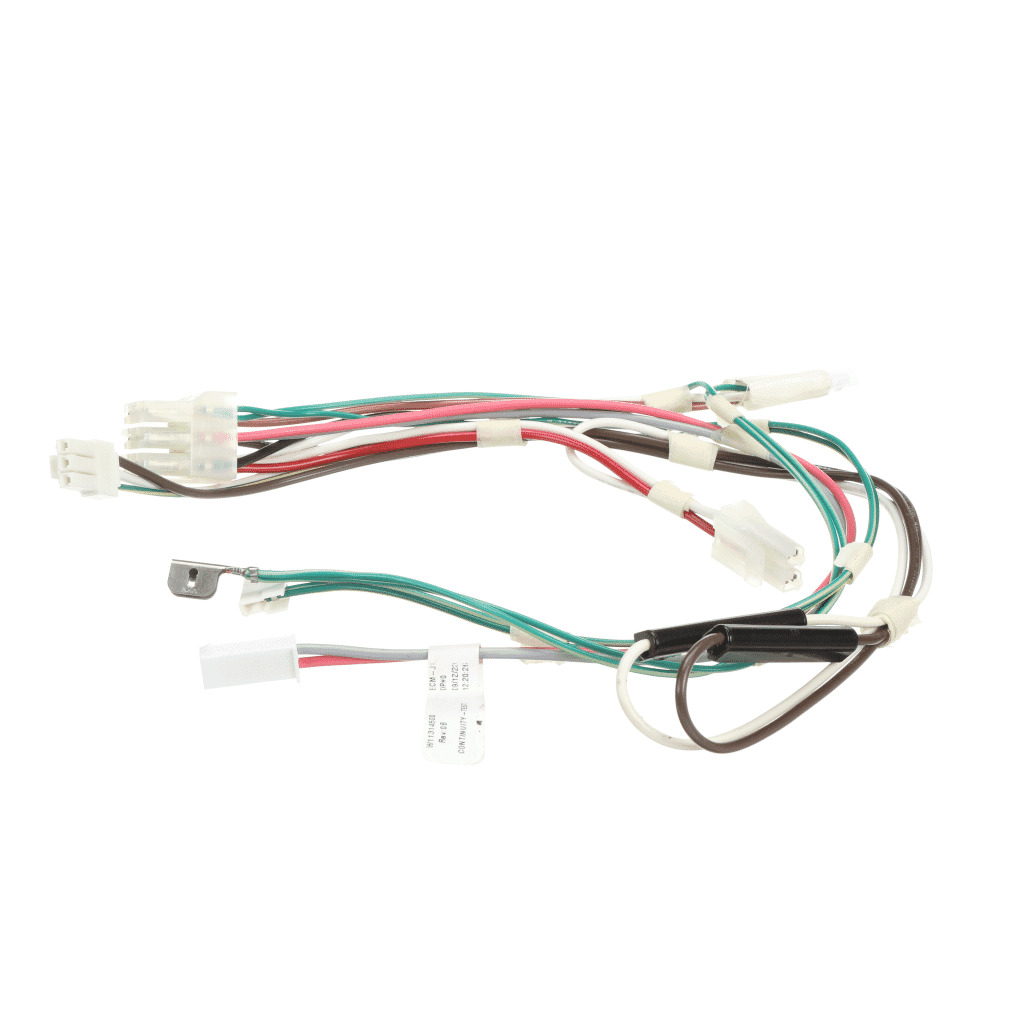

Wire Harness W11609822

Manufactured by:
Whirlpool
ERP Number:
ERP16744894
Part Number:
W11609822
Original Equipment Manufacturer ?
$51.65
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Whirlpool
This part works with the following products:
  • Refrigerator
Part# W11609822 replaces these:
W11314500,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16744894
Manufacturer Part Number: W11609822
Brand Model Number Description
Whirlpool WRT518SZFB04 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRT518SZFG04 Refrigerator
Whirlpool WRT518SZFM04 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRT518SZFW04 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5028PB01 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5028PM01 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5028PW01 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5328PB00 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5328PB01 Refrigerator
Whirlpool WRTX5328PM00 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5328PM01 Refrigerator
Whirlpool WRTX5328PW00 Refrigerator - Whirlpool Top-Mount Refrigerator
Whirlpool WRTX5328PW01 Refrigerator
