Part Location Diagram of W10849509 Whirlpool Dor-fip
See part 1A in the diagram
( Grid squares measure 1x1 inch )

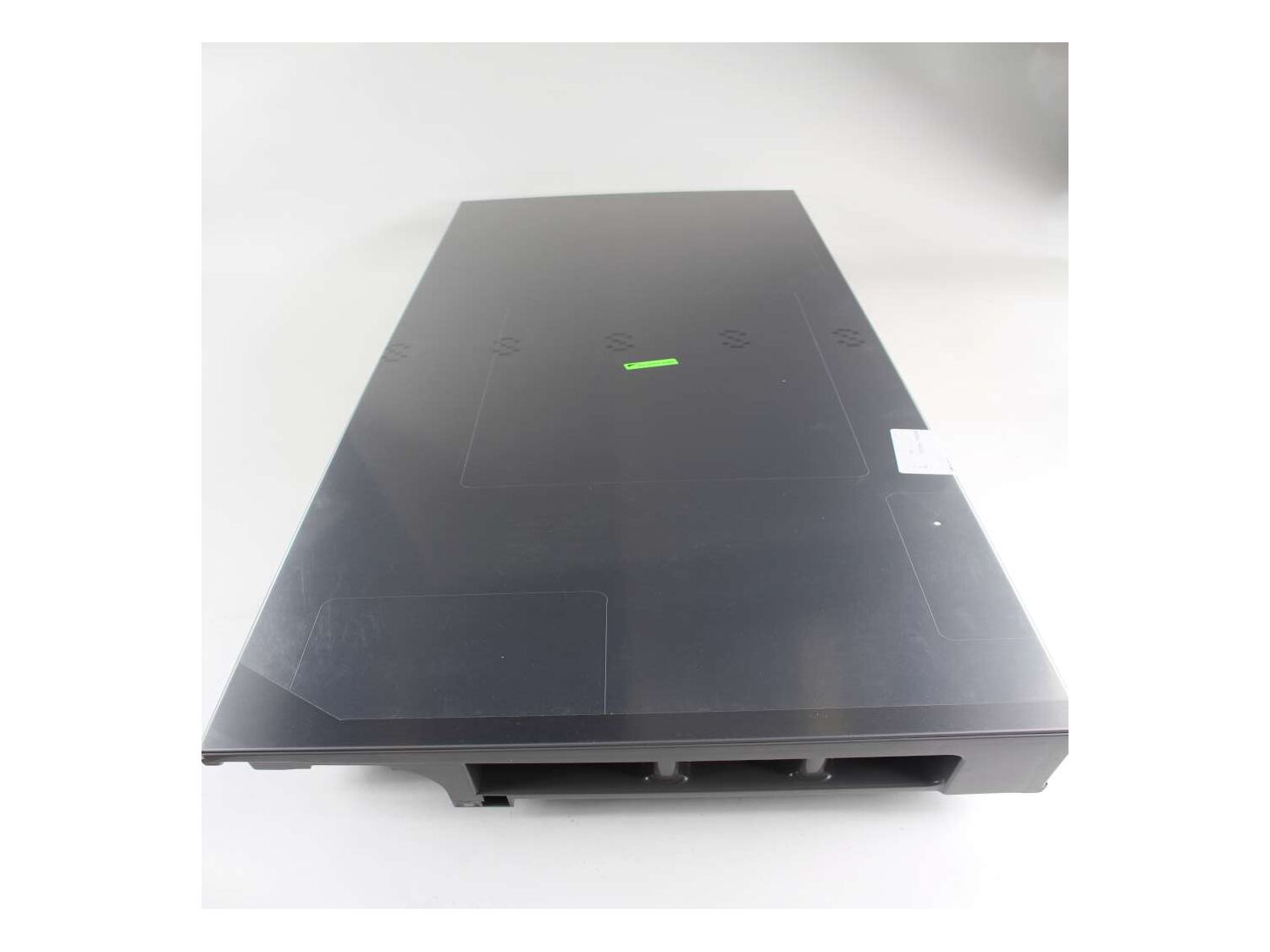

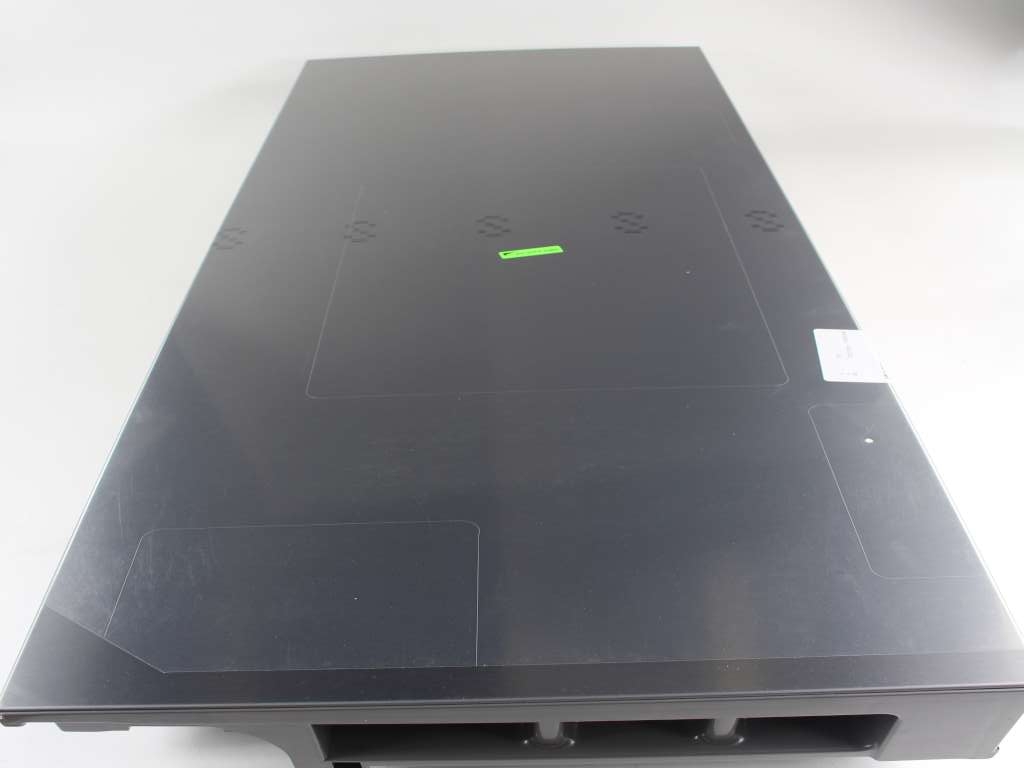

Dor-fip W10849509

Manufactured by:
Whirlpool
ERP Number:
ERP12752482
Part Number:
W10849509
Original Equipment Manufacturer ?
$868.85
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Whirlpool
  • KitchenAid
This part works with the following products:
  • Refrigerator
Part# W10849509 replaces these:
W10798251,

Model Cross Reference

This part works with the following models:
ERP Number: ERP12752482
Manufacturer Part Number: W10849509
Brand Model Number Description
KitchenAid KRFC704FPS00 Refrigerator - REFRIGERATOR
Whirlpool KRFC704FPS01 Refrigerator
Whirlpool KRFC704FPS03 Refrigerator
