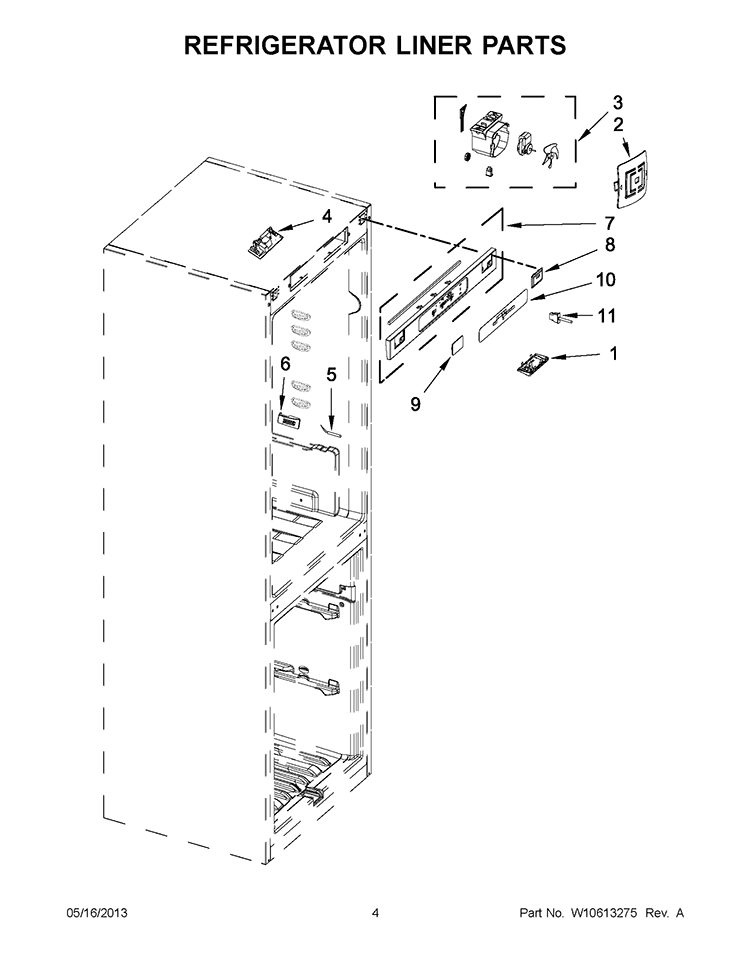

Part Location Diagram of W10506496 Whirlpool COVER, SENSOR
See part 6 in the diagram

COVER, SENSOR W10506496

Manufactured by:
Whirlpool
ERP Number:
ERP8745171
Part Number:
W10506496
Original Equipment Manufacturer ?
  Works with your model  KBBX104EPA04!
$18.44
Special Order
  Works with your model   KBBX104EPA04!

Troubleshooting

This part works with the following brands:
  • KitchenAid
  • Whirlpool
  • Maytag
This part works with the following products:
  • Refrigerator

Model Cross Reference

This part works with the following models:
ERP Number: ERP8745171
Manufacturer Part Number: W10506496
Brand Model Number Description
Maytag JBBFX24NHX00 Refrigerator
KitchenAid KBBX104EPA0 Refrigerator - REFRIGERATOR
Whirlpool KBBX104EPA00 Refrigerator
Whirlpool KBBX104EPA02 Refrigerator
KitchenAid KBBX104EPA03 Refrigerator - Model # Kbbx104epa03 Official Kitchenaid Bottom-Mount Refrigerator
KitchenAid KBBX104EPA04 Refrigerator - Model # Kbbx104epa04 Official Kitchenaid Bottom-Mount Refrigerator
KitchenAid KBWG11NCSS00 Refrigerator
Maytag MBZ1153BES00 Refrigerator - REFRIGERATOR
Whirlpool WRB551WNBS00 Refrigerator
