16743581-1-M-GE-WR02X40905-THIMBLE DOOR HINGE BTM
Part Location Diagram of WR02X40905 GE THIMBLE DOOR HINGE BTM
See part 186 in the diagram
( Grid squares measure 1x1 inch )
16743581-1-S-GE-WR02X40905-THIMBLE DOOR HINGE BTM Part Location Diagram of WR02X40905 GE THIMBLE DOOR HINGE BTM

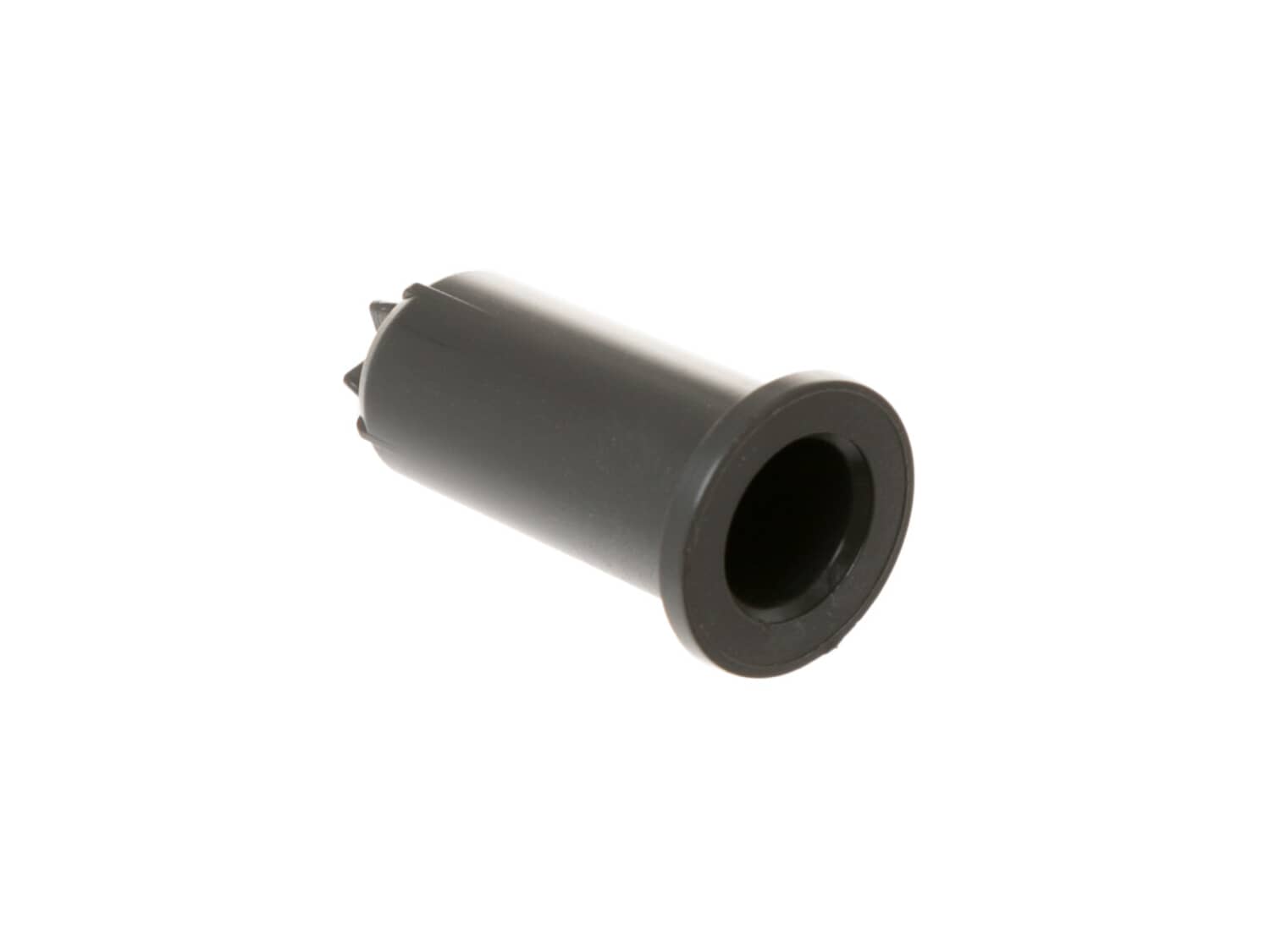

THIMBLE DOOR HINGE BTM WR02X40905

Manufactured by:
GE
ERP Number:
ERP16743581
Part Number:
WR02X40905
Original Equipment Manufacturer ?
$14.25
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • General Electric
This part works with the following products:
  • Refrigerator

Model Cross Reference

This part works with the following models:
ERP Number: ERP16743581
Manufacturer Part Number: WR02X40905
Brand Model Number Description
General Electric PVD28BYNDFS Refrigerator
General Electric PVD28BYNEFS Refrigerator
General Electric PVD28BYNFFS Refrigerator - Ge Profile™ Energy Star® 27.9 Cu. Ft. Smart Fingerprint Resistant 4-Door French-Door Refrigerator With Door In Door
General Electric PVD28BYNGFS Refrigerator - Ge Profile™ Energy Star® 27.9 Cu. Ft. Smart Fingerprint Resistant 4-Door French-Door Refrigerator With Door In Door
General Electric PVD28BYNHFS Refrigerator - Ge Profile™ Energy Star® 27.9 Cu. Ft. Smart Fingerprint Resistant 4-Door French-Door Refrigerator With Door In Door
General Electric PVD28BYNIFS Refrigerator - Bottom-Mount Refrigerator
General Electric PXD22BYPCFS Refrigerator - Bottom-Mount Refrigerator
General Electric PXD22BYPDFS Refrigerator - Bottom-Mount Refrigerator
THIMBLE DOOR HINGE BTM
$ 14.25
Special Order
✖
