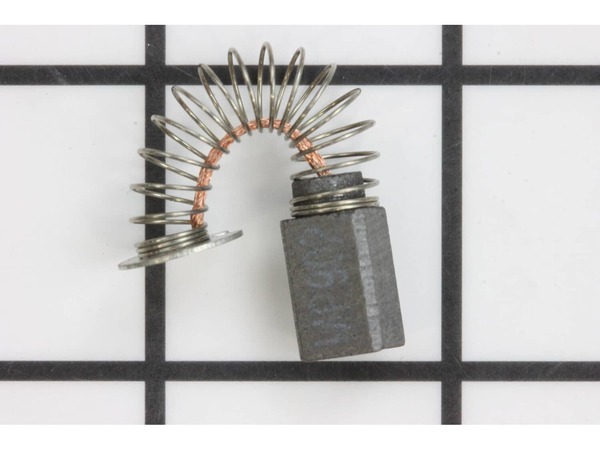

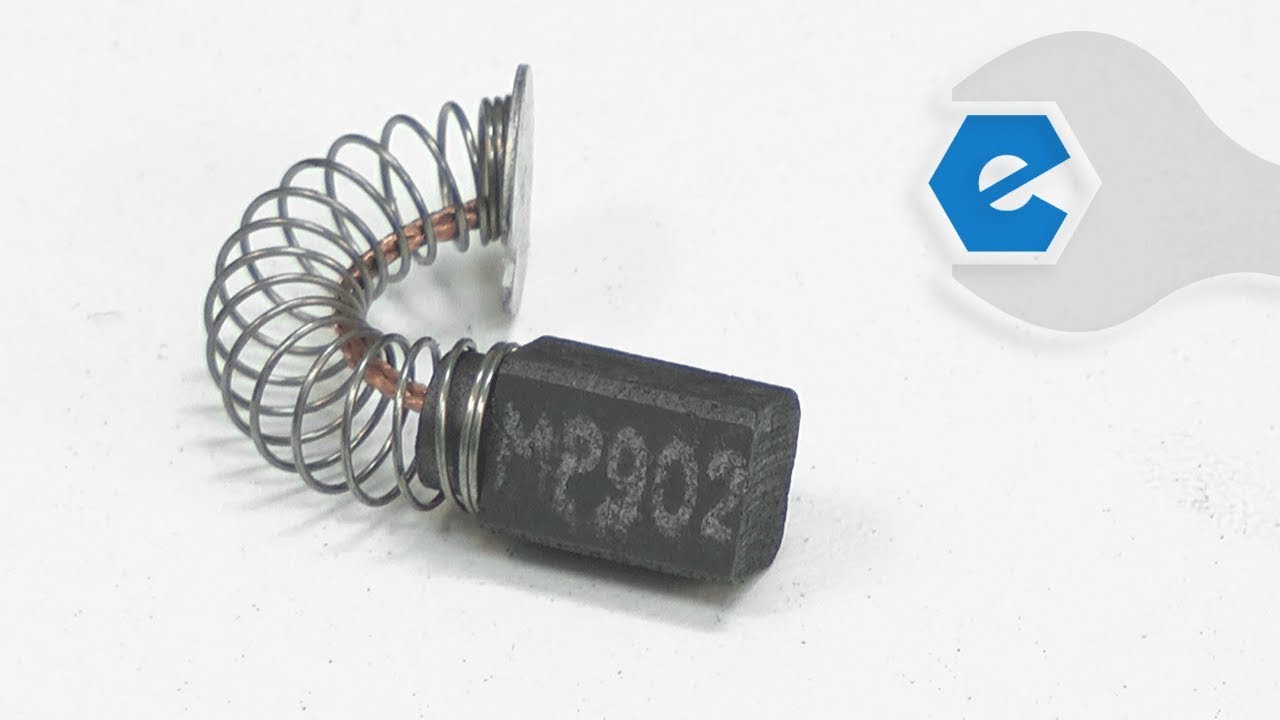

Genuine Milwaukee replacement part Includes 1 Carbon Brush with wire lead and brush spring attached. • Worn brushes are often the cause of a poorly running motor • Replacing brushes can fix an intermittent motor • 2 Required for a set. • New brushes can restore a motor's electric braking Carbon motor brushes are one of the most commonly replaced power tool components. • Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. • Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. • A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. • When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.
Remove both brush caps form each side of motor housing. Pull out old brushes, then replace with the new brushes. Install the brush caps. Tool works great.
Did you find this story helpful?
Thank you for voting!
One of the two brush assembly\'s failed to make contact with the armature
1. I removed the brush retainer plug with a screwdriver.
2 I removed the brushes.
3 I inspected the slot
4 I inserted the new brushes
5 I replaced the plugs .
Took a flat blade screw driver. Turned out black taco screws on top and bottom of saws all body and brushes r right there pull out old one put in new ones and your done
Did you find this story helpful?
Thank you for voting!
The drill would not work, bad connection in the trigger control
Although the parts were supposed to be for my model 0102-1 (I double checked) the control switch was an updated model for what I think was a digital voltage control (mine was an old analog type) and smoked what was left of the field coils. Plus the brushes were 1/4\" x 5/16\" to replace my 1/4\" square. Needless to say, after all the tr
... Read moreouble I went through to fit the switch body into the handle, it turned into junk.
Remove brush caps
Remove brush
Install new brushes
Reinstall caps
For the retaining ring it is as simple as removing the blade and changing the washer.
I have noticed that the brushes do not last as long as the originals or as the machine ages. 14 years old
