Part Location Diagram of RB81224 Max Curl Guide Unit (517)
See part 28 in the diagram

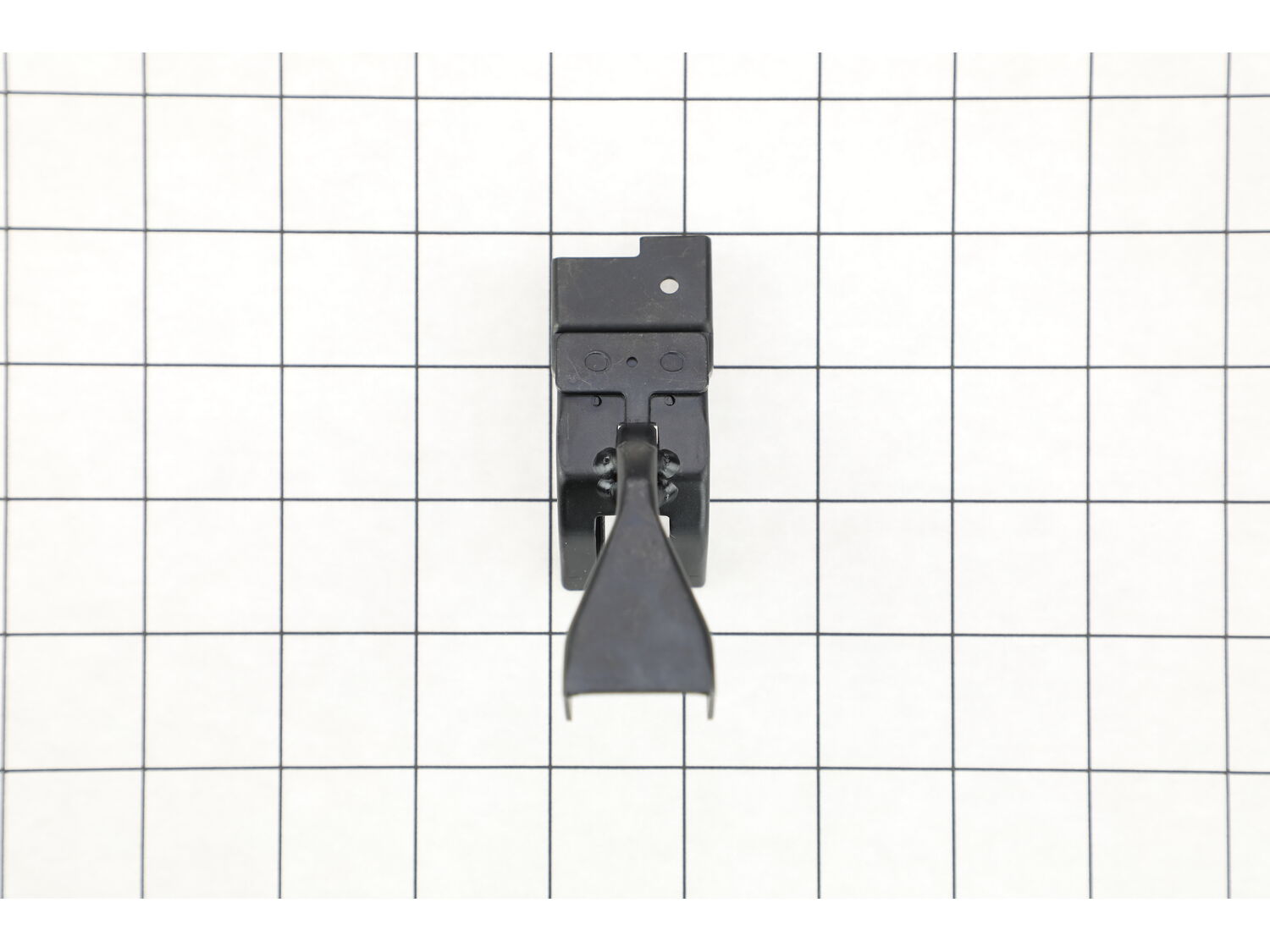

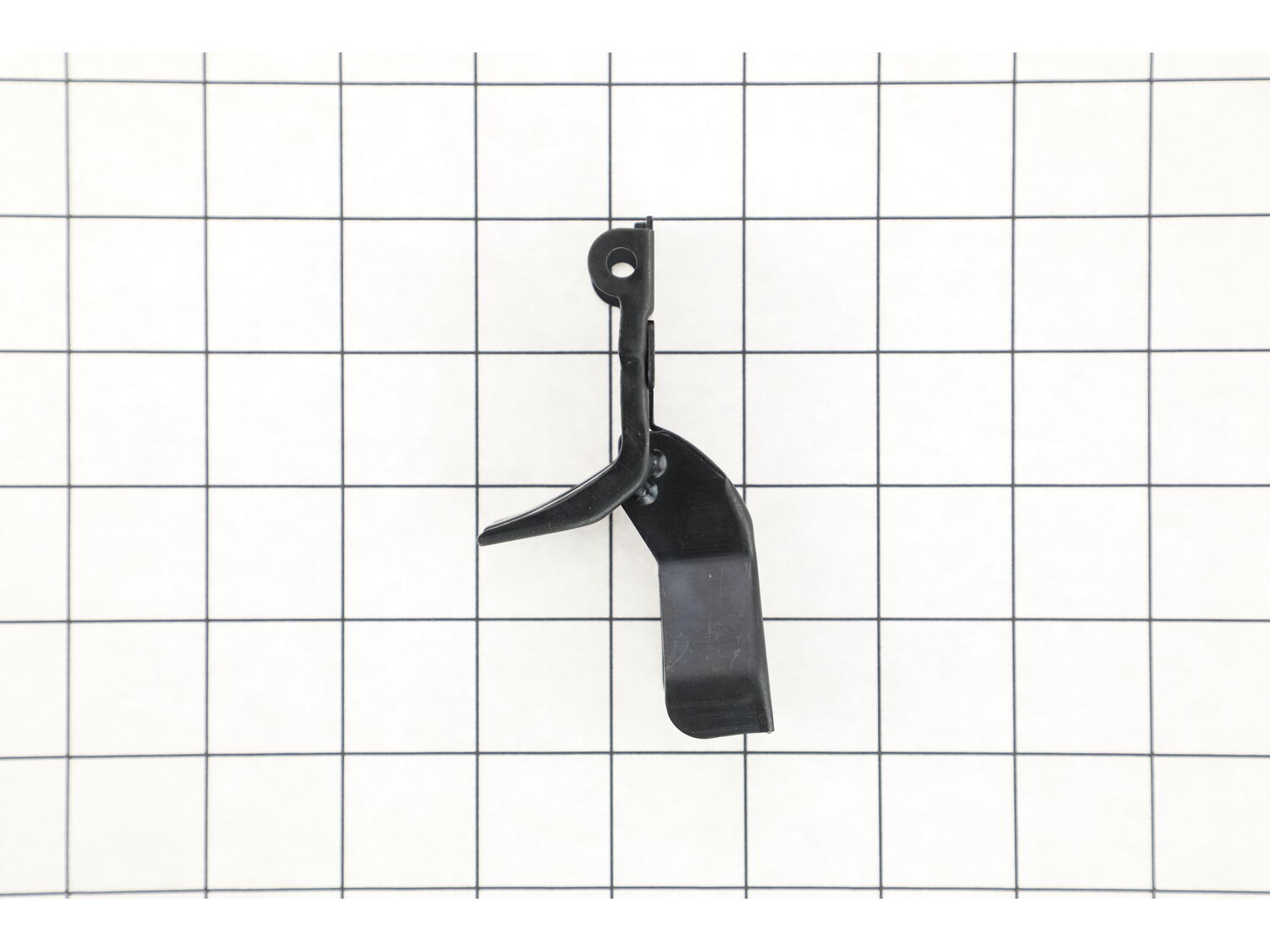

( Grid squares measure 1x1 inch )

Curl Guide Unit (517) RB81224

Manufactured by:
Max
ERP Number:
ERP17608988
Part Number:
RB81224
Original Equipment Manufacturer ?
$113.93
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Max
This part works with the following products:
  • Rebar Tools

Model Cross Reference

This part works with the following models:
ERP Number: ERP17608988
Manufacturer Part Number: RB81224
Brand Model Number Description
Max RB517 Rebar Tools - Max Rb517 Rebar Tying Tool
Max RB518 Rebar Tools - Max Rb518 Rebar Tying Tool
