Part Location Diagram of W11546095 Whirlpool CNTRL-ELEC
See part 2A in the diagram
( Grid squares measure 1x1 inch )

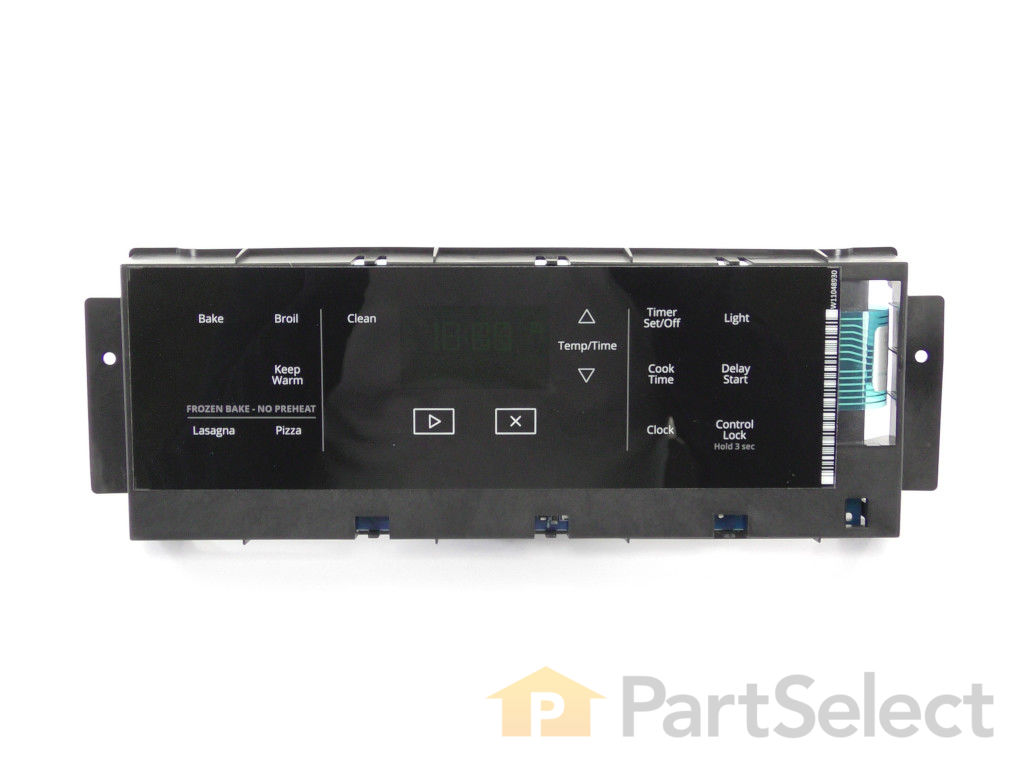

CNTRL-ELEC W11546095

Manufactured by:
Whirlpool
ERP Number:
ERP16620245
Part Number:
W11546095
Original Equipment Manufacturer ?
$188.55
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

This genuine OEM electronic control board manages the oven’s key functions—including temperature regulation, heating elements, and cooking modes—to keep the range operating smoothly. It’s a dependable replacement when the oven won’t heat properly, has an unresponsive display, or struggles to maintain temperature. Designed for select electric ranges, it restores accurate control and reliable performance once installed.

Troubleshooting

This part works with the following brands:
  • Whirlpool
This part works with the following products:
  • Range
Part# W11546095 replaces these:
W11050787, W11182817, W11204530, W11317859, W11428376,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16620245
Manufacturer Part Number: W11546095
Brand Model Number Description
Whirlpool WFE550S0HB0 Range
Whirlpool WFE550S0HB1 Range
Whirlpool WFE550S0HW0 Range
Whirlpool WFE550S0HW1 Range
Whirlpool WFE550S0HW2 Range - Range
Whirlpool YWFE550S0HB0 Range
Whirlpool YWFE550S0HB1 Range
Whirlpool YWFE550S0HW0 Range
Whirlpool YWFE550S0HW1 Range
Whirlpool YWFE550S0HW2 Range - Range
