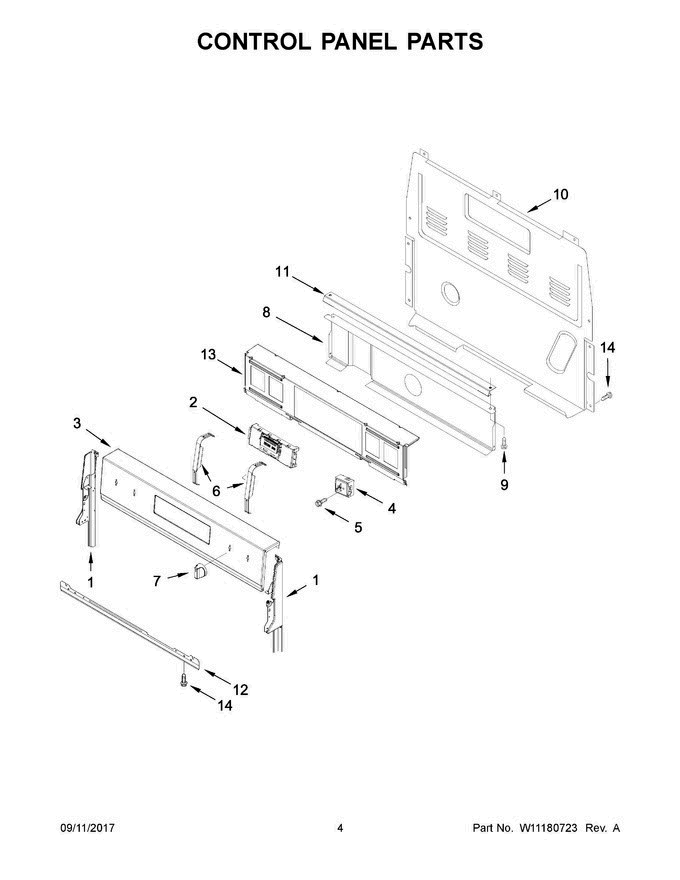

Part Location Diagram of W11528249 Whirlpool Electric Control Board
See part 2 in the diagram

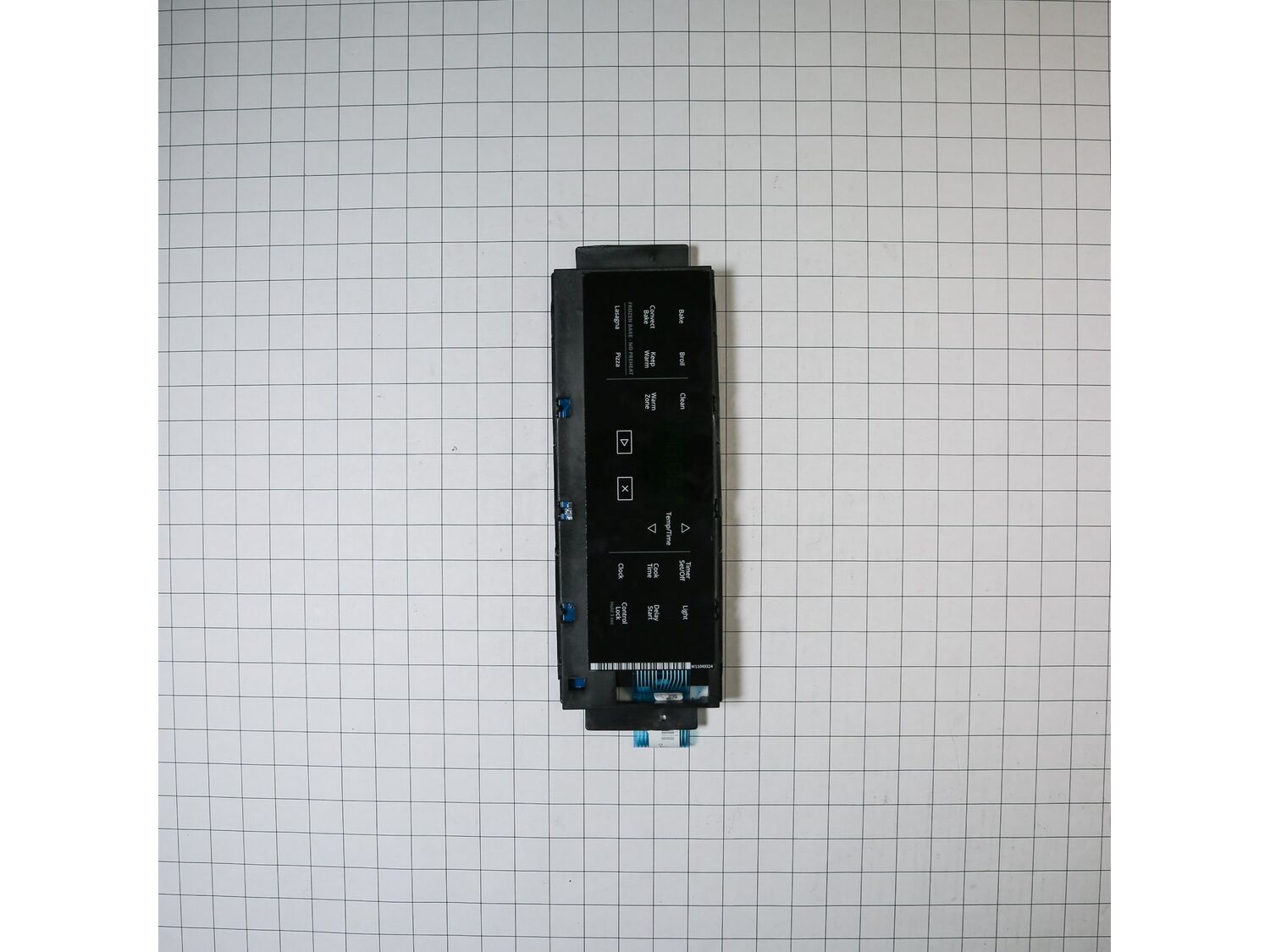

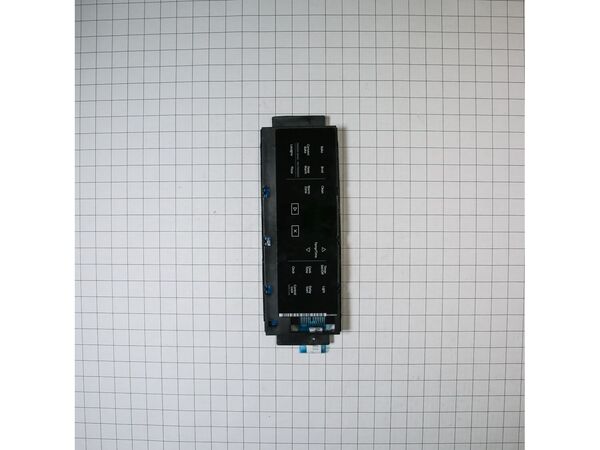

( Grid squares measure 1x1 inch )

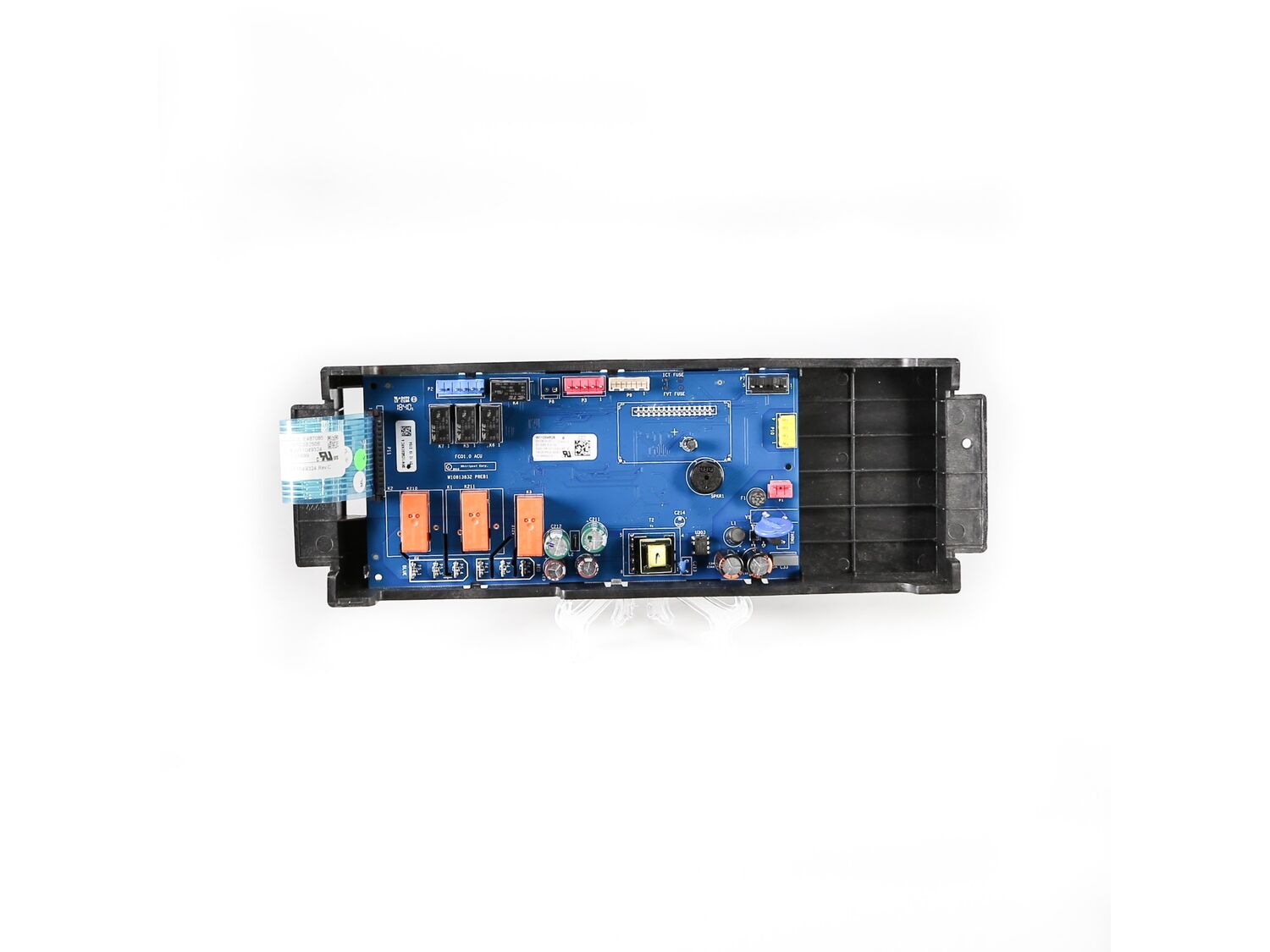

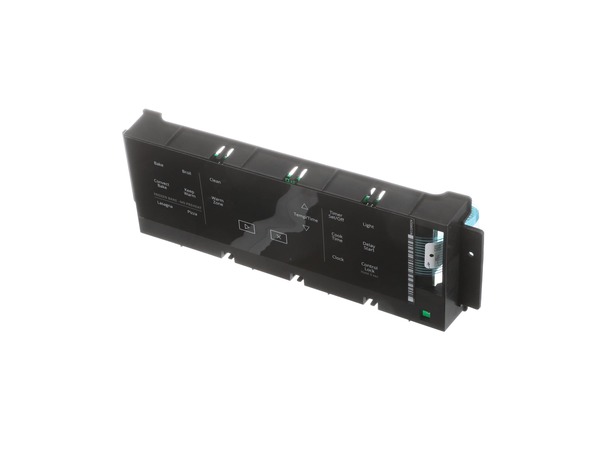

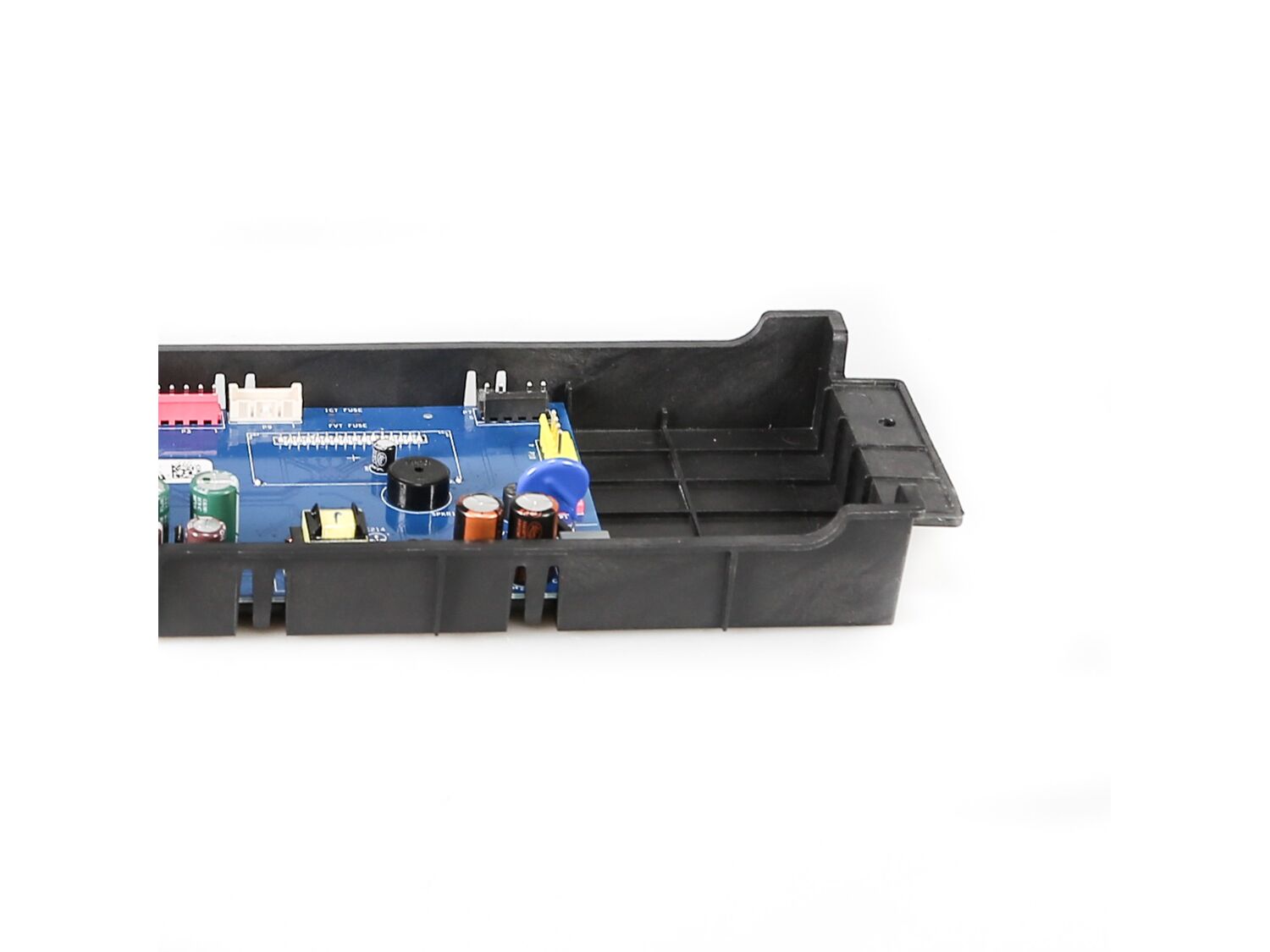

Electric Control Board W11528249

Manufactured by:
Whirlpool
ERP Number:
ERP16555205
Part Number:
W11528249
Original Equipment Manufacturer ?
$190.27
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part fixes the following symptoms:
  • Oven is too hot
This part works with the following brands:
  • Whirlpool
This part works with the following products:
  • Range
Part# W11528249 replaces these:
W11050785, W11182815, W11204529, W11295998, W11428374, W11511586,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16555205
Manufacturer Part Number: W11528249
Brand Model Number Description
Whirlpool WFE535S0JS0 Range
Whirlpool WFE535S0JS1 Range - Range
Whirlpool WFE535S0JV0 Range
Whirlpool WFE535S0JZ0 Range
Whirlpool WFE535S0JZ1 Range - Range
Whirlpool WFE550S0HB0 Range
Whirlpool WFE550S0HB1 Range
Whirlpool WFE550S0HV0 Range
Whirlpool WFE550S0HV1 Range
Whirlpool WFE550S0HW0 Range
Whirlpool WFE550S0HW1 Range
Whirlpool WFE550S0HZ0 Range
Whirlpool WFE550S0HZ1 Range
Whirlpool WFE550S0HZ2 Range - Range
Whirlpool YWFE535S0JV0 Range
Whirlpool YWFE535S0JZ0 Range
Whirlpool YWFE535S0JZ1 Range - Range
Whirlpool YWFE550S0HB0 Range
Whirlpool YWFE550S0HB1 Range
Whirlpool YWFE550S0HV0 Range
Whirlpool YWFE550S0HV1 Range
Whirlpool YWFE550S0HW0 Range
Whirlpool YWFE550S0HW1 Range
Whirlpool YWFE550S0HZ0 Range
Whirlpool YWFE550S0HZ1 Range
