Part Location Diagram of DG96-00272A Samsung Wire Harness Assembly
See part 1-7 in the diagram
( Grid squares measure 1x1 inch )

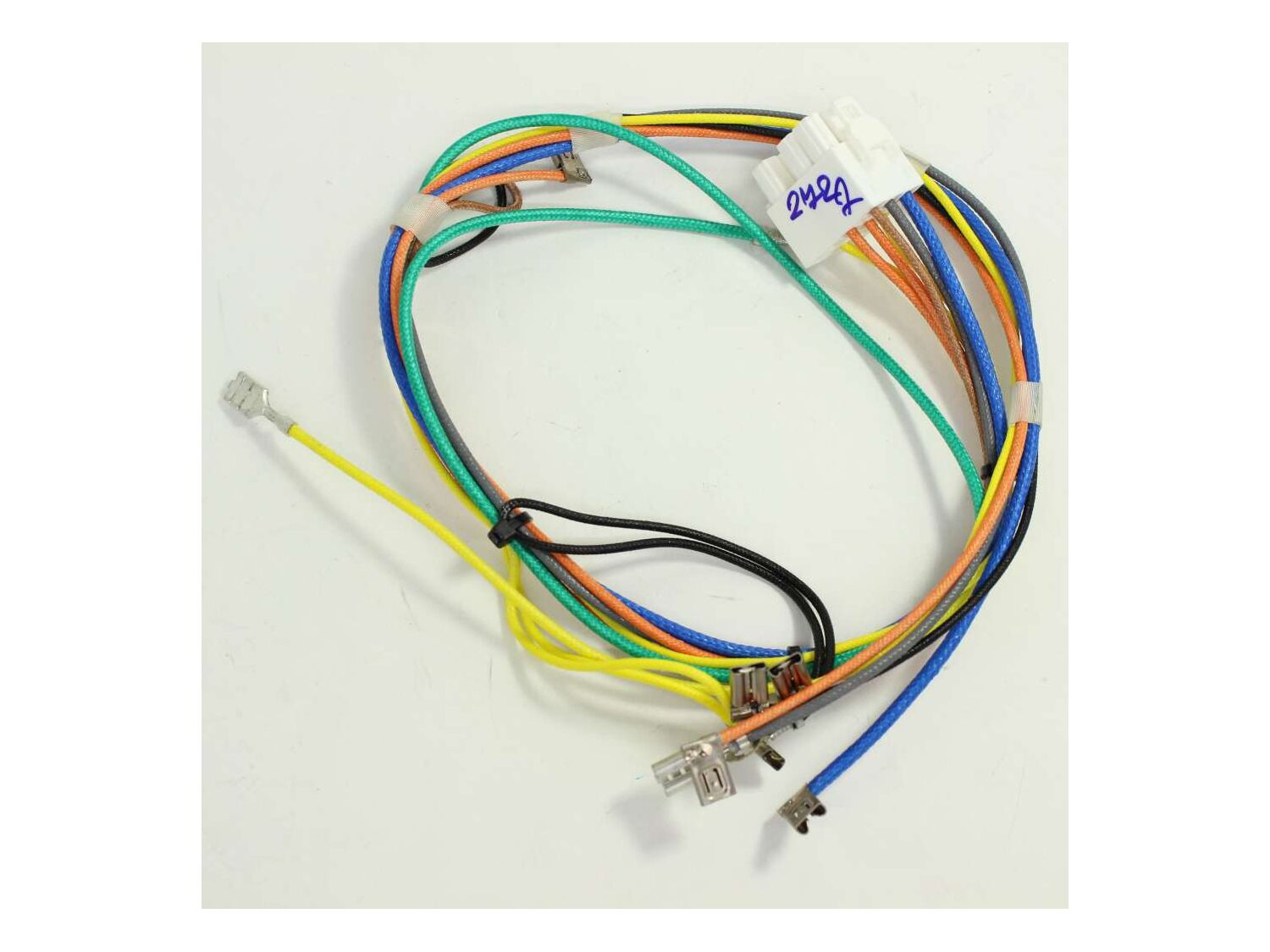

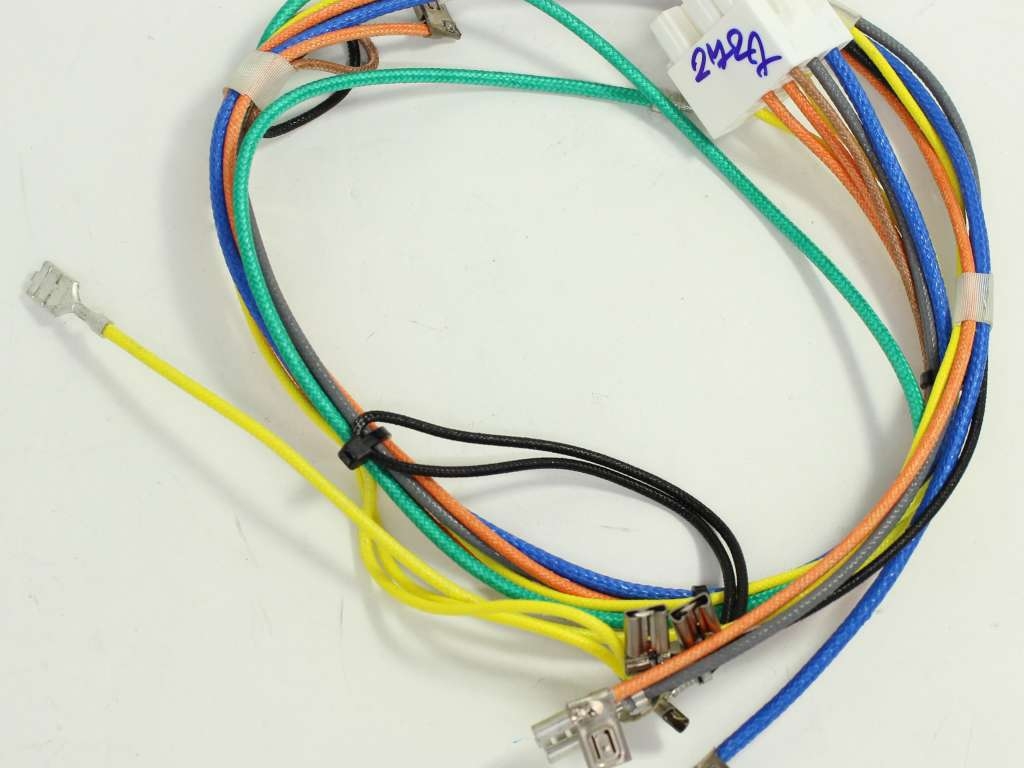

Wire Harness Assembly DG96-00272A

Manufactured by:
Samsung
ERP Number:
ERP4241574
Part Number:
DG96-00272A
Original Equipment Manufacturer ?
$101.36
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Samsung
This part works with the following products:
  • Range

Model Cross Reference

This part works with the following models:
ERP Number: ERP4241574
Manufacturer Part Number: DG96-00272A
Brand Model Number Description
Samsung NE594R0ABBB Range - Samsung Ne594r0abbb/Aa-01 Electric Range
Samsung NE594R0ABSR Range - ELECTRIC RANGE
Samsung NE594R0ABWW Range - Samsung Ne594r0abww/Aa-01 Electric Range
Samsung NE595R0ABBB Range - ELECTRIC RANGE
Samsung NE595R0ABSR Range - ELECTRIC RANGE
Samsung NE595R0ABWW Range - ELECTRIC RANGE
Samsung NE595R1ABSR Range - RANGE
