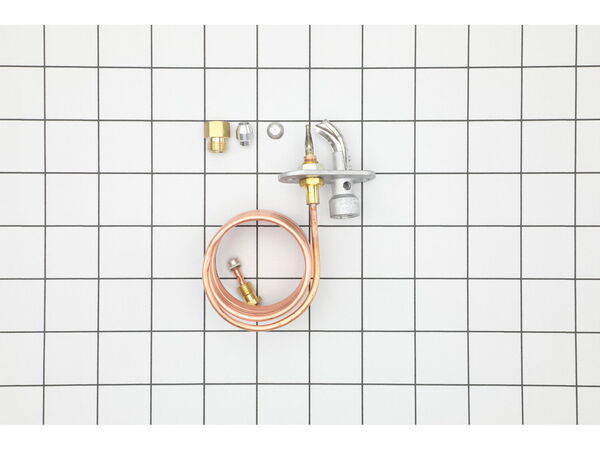

11750349-1-M-Whirlpool-WPW10206112-Pilot with Thermocouple
Part Location Diagram of WPW10206112 Whirlpool Pilot with Thermocouple
See part 11 in the diagram

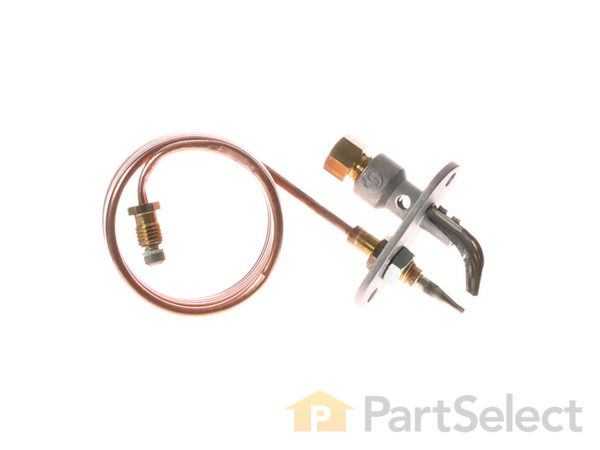

11750349-1-S-Whirlpool-WPW10206112-Pilot with Thermocouple 360 view

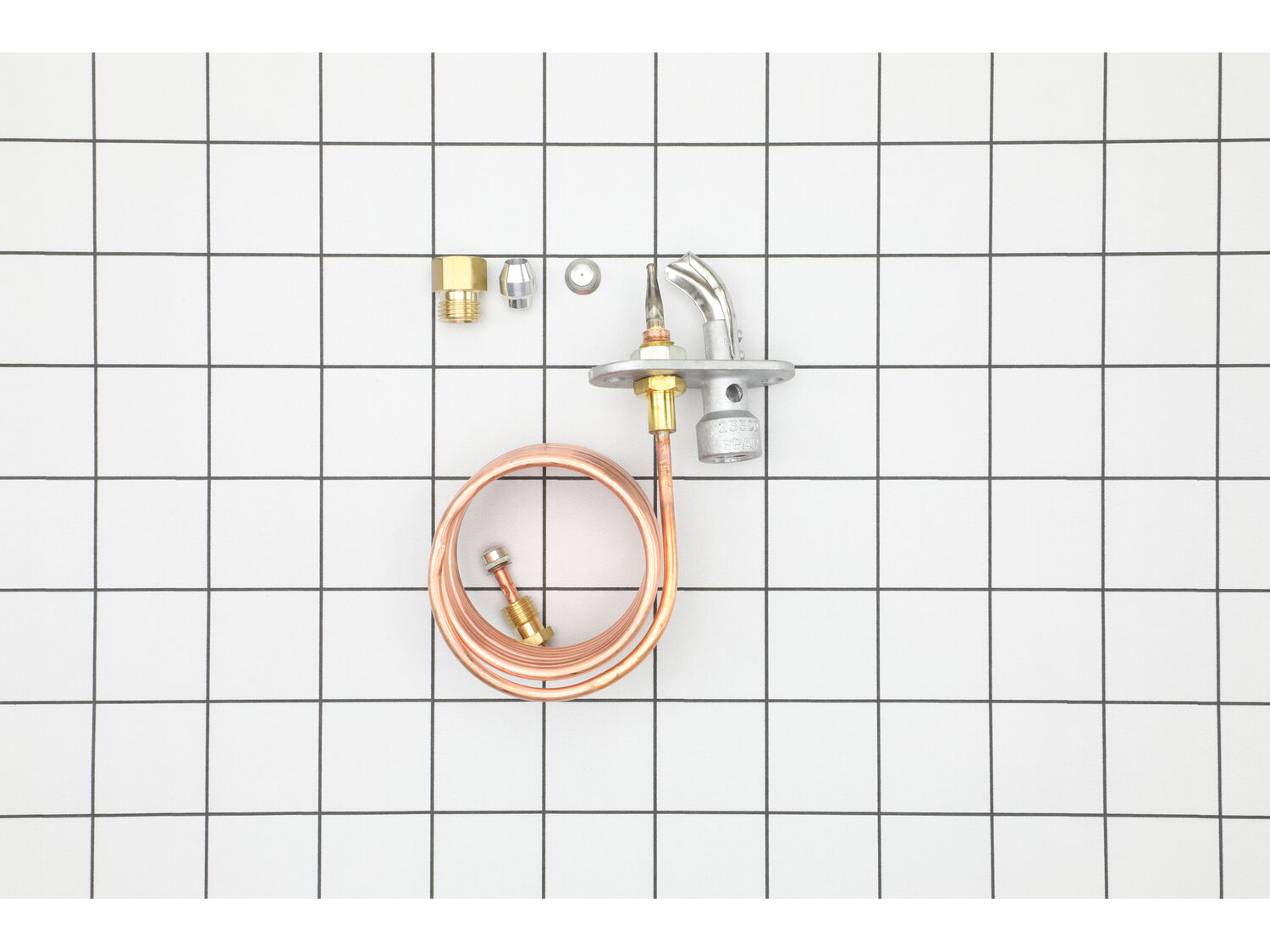

( Grid squares measure 1x1 inch )
11750349-1-S-Whirlpool-WPW10206112-Pilot with Thermocouple 11750349-2-S-Whirlpool-WPW10206112-Pilot with Thermocouple 11750349-1-S-Whirlpool-WPW10206112-Pilot with Thermocouple 360 view
Part Location Diagram of WPW10206112 Whirlpool Pilot with Thermocouple

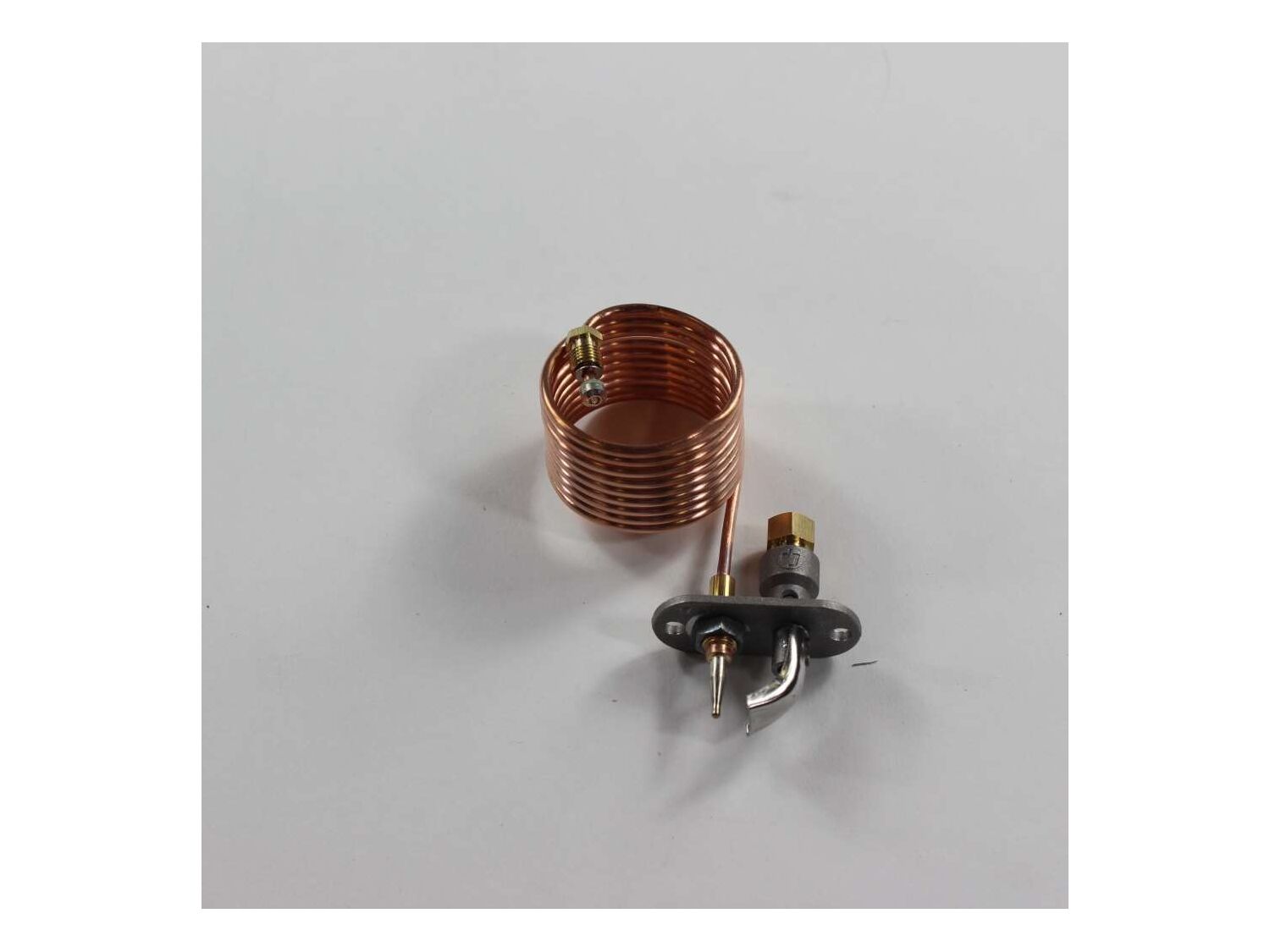

Pilot with Thermocouple WPW10206112

Manufactured by:
Whirlpool
ERP Number:
ERP11750349
Part Number:
WPW10206112
Original Equipment Manufacturer ?
$54.19
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Model Cross Reference

Product Description

?

The pilot stays lit all the time and, when the oven is turned on, the flame gets bigger and surrounds the thermocouple. When the thermocouple senses the required heat, the safety valve opens to let the gas flow to the oven burner tube where the pilot flame ignites the gas.

Troubleshooting

This part fixes the following symptoms:
  • Will Not Start
  • Gas igniter glows
  • but will not light
  • Little to no heat when baking
This part works with the following brands:
  • Maytag
  • Crosley
  • Magic Chef
  • Amana
  • Admiral
  • Estate
This part works with the following products:
  • Range
Part# WPW10206112 replaces these:
AP6017054, 74010141, 7505P329-60, W10206112,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11750349
Manufacturer Part Number: WPW10206112
Brand Model Number Description
Magic Chef 31000PAT Range - Freestanding, Gas
Magic Chef 31000PAW Range - Freestanding, Gas
Magic Chef 31100PAW Range - Freestanding, Gas
Amana AGP200VDW0 Range - GAS RANGE
Amana AGP200VDW1 Range - 20" GAS FREESTANDING RANGE
Maytag ALR1100AJQ Range
Maytag ALR1100AJW Range
Crosley CG11000VDV0 Range - Freestanding, Gas
Crosley CG31200BDQ Range - Freestanding, Gas
Crosley CG31200BDV Range - Freestanding, Gas
Crosley CG31200BDW Range - Freestanding, Gas
Maytag CLR1100AJQ Range
Maytag CLR1100AJW Range
Crosley CP31200BDQ Range - Freestanding, Gas
Crosley CP31200BDV Range - Freestanding, Gas
Magic Chef CPL1100BDW16 Range - 20" GAS RANGE
Magic Chef CPR1100ADQ Range - Freestanding, Gas
Magic Chef CPR1100ADW Range - Freestanding, Gas
Maytag LLR1100AJQ Range
Maytag LLR1100AJW Range
Admiral LPR1115ADW Range - Freestanding, Gas
Maytag MLR1100AJQ Range
Maytag MLR1100AJW Range
Estate TGP200VDQ0 Range
Pilot with Thermocouple
$ 54.19
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
