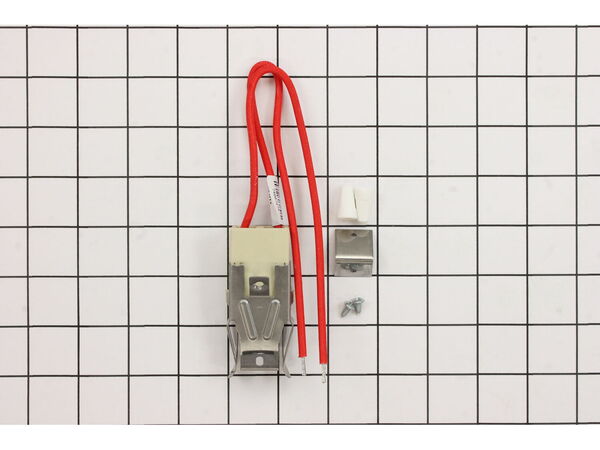

1570190-1-M-Whirlpool-12001676-Surface Burner Receptacle Kit

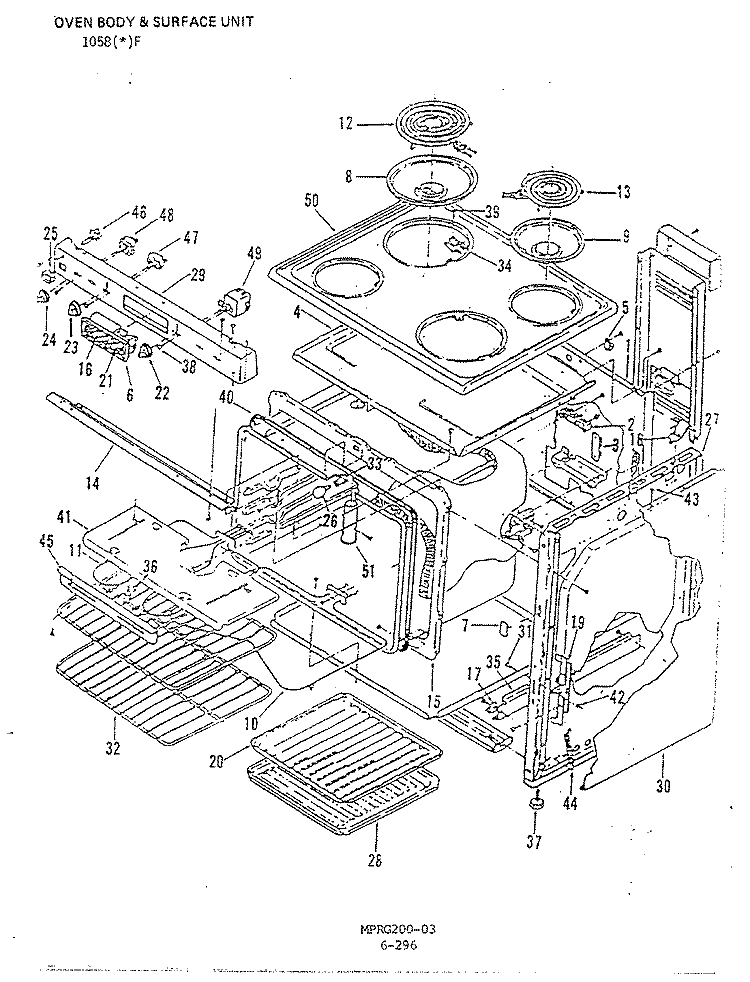

Part Location Diagram of 12001676 Whirlpool Surface Burner Receptacle Kit
See part 34 in the diagram
1570190-1-S-Whirlpool-12001676-Surface Burner Receptacle Kit 360 view
( Grid squares measure 1x1 inch )
1570190-1-S-Whirlpool-12001676-Surface Burner Receptacle Kit 1570190-2-S-Whirlpool-12001676-Surface Burner Receptacle Kit 1570190-1-S-Whirlpool-12001676-Surface Burner Receptacle Kit 360 view
Part Location Diagram of 12001676 Whirlpool Surface Burner Receptacle Kit

Surface Burner Receptacle Kit 12001676

Manufactured by:
Whirlpool
ERP Number:
ERP1570190
Part Number:
12001676
Original Equipment Manufacturer ?
$18.85
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This kit comes with one ceramic block, metal bracket, wires, and hi-temp wire nuts.

Troubleshooting

This part fixes the following symptoms:
  • Element will not heat
  • Will Not Start
This part works with the following brands:
  • Magic Chef
  • Maytag
  • Crosley
  • Jenn-Air
  • Admiral
  • Norge
  • Whirlpool
  • Hardwick
  • Amana
  • Hoover
  • Kenmore
  • Litton
This part works with the following products:
  • Range
  • Cooktop
  • Microwave Oven Combo
Part# 12001676 replaces these:
AP4009015, 400645, 12001676, 04100394, 0B03600499, 0R01500199, 0R01500299, 0R01500399, 0R01500599, 12001676, 12001676VP, 12200010, 14001102, 14222603, 1430-306, 1430-306K, 1430293, 1430306, 1430306K, 1657-215, 1657-222, 1657-226, 1657215, 1657222, 1657226, 4381752, 4381814, 4381831, 5-60468, 5-70152, 53-003, 560468, 570152, 7-0125, 7-0154, 7-12143, 7-12361, 700125, 700125K, 700154, 712143, 712361, 7401P036-60, 7401P040-60, 7408P016-60, R0167047, RR110, Y04100394, Y0B03600499, Y0R01500199, Y0R01500299, Y0R01500399, Y0R01500599, Y712143, Y712361 Show less

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Burned socket connection on burner element. Chared contact on burner element.

Donnie from Southlake, Texas

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
715878, 12001676
Removed old burner socket by cutting wiring and one screw.
Attached adapter parts to new burner socket. (Self-tapping screws was difficult to start due to smallness and size.)
Re-strung wiring from burner hole to switch location.
Spliced wiring with provided ceramic twist caps.
Reattached burner socket.
Repl aced New burner and Drip Bowl.
Tested for proper operation.
Done.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP1570190
Manufacturer Part Number: 12001676
Brand Model Number Description
Admiral 1058AF-CW Range - Electric
Admiral 1058AF-CZ Range - Electric
Admiral 1058WF-CW Range - Electric
Admiral 1058WF-CZ Range - Electric
Hoover 1151AA-36 Cooktop
Hoover 1151AA-36G Cooktop
Hoover 1151AD-30 Cooktop
Hoover 1151AD-36 Cooktop
Hoover 1151AH-30 Cooktop
Hoover 1151AL-36G Cooktop
Hoover 1151WA-36 Cooktop
Hoover 1151WA-36G Cooktop
Hoover 1151WD-30 Cooktop
Hoover 1151WD-36 Cooktop
Hoover 1151WH-30 Cooktop
Hoover 1151WL-36G Cooktop
Magic Chef 1500PAA Range
Magic Chef 1500PAW Range
Magic Chef 1500PRA Range
Magic Chef 1500PRW Range
Maytag 156-1W Range - Maytag Range/Stove/Oven Model 156-1W/1X (1561W/1X, 156 1W/1X) Parts
Maytag 15A-1 Range - Maytag Range/Stove/Oven Model 15A-1 (15A1, 15A 1) Parts
Maytag 15A-2 Range - Maytag Range/Stove/Oven Model 15A-2/1X (15A2/1X, 15A 2/1X) Parts
Magic Chef 15GA-1 Range
Magic Chef 15GA-1-94 Range
Magic Chef 15GA-1-GG Range
Magic Chef 15GN-1 Range
Magic Chef 15GN-1-94 Range
Magic Chef 15GN-1-GG Range
Magic Chef 15GY-1 Range
