Part Location Diagram of AGR75305602 LG PIPE ASSEMBLY
See part 521R in the diagram
( Grid squares measure 1x1 inch )

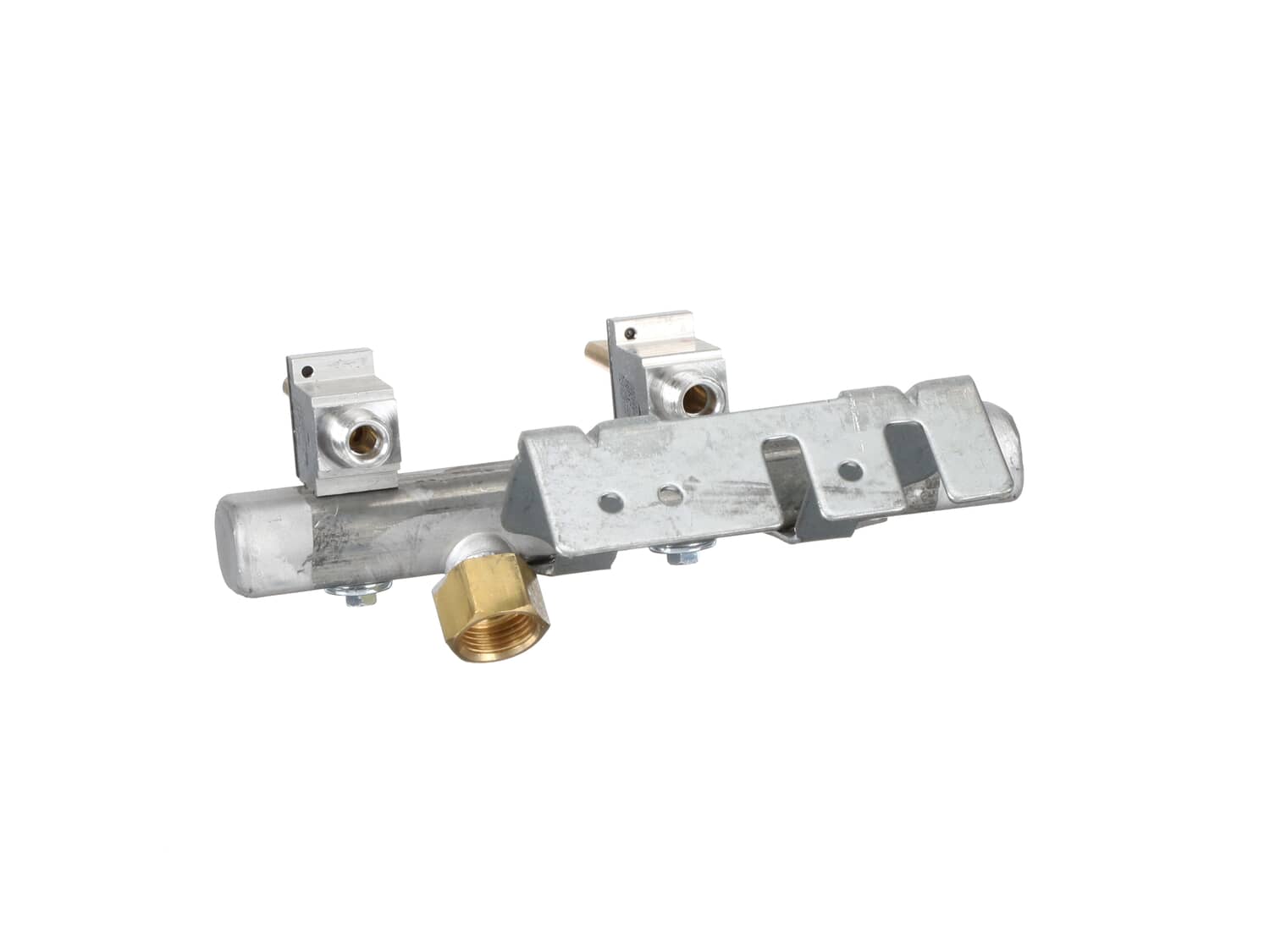

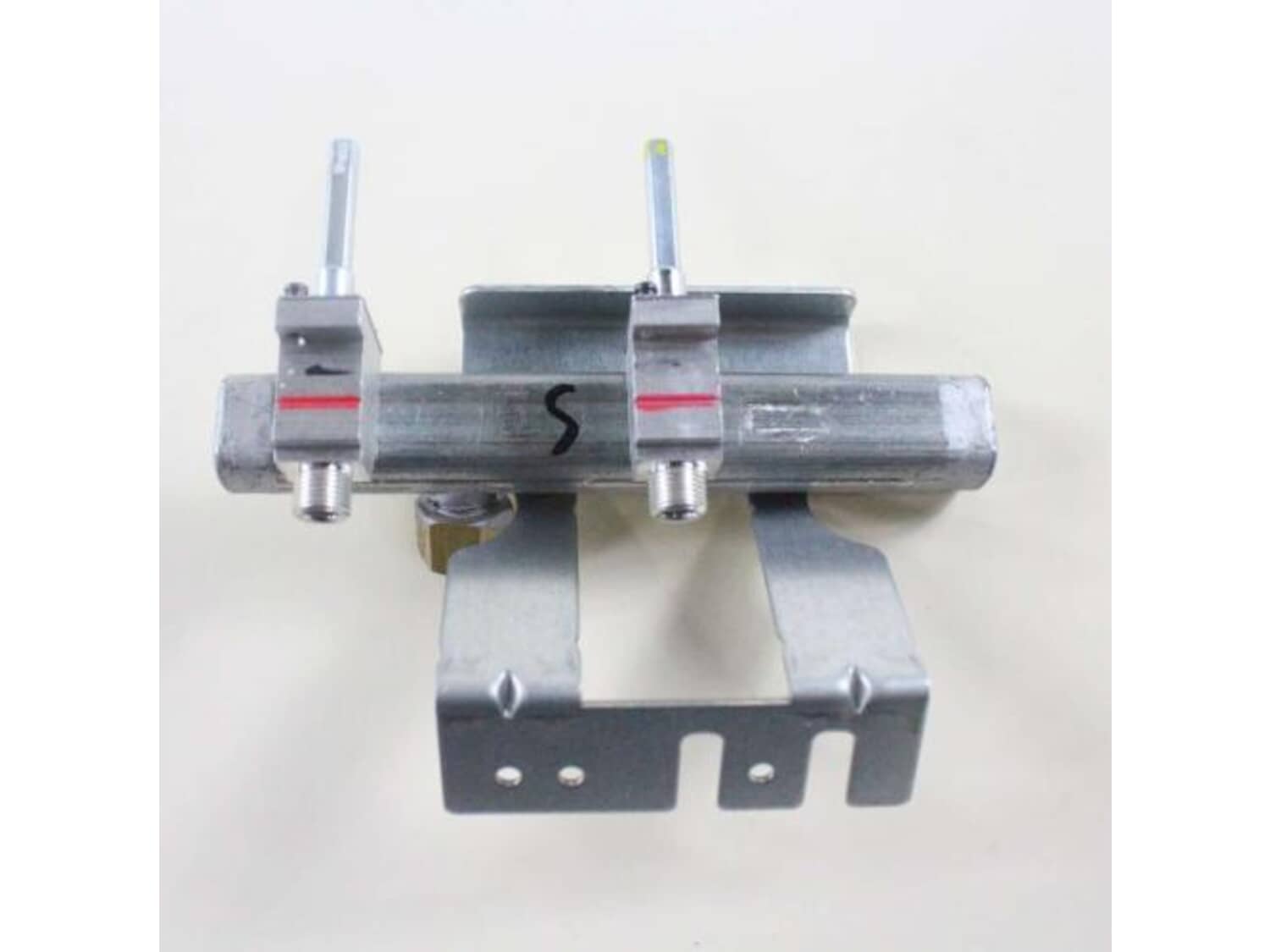

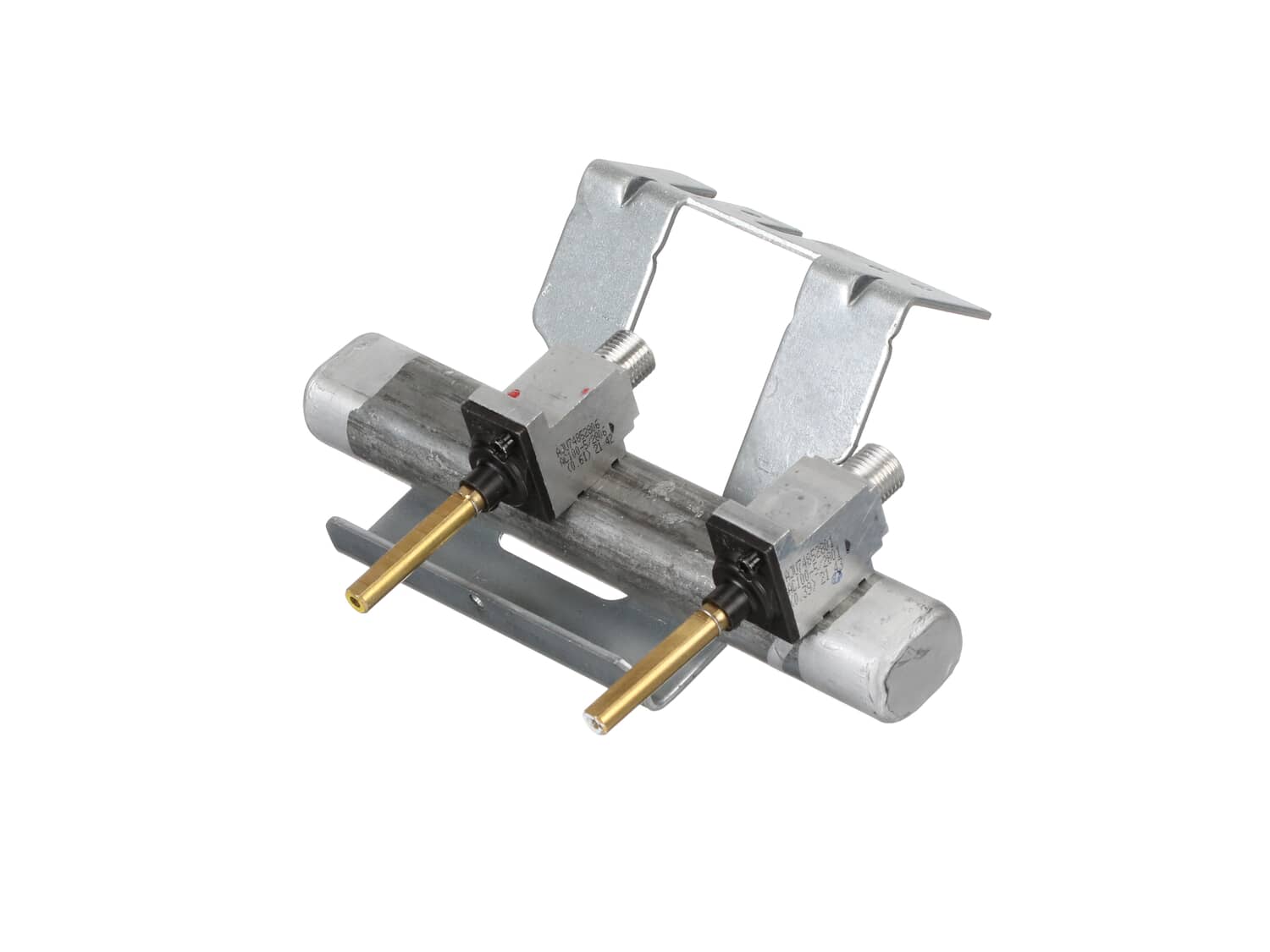

PIPE ASSEMBLY AGR75305602

Manufactured by:
LG
ERP Number:
ERP11760842
Part Number:
AGR75305602
Original Equipment Manufacturer ?
$219.82
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • LG
This part works with the following products:
  • Range
Part# AGR75305602 replaces these:
AP6028543,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11760842
Manufacturer Part Number: AGR75305602
Brand Model Number Description
LG FH4755LS Range - Model Lg Fh4755ls.Abdelga – Common Parts And Diagrams
LG LSD4913ST Range - Lg Range/Stove/Oven Lsd4913st/00
LG LSG4513BD Range - 6.3 Cu. Ft. Gas Convection Range
LG LSG4513ST Range - 30-Inch Slide In Gas Range
LG LSG4515BM Range - Oven-Range
LG LSG4515ST Range - Oven-Range
LG LSG5513BD Range
LG LSG5513ST Range
LG LTG4715BD Range - 6.9 Cu. Ft. Smart Double Oven Slide In Gas Range
LG LTG4715BM Range - Lg Range/Stove/Oven Ltg4715bm/00
LG LTG4715ST Range - 6.9 Cu. Ft. Double Oven Gas Convection Range
