Part Location Diagram of WPW10277011 Whirlpool Electric Control Board
See part 11 in the diagram

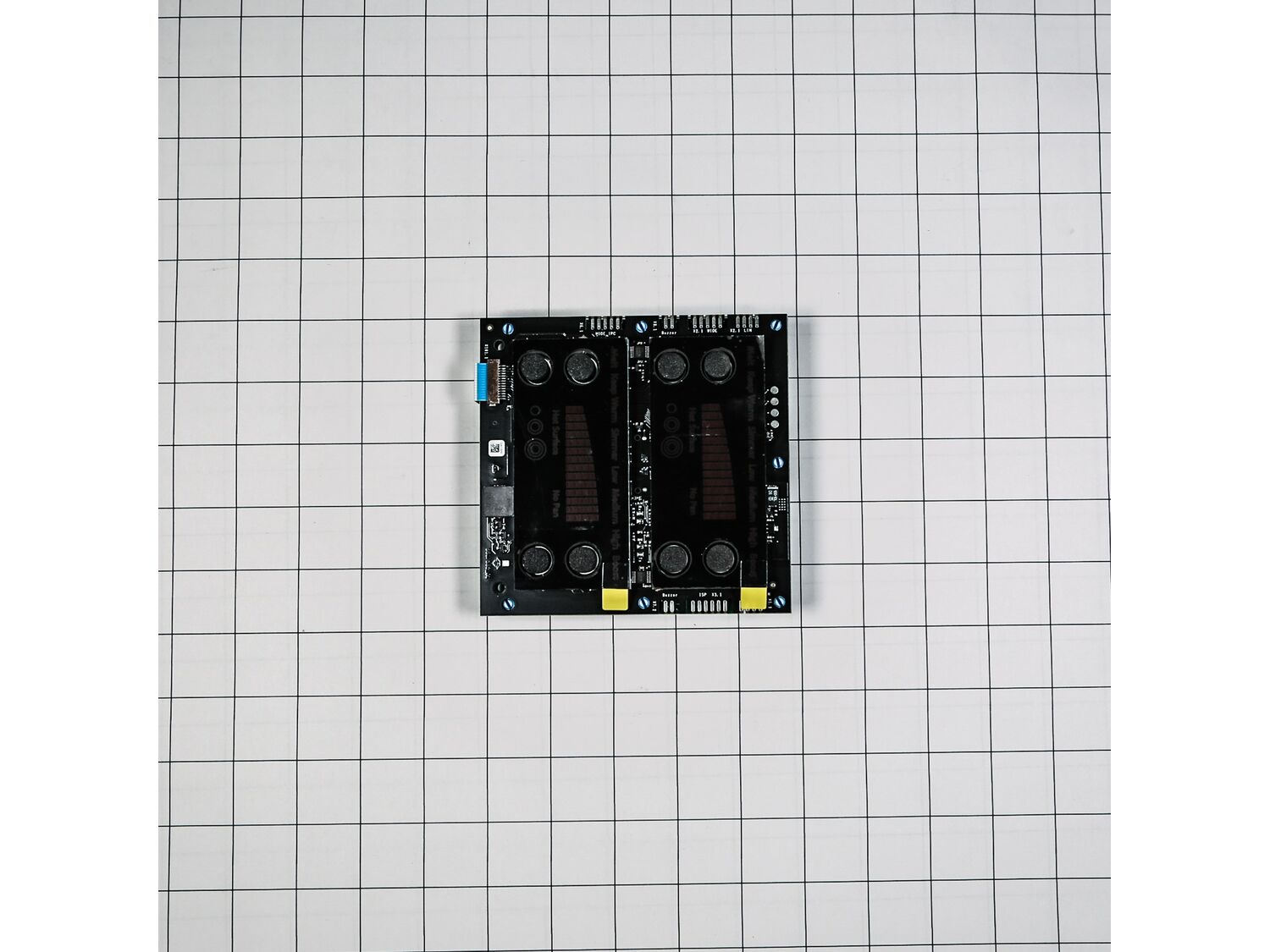

( Grid squares measure 1x1 inch )

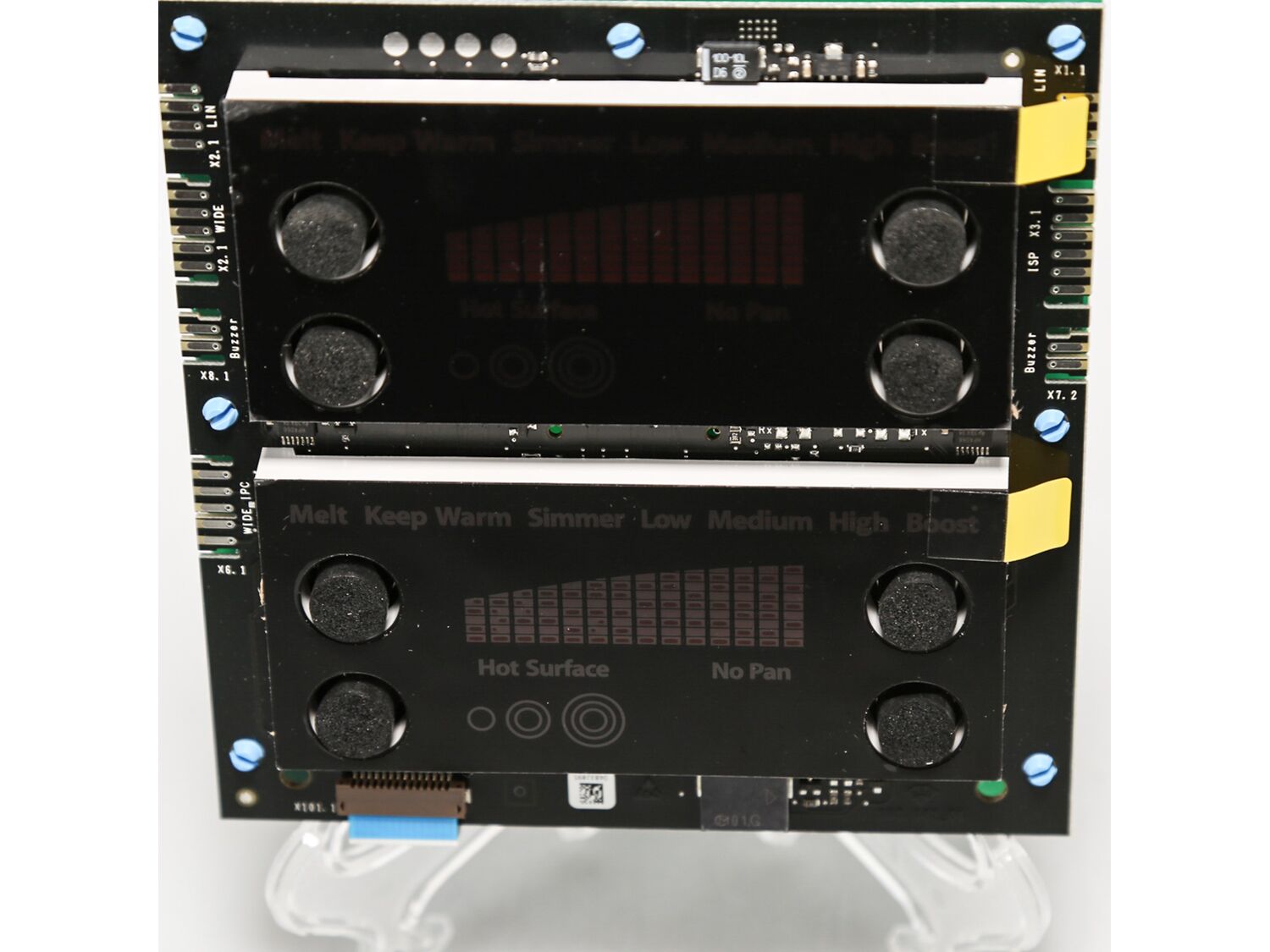

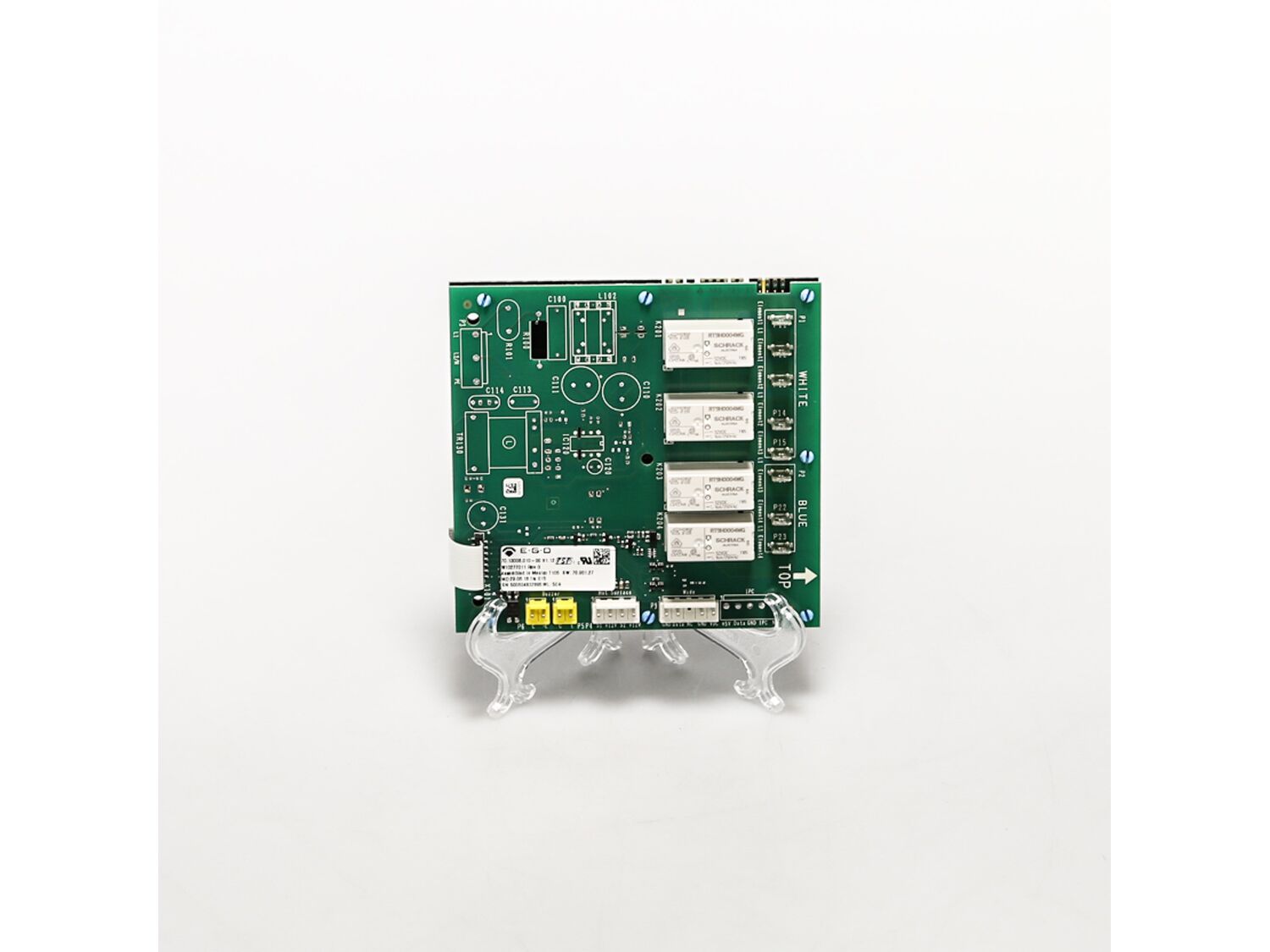

Electric Control Board WPW10277011

Manufactured by:
Whirlpool
ERP Number:
ERP11751730
Part Number:
WPW10277011
Original Equipment Manufacturer ?
$257.38
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • KitchenAid
  • Whirlpool
This part works with the following products:
  • Range
Part# WPW10277011 replaces these:
W10277011,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11751730
Manufacturer Part Number: WPW10277011
Brand Model Number Description
KitchenAid KERS507XSS00 Range
KitchenAid KERS507XSS01 Range
KitchenAid KERS507XSS02 Range
KitchenAid YKER507XSS00 Range
KitchenAid YKER507XSS01 Range
Whirlpool YKER507XSS02 Range
Whirlpool YKER507XSS04 Range
