Part Location Diagram of WB18X39316 GE HARNESS THERMOSTAT EXT
See part 513 in the diagram
( Grid squares measure 1x1 inch )

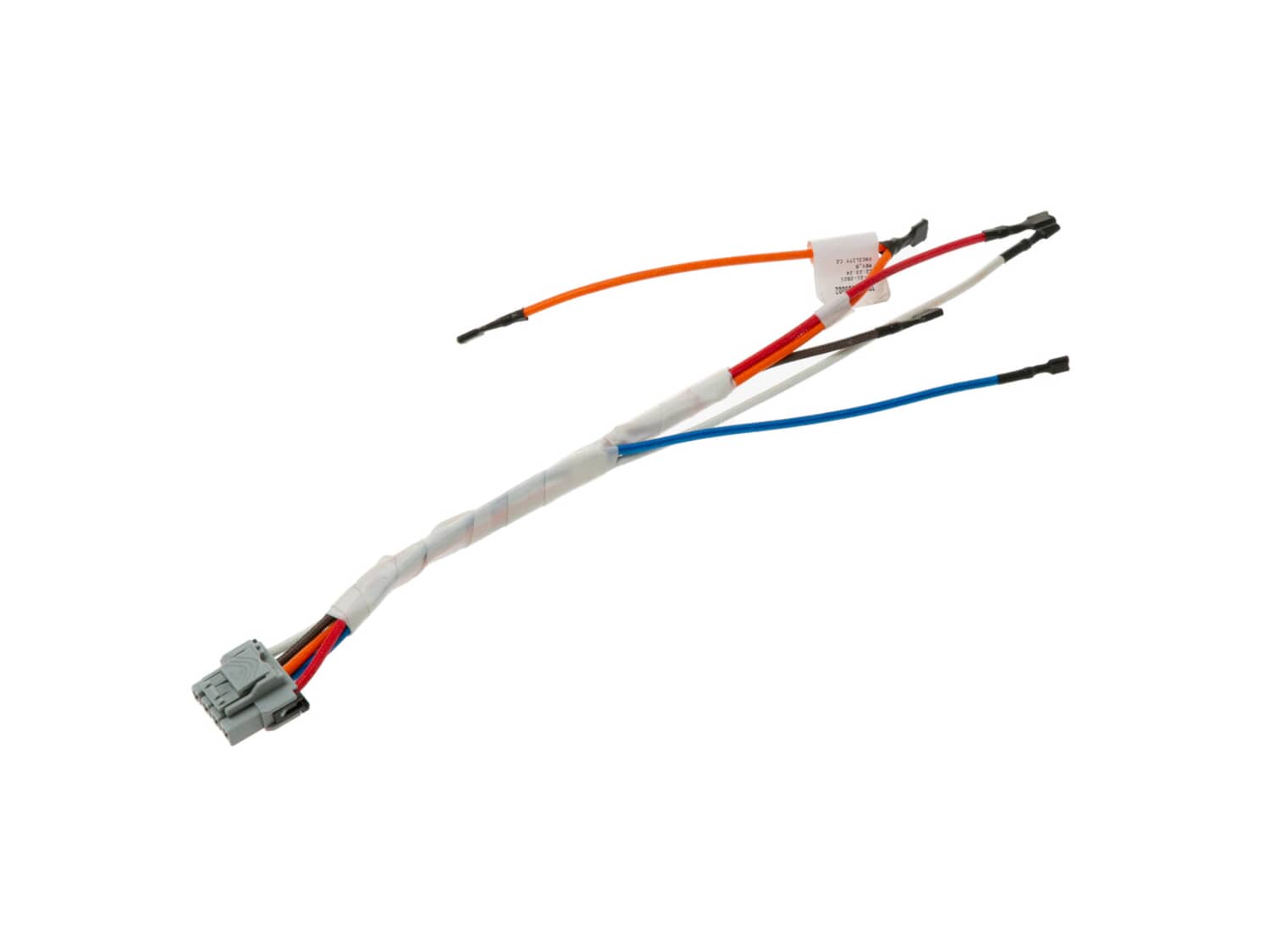

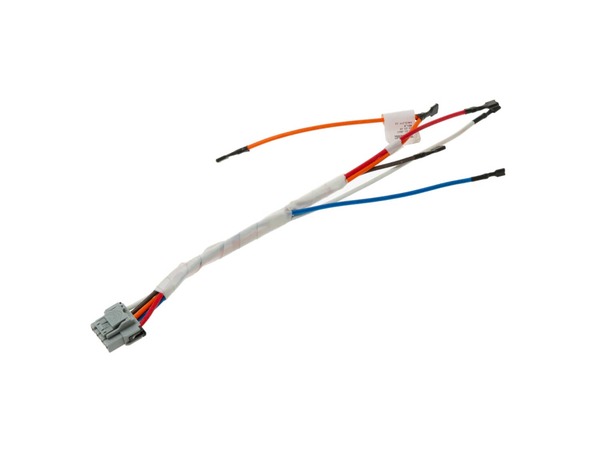

HARNESS THERMOSTAT EXT WB18X39316

Manufactured by:
GE
ERP Number:
ERP16618557
Part Number:
WB18X39316
Original Equipment Manufacturer ?
$45.63
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • General Electric
This part works with the following products:
  • Range
  • Cooktop

Model Cross Reference

This part works with the following models:
ERP Number: ERP16618557
Manufacturer Part Number: WB18X39316
Brand Model Number Description
General Electric C2Y486P2T1S1 Range - Gas Range
General Electric C2Y486P2T2S1 Range - Gas Range Or Dual Fuel
General Electric C2Y486P4T1W2 Range - Gas Range
General Electric C2Y486P4T2W2 Range - Gas Range Or Dual Fuel
General Electric CGU486P2T2S1 Range - Gas Range Or Dual Fuel
General Electric CGU486P3T1D1 Cooktop - Gas Cooktop
General Electric CGU486P3T2D1 Range - Gas Range Or Dual Fuel
General Electric CGU486P4T1W2 Cooktop - Gas Cooktop
