Part Location Diagram of 316536620 Frigidaire IGNITOR/ORIFICE ASS
See part F11 in the diagram
( Grid squares measure 1x1 inch )

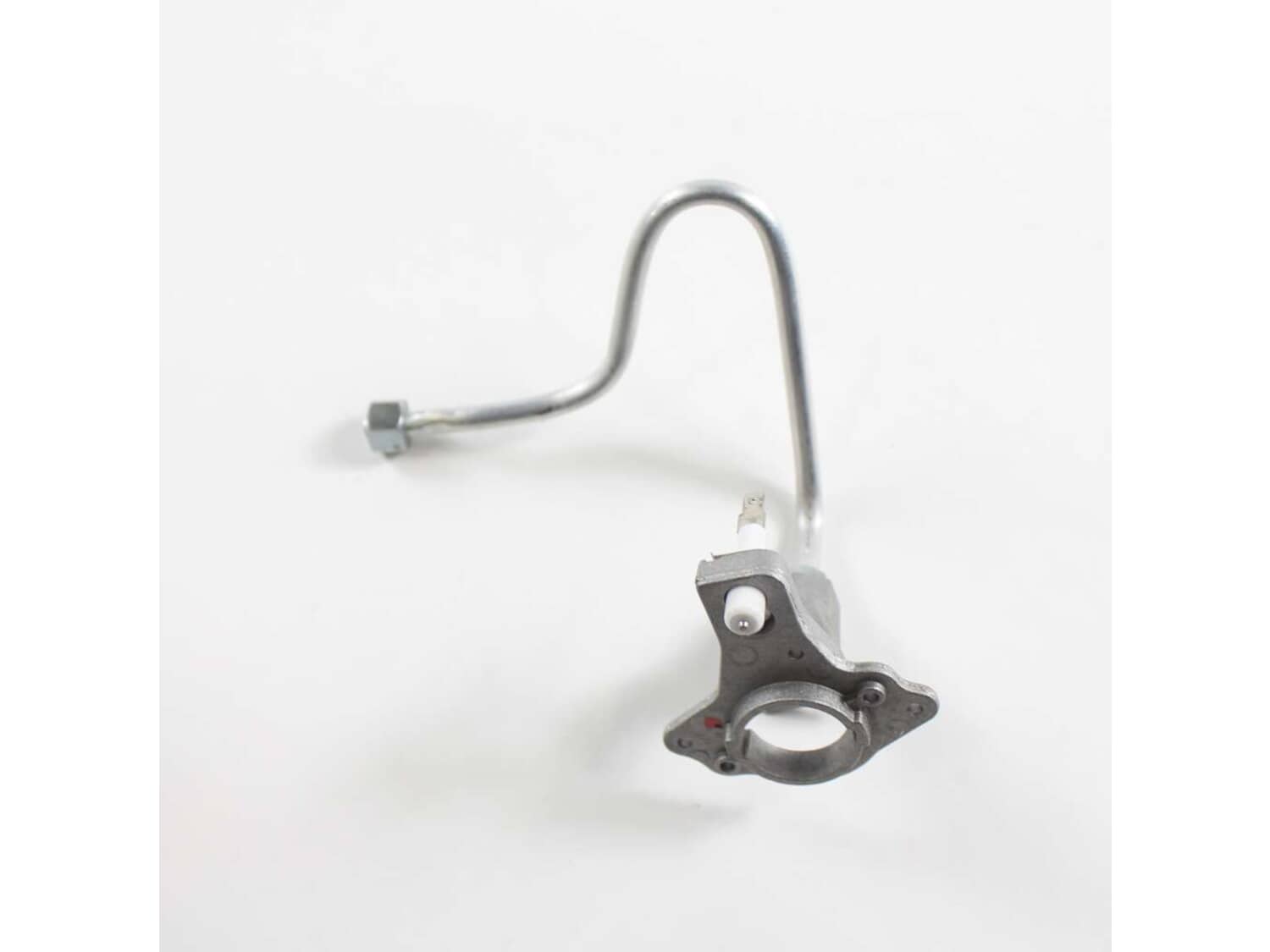

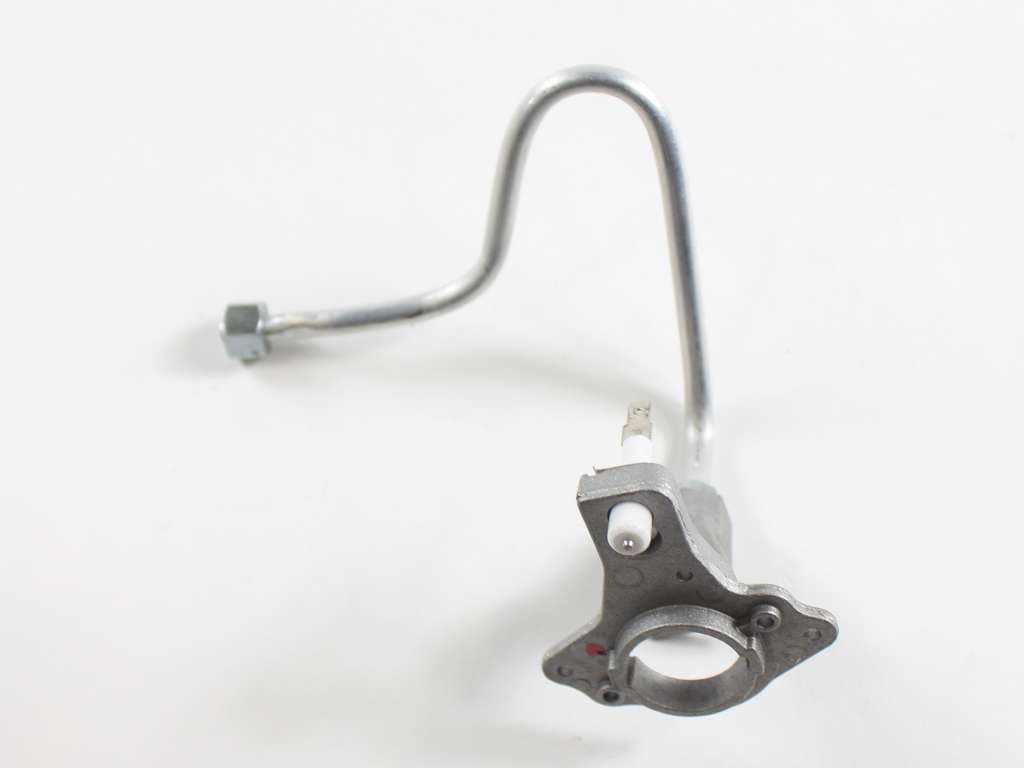

IGNITOR/ORIFICE ASS 316536620

Manufactured by:
Frigidaire
ERP Number:
ERP3504413
Part Number:
316536620
Original Equipment Manufacturer ?
$72.32
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Frigidaire
This part works with the following products:
  • Range
Part# 316536620 replaces these:
AP5325520,

Model Cross Reference

This part works with the following models:
ERP Number: ERP3504413
Manufacturer Part Number: 316536620
Brand Model Number Description
Frigidaire FCRL3052ASA Range - Range 30in Gas 5.0cf Ss
Frigidaire FCRL3052ASB Range - Range 30in Gas 5.0cf Ss
Frigidaire FFLF3052USA Range - Range 30in Gas 4.2cf Ss
Frigidaire FFLF3052USB Range - Range 30in Gas 4.2cf Ss
Frigidaire LGLF305MMFA Range
Frigidaire LGLF305MMFB Range - 5.0 Gas Chassis/Sc/Es540l Gallery T2 B
