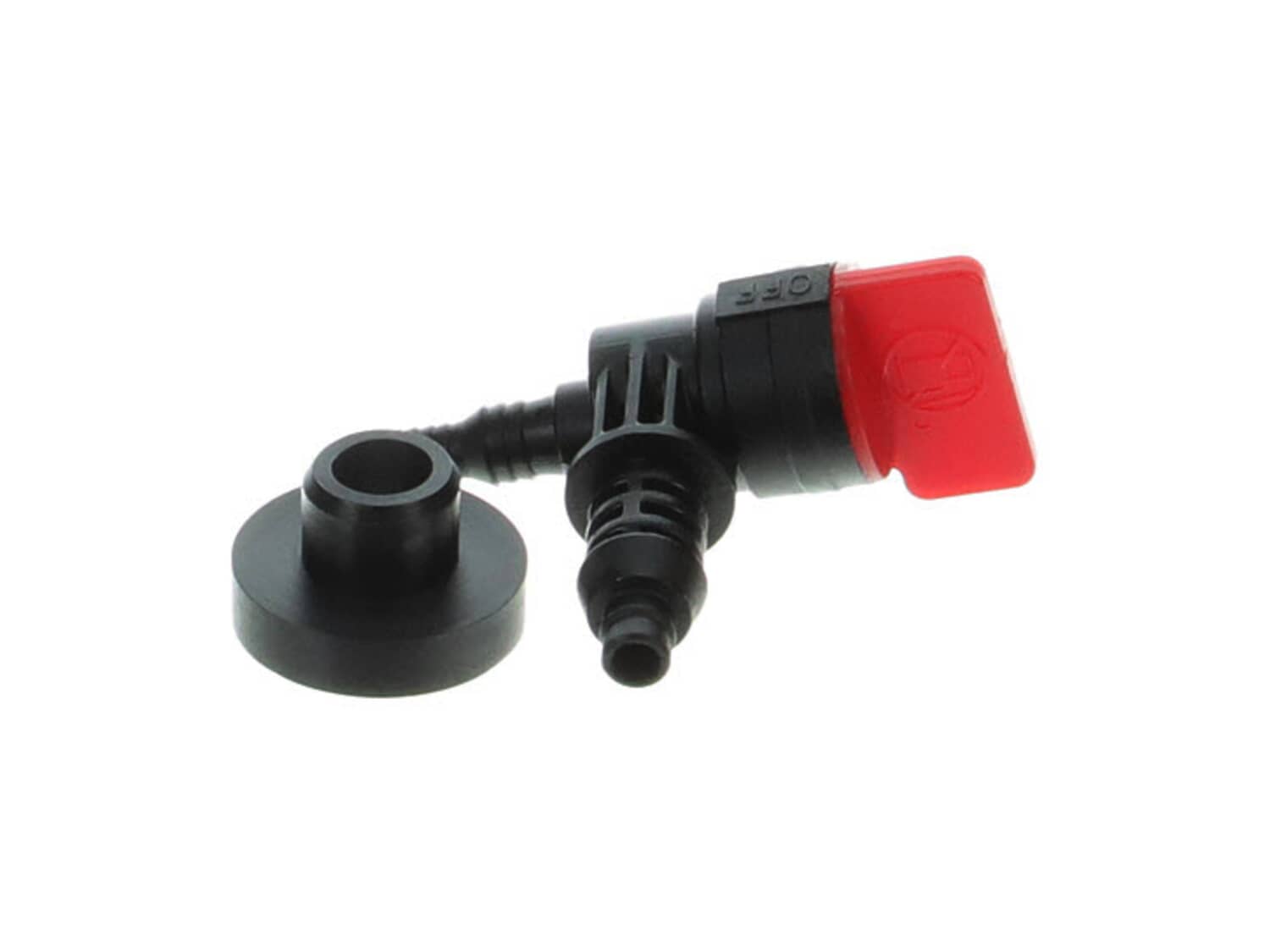

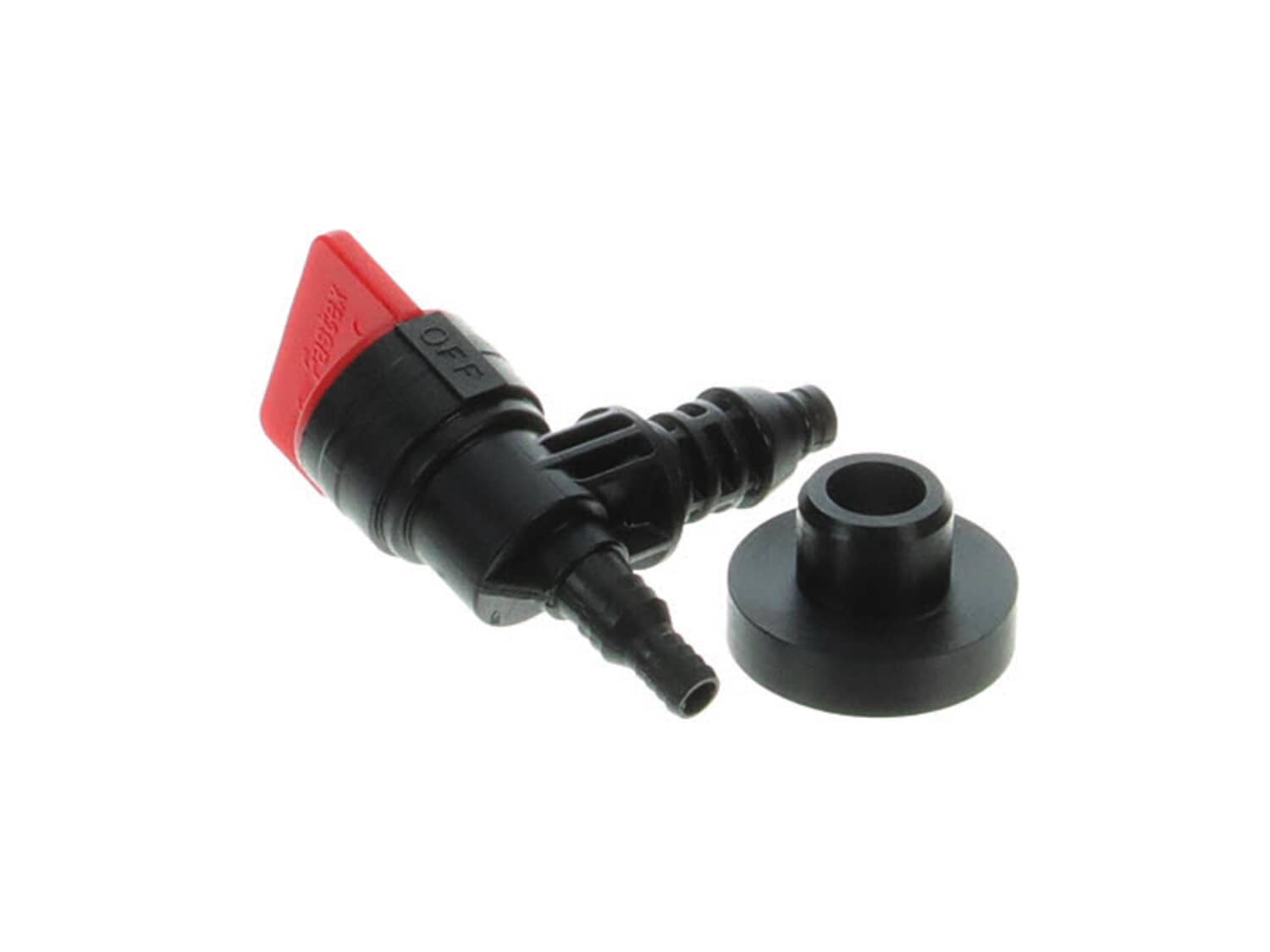

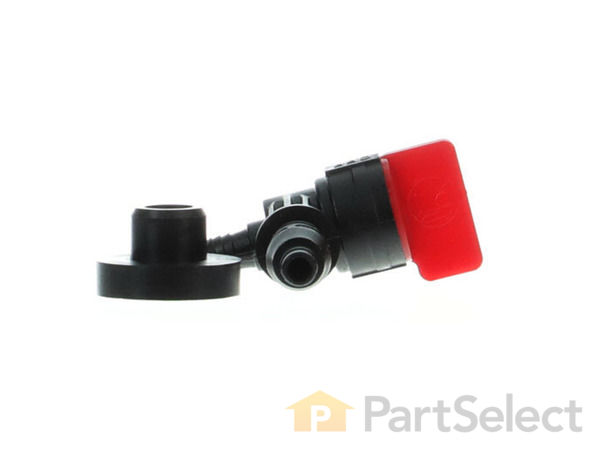

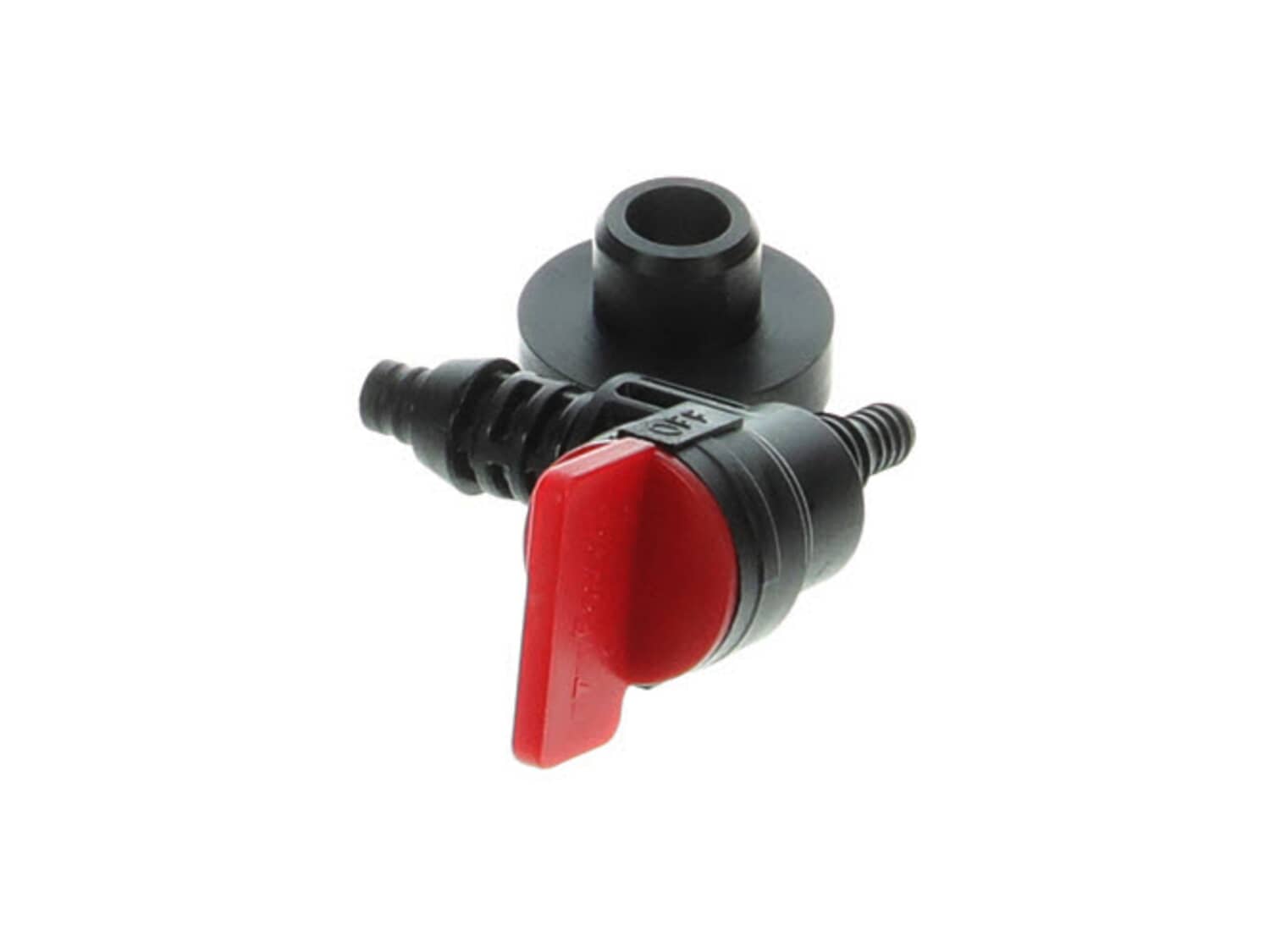

This item has been sourced from the original manufacturer to be used with pressure washers from Briggs & Stratton and Troy-Bilt. The fuel valve attaches to the fuel tank and is used to link the fuel line and to regulate the flow of fuel. This item is sold as an individual replacement part.
Troubleshooting
This part works with the following brands:
Briggs and Stratton
Troy-Bilt
This part works with the following products:
Pressure Washer
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(6 Reviews)
Click to filter by ratings:
5 stars
6
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Valve evaluation
These parts are in contact with detergents, gas and other liquids and need replacement periodically. They are easy to install and work great; no issues with my pressure washer detergent tanks.
Guest - June 17, 2019
Verified Purchase
★★★★★
★★★★★
two way part
This fuel valve is also the valve for soap tanks on a Honda power washer
Guest - June 18, 2019
Verified Purchase
★★★★★
★★★★★
New valves
This part worked great. I use it on two chemical feed tanks because eventually they rotted out from exposure to concrete cleaning solution. Saved me having to purchase a new pressure washer.
Guest - August 26, 2019
Verified Purchase
★★★★★
★★★★★
I use it for the chemical despensor jug
Works great on my Troy Built pressure washer Thanks
Russel - April 20, 2020
Verified Purchase
★★★★★
★★★★★
Perfect fit and easy repair.
Both of my solution valve broke on my pressure washer and had to be replaced. Hours of research and found out that the manufacturer wants you to replace the entire solution bowls, which is very expensive. Researching, found that the solution valves are the same as the fuel valve. ereplacement had them in stock and very good price. Had my pressure washer going within minutes after parts arrived.
Guest - May 26, 2020
Verified Purchase
★★★★★
★★★★★
Power washer working again
Quick delivery and it fit like is was supposed to do so
Guest - June 26, 2021
Verified Purchase
Customer Repair Instructions
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Easy
Less than 15 mins
(11 rated repairs)?
< Prev
1
2
Next >
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Both of the valves on the bottom of the chemical tanks broke off. Even though this part was called a fuel valve, it was the exact replacement part I needed.
I ordered one part since it was really an unknown. When it arrived and I compared it to the broken valve, it was apparent it was the exact replacement. I put some W-D40 on the rubber grommet and the valve and it slipped right in. I put in a little water to check for leaks and there were none.
I ordered the second valve and i
... Read moret came in 5 days. The same procedure was used to replace it and it worked.
I have recommended ereplacement parts to several people I know. I would not hesitate to use them again.
Read less
Did you find this story helpful?
Thank you for voting!
Replacing the valves on the cleaning solution tanks
1. Remove hoses, old, broken valves & fittings
2. Put WD-40 on the new valve stems
3. Insert retainer(s) on solution tanks
4. Insert valves into retainers
5. Replace hoses
Did you find this story helpful?
Thank you for voting!
Missing on/off valve for soap dispensing container
On Troy-Bilt 2700 psi pressure washer model # 020568 I was missing on/off valve for soap dispensing container. I used Briggs & Stratton part # 310333GS. It\'s labeled as kit fuel valve, but it fits in bottom of soap container also. No tools necessary, push in by hand. Works great.
The grommet was not damaged, all I need was the valve. I removed the fuel from the tank. Then I pulled what was left of the valve from the grommet. Then I pressed the new valve into the grommet. Works great and no leaks.
Did you find this story helpful?
Thank you for voting!
Valve from detergent tank on pressure washer was broken.
Valve was press fit into tank through a grommet, and had a slip-fit attachment to discharge tube. I simply pulled the valve out of the tank and off the tube, and replaced it with the new parts. Very simple.
Did you find this story helpful?
Thank you for voting!
The reservoir tank valve kit broke with it being too close to the ground but itGÇÖll also over a decade old and was dry rotted pretty bad.
1. Removed tubing attached to pressure washer.
2. Used drill to remove old rivets holding fluid containers.
3. Removed broken valve from both containers.
4. Clean valve area and containers really good.
5. Sprayed silicone on new rubber grommets and pushed grommets onto containers. Then sprayed silicone onto valve
... Read more stem and carefully push valve hard until valve sits tightly in rubber grommets. Be careful not to wiggle it to much as you can easily brake the stem on the valve.
6. Reattached the containers with new rivets and replaced the old tubing with new tubing that I had on hand.
7. Poured water into containers and checked for leaks. All is good.
NOTE: Really no need to remove containers, but it was easier for me to do it that way because of my back issues. Plus didn\'t want to worry about fuel and oil spilling out.
NOTE: Why replace the fluid containers valve with fuel valve? Because the valve are the same.
