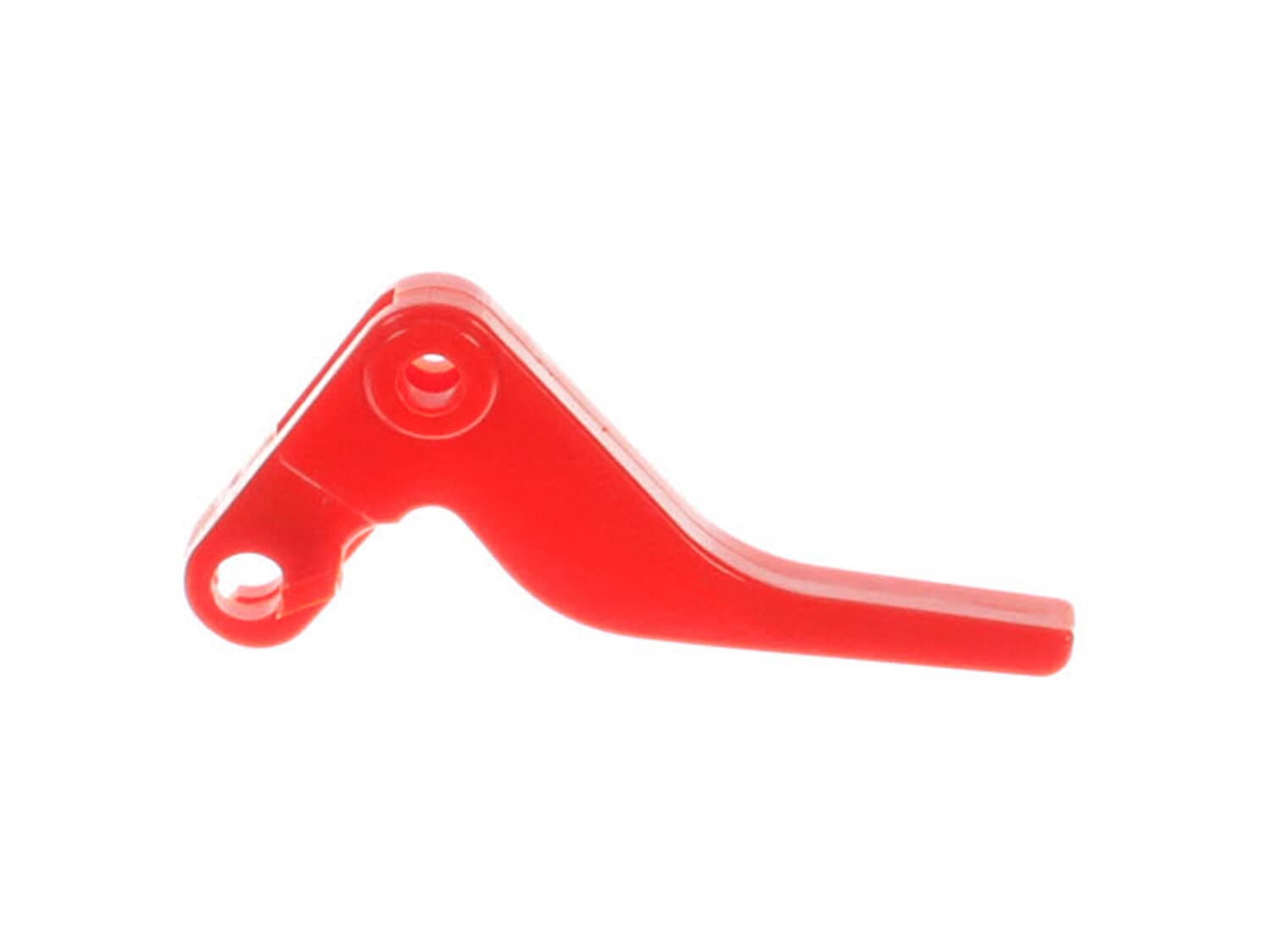

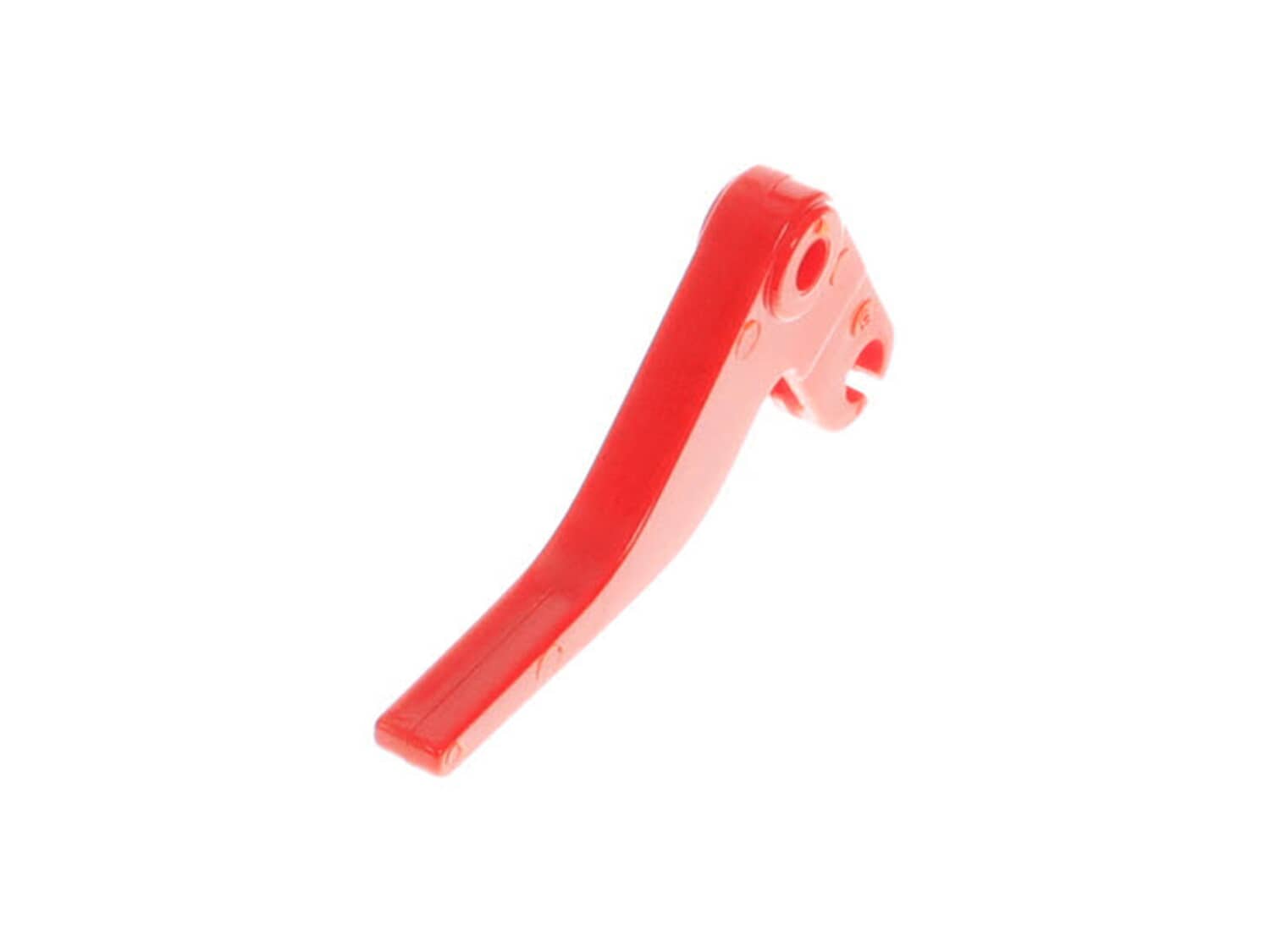

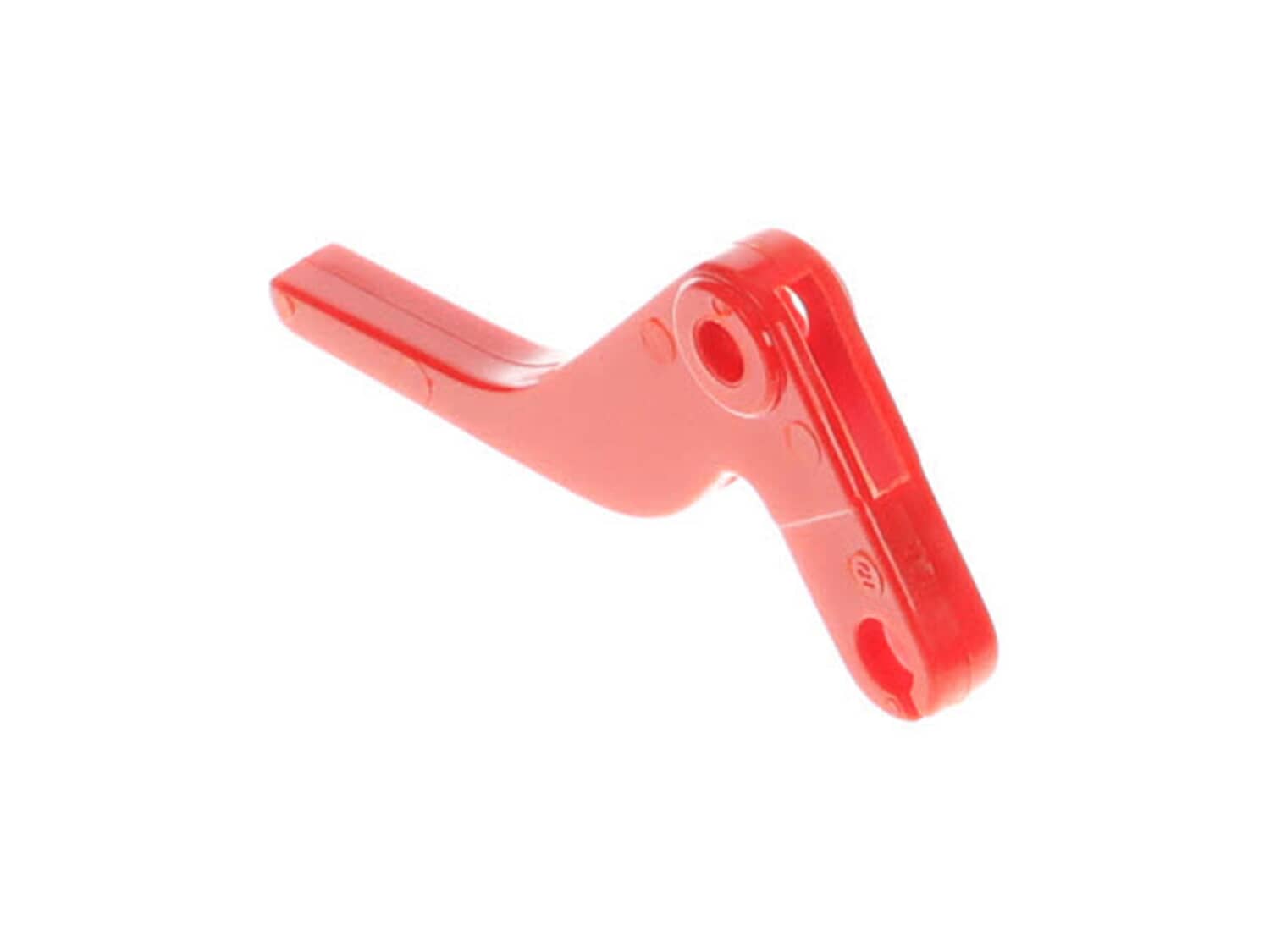

This plastic throttle trigger is a genuine Echo part guaranteed to be compatible with power pruners listed below. This piece attaches to the rear handle via throttle trigger spring. When disassembling handle and triggers, take note of positioning of all related parts. Be sure to use caution when removing trigger in order to keep control of the spring. Sold individually. Commonly purchased with: • Throttle Trigger Spring, part # 17804322562 • Throttle Control Lockout, part # 17809022560
Remove the screws from the handle housing and separate. Make note on where the spring is placed. Remove cable from broken trigger and install it in the new one. Place the trigger. Then assemble the switch housing.
Remove screws from handle.
Pay careful attention when separating the two halves of the handle. Try to establish where the springs are, if possible. Springs pop out and the diagram does not show the spring placement well at all. It took a little bit of figuring to put it back together. And it takes two people to put it back toget
... Read moreher because of the springs. The duct tape is used to hold one half of the handle in place on the machine.
Read less
Did you find this story helpful?
Thank you for voting!
Plastic trigger on Echo Trimmer broke after possible 30 years
Took screws out of trigger handle. Took upper half of trigger handle off. Put in new trigger after taking out last piece of the old broken in half one. Put new spring in. Look close to see which way of two ways in can in. Only one way to have it put the trigger on lowest speed.
Remove the screws from the handle
Take note on how the throttle and spring are installed
Remove both parts
Install them as the old ones were
Screw the handle together
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8903693
Manufacturer Part Number: 17801022560
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
