Part Location Diagram of 6284796 Powermatic Worm Gear
See part A-49 in the diagram

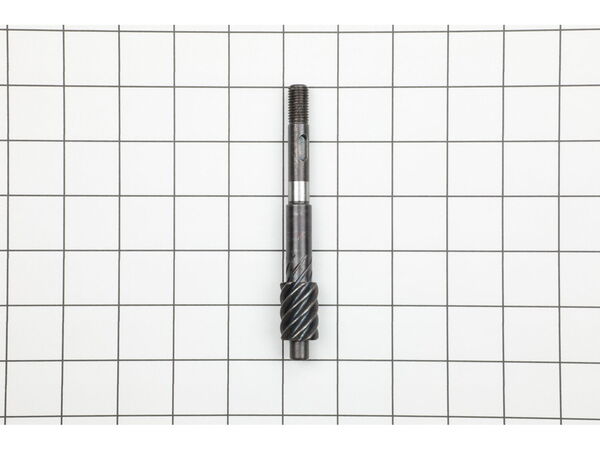

( Grid squares measure 1x1 inch )

Worm Gear 6284796

Manufactured by:
Powermatic
ERP Number:
ERP10459795
Part Number:
6284796
Original Equipment Manufacturer ?
  Works with your model  15HH!
$28.98
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?
  Works with your model   15HH!

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Powermatic
This part works with the following products:
  • Planer Jointer

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

handcrank on height adjustment worm gear shaft broken from recent move up stairs

Peter from WASHINGTON, Pennsylvania

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
Parts Used:
6284796
1. removed worm gear housing
2. removed bearing
3. removed hand wheel from broken end of shaft
4. installed new shaft worm gear
5. installed bearing and snap ring
6. installed hand wheel
7. mounted gear housing on planer

Your girl in tech support was very helpful in comparing parts. I wante d to order this part using the jet part # but it was not available. I found what I thought was an identical part from Powermatic. Your girl compared the parts and thought they were the same. Well the are and in stock. I don\'t have the girl\'s name. She did an excellent job.
