See part 28 in the diagram
( Grid squares measure 1x1 inch )

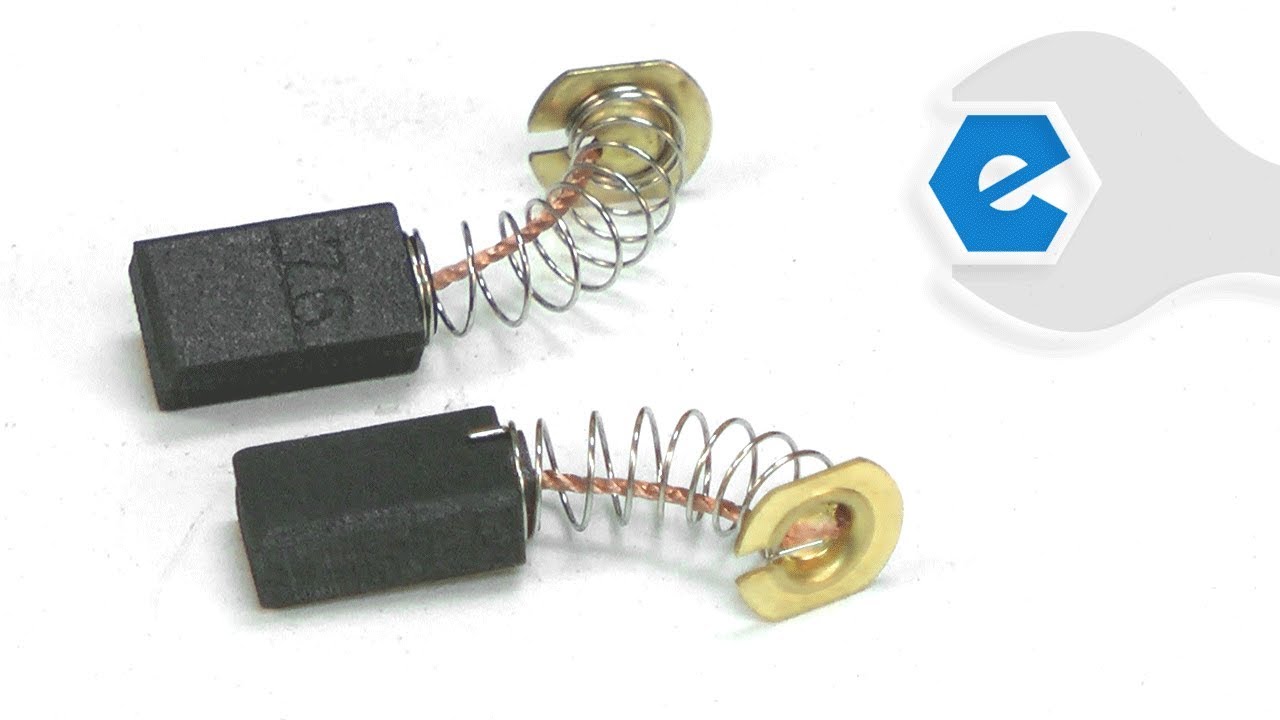

Carbon Brush Set CB76
Manufactured by:
Makita
ERP Number: ERP10156670
Part Number: CB76
?
JV2000 !
Delivers in 3-5 Business Days!
JV2000 !
Frequently Purchased Together
?
Troubleshooting
This part works with the following brands:
This part works with the following products:
Part# CB76 replaces these:
643050-8, CB-76,
Videos For installing this part.
?
★
Customer Part Reviews
?
Sort by:
Highest Rating
Most Recent
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
working like new
arrived very fast thank you bill
Iglobal - September 21, 2019
Verified Purchase
Another good purchase
Prompt shipment, considering the Covid epidemic. Correct part received at a reasonable price. Thanks!
Guest - October 30, 2020
Verified Purchase
worked
no problem, worked perfect
Dennis - April 2, 2021
Verified Purchase
Works as advertised
Dropped right in, grinder works as it should.
Guest - June 19, 2021
Verified Purchase
Great part
New. Ease to replace. Tools working again!
Guest - July 13, 2022
Verified Purchase
Great communication, easy ordering, fast shipping.
They even follow up with you. Outstanding service. The carbon brush set received was a genuine Makita part and got me going again in no time at all.
Stephen - March 2, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Ask a question
We're sorry, but our Q&A experts are temporarily unavailable.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Does this fit my product?
Customer Repair Instructions
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Sort by:
Most Helpful
Most Recent
Sorry, we couldn't find any existing installation instruction that matched.
Would not run
Gary from Ypsilanti, Michigan
2 of 2 people
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
Removed the brush caps with a screwdriver, then removed the old brushes, and installed the new brushes and replaced the brush caps. Works great. THANKS.
Bad bearing and gear
Martin from Stoughton, Wisconsin
1 person
found this instruction helpful.
A Bit Difficult
30 - 60 mins
Screw drivers
Replaced defective parts installed new brushes and grease
Bad brushes
Benjy from Randolph, Kansas
1 person
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
Remove old brush caps used air hose to blow the dirt out of it
Brushes wore out
Ignacio from tucson, Arizona
1 person
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
Remove the brush caps
Brush set worn, Switch intermitatn contact
John from SALEM, Wisconsin
0 of 1 people
found this instruction helpful.
Easy
15 - 30 mins
Pliers, Screw drivers
Removed the cover, disconnected the wires. Removed screw retaining the switch. Replaced the switch, re-attached switch wires, and re-installed the cover. Removed brush caps and replaced the brush set.
Planer would not start or run.
Dwayne from Harriman, Tennessee
0 of 1 people
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
1 Removed brush cap
Planer just stopped working
Wayne from BOCA RATON, Florida
0 of 1 people
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
I suspected the switch had gone bad,so I installed the new switch first.Nope,still didn\'t run.Installed the brushes and she runs like a new one.
Bought a used Makita planer at estate sale. It worked but was in bad shape.
Mark from Albuquerque, New Mexico
0 of 1 people
found this instruction helpful.
Easy
15 - 30 mins
Screw drivers
I simply removed the worn parts and used the new ones as replacements. only tools used were a phillips screwdriver. Just be sure to note how the wires are routed in the case. I did install new ring terminals on the new cord, to insure a secure connection to the switch.
Planer would not run, my brother who owned the tool told me brushes were bad before he passed and I inherited it
David from Battle Creek, Michigan
0 of 1 people
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
Brush cap broken, needed new brushes
Ben from Beach, North Dakota
0 of 1 people
found this instruction helpful.
Easy
Less than 15 mins
Screw drivers
Removed broken cap and worn out brushes and installed new.
Model Cross Reference
This part works with the following models:
ERP Number: ERP10156670 CB76
Brand
Model Number
Description
Makita
1900B
Planer Jointer
- Planer
Makita
1900BW
Planer Jointer
- 3-1/4 Inch Planer
Makita
1902
Planer Jointer
- Planer
Makita
3700B
Laminate Trimmer
- Trimmer
Makita
3702B
Laminate Trimmer
- Laminate Trimmer
Makita
3705
Laminate Trimmer
- Trimmer
Makita
4301BV
Jig Saw
- Jig Saw
Makita
6013BRK
Drill
- Drill
Makita
6300LR
Electric Drill
- Drill
Makita
6301LR
Electric Drill
- Electric Drill
Makita
6905B
Impact Driver
- Impact Wrench
Makita
9030
Sander Polisher
- Belt Sander
Makita
906H
Die Grinder
- Die Grinder
Makita
9501B
Angle Grinder
- Grinder
Makita
9505BH
Angle Grinder
- Grinder
Makita
BO6010
Sander
- Sander
Makita
DA3000
Drill
- Drill
Makita
DA3000R
Electric Drill
- Drill
Makita
JN1600
Nibbler & Shears
- Nibbler
Makita
JS1600
Nibbler & Shears
- Metal Shear
Makita
JS1660
Nibbler & Shears
- Shear
Makita
JS1670
Nibbler & Shears
- Metal Shear
Makita
JV2000
Saw
- Saw
Makita
N1900B
Planer Jointer
- Planer
Makita
N1900BK
Planer Jointer
- Planer
Makita
N1900BKX
Planer Jointer
- Planer
Makita
N1923B
Planer Jointer
- 3-1/4" Power Planer
✖
