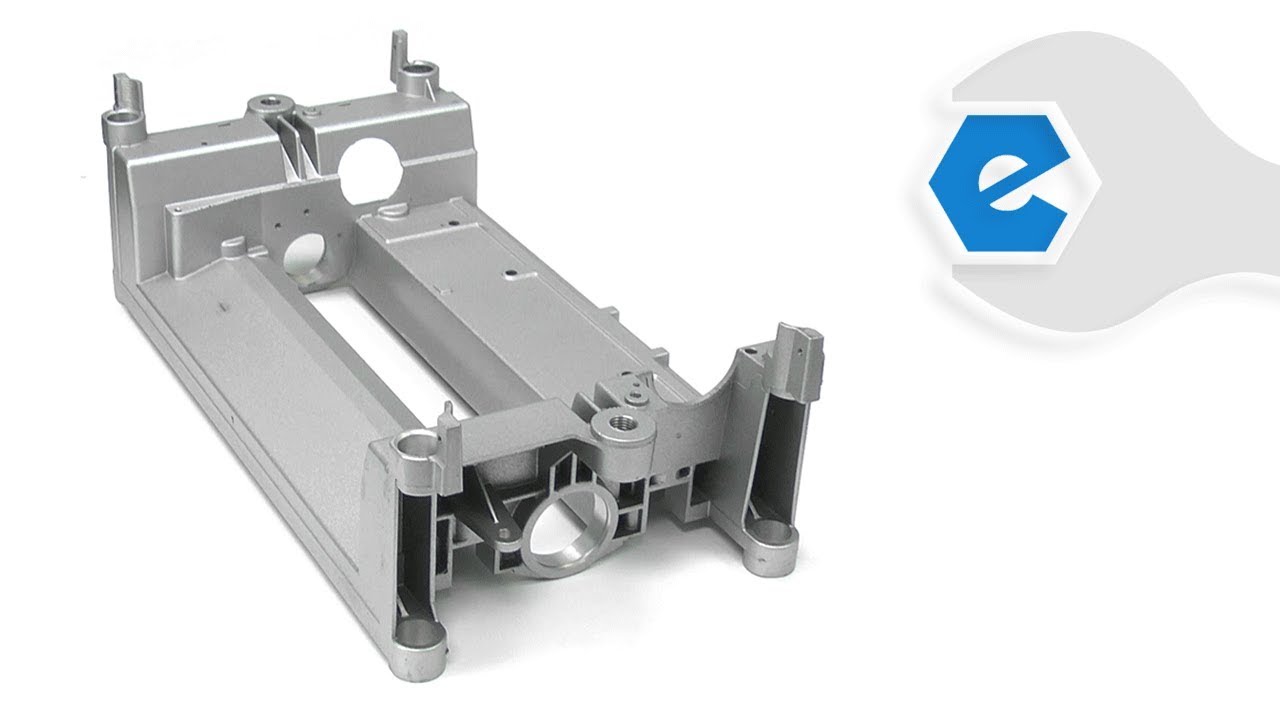

This is an authentic DeWalt replacement part, sourced from the original manufacturer for use with planers. The special head is commonly used as the main bracket that the cutting head assembly is mounted to. This head is available as an individual replacement part, please see model diagram for associative parts.
Troubleshooting
This part works with the following brands:
DeWALT
This part works with the following products:
Planer Jointer
Videos For installing this part.
?
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Planer head broke because a guide rod rusted. Planer head had to be disassembled to replace. It took days to fix because the planer blade screws were also seized up and had to be hammered off. After that it was a pretty standard disassembly...
Did you find this story helpful?
Thank you for voting!
Unable to raise or lower cutting head, guide rods rusted and corroded
Took off external covers and tried to loosen cutter head collars with liquid wrench and fine emery cloth. while attempting to move head while tapping gently on guide collars, and while applying pressure with the adjustment handle, head cracked.
New head was ordered from eReplacement.We then used the diagrams provided online and beg
... Read morean the process of taking the head assembly apart.
Several screws with Phillips heads were stripped and had to be drilled out.We left the threaded portions in the old head and purchased new screws with allen heads to replace them in the new head. Cleaned the adjustment rods with fine emery cloth and removed all visible corrosion. Applied long lasting aluminum lubricant to guides.
New head arrived four days after order was placed and in about two hours we were able to complete reassembly.
The diagrams were incredibly helpful
The next day I planed 200 linear feet of 2x2 cypress rails on all four sides and about 80 linear feet of 2x4 cypress on all four sides without a problem.
Thanks to eReplacement, I was able to rebuild my planer for less than $150.00 rather than buy a new one for over $500.00
Read less
Did you find this story helpful?
Thank you for voting!
head was craked would not feed not feeding caused me to look at cuting blads i saw the break
removed old head removed all parts on the head cleaned and greased all parts reassembled planer worked like new when putting the head on the threaded rods to raise and lower the head i held a knife at the top of the rod to start the head on so the other side would start first ran it down checked the level until it was right
